PLATINUM TOOLS TP500C LANSEEKER CABLE TESTER. CLAMSHELL.
Mfg Part Number: TP500C , Item #: 5217950
Image may not reflect the actual item.
Price: $85.84
Quantity:
More to Come
Last Updated: Jan 26, 2026
No Sales Tax except these states
, PO and Wire.

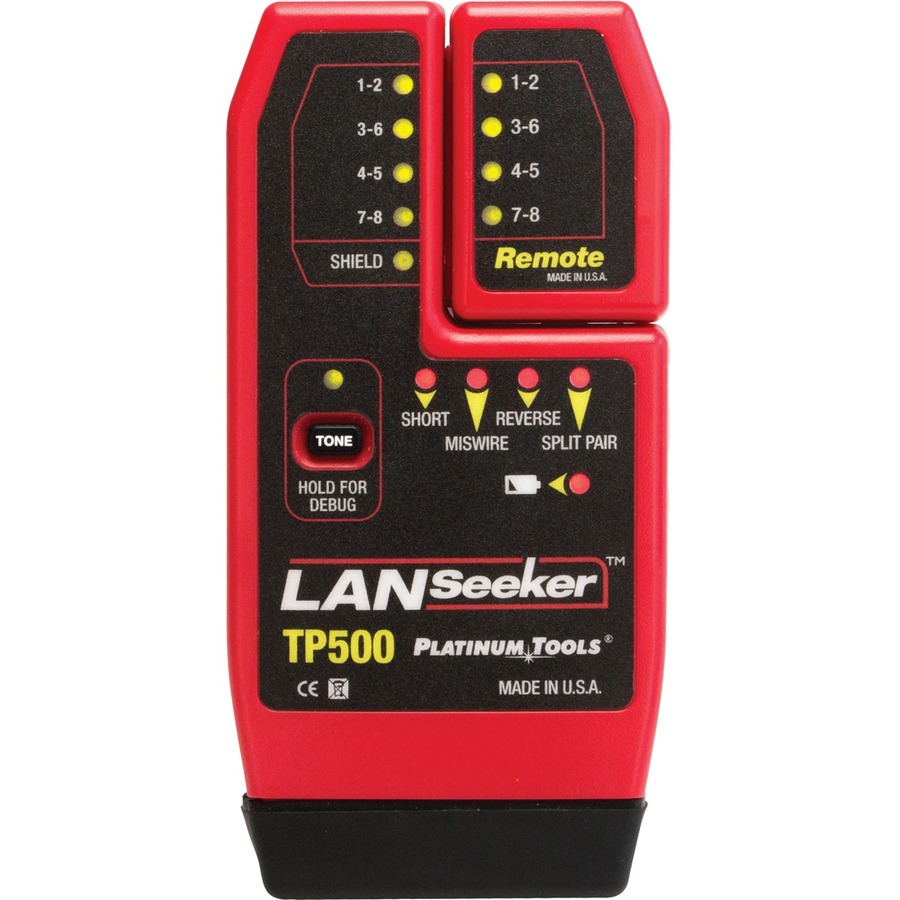

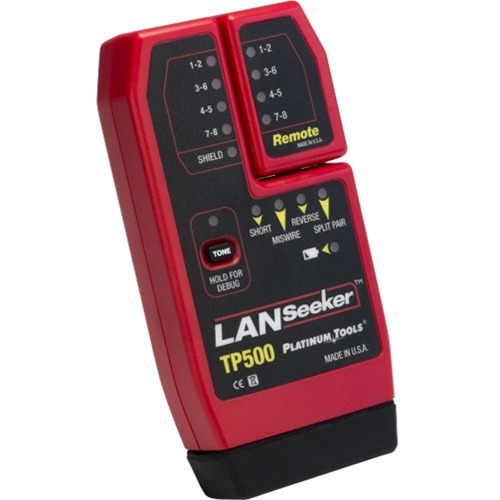

The LANSeeker™ is a fast, rugged cable tester and tone generator in one unit. It displays cable test results using LED indicators on the main and remote unit. An easy-to-use professional grade tool, the LANSeeker is a must have for residential and commercial cable installers. When the unit senses a connection between the main and remote unit, the battery-saving auto-on feature initiates test results within 2 seconds. The tester automatically powers off within 5 seconds of the cable being disconnected. LANSeeker tests for shorts, opens, miswires, reversals, and split pairs and can display connection and fault information on a pair-by-pair basis. It also generates audio tones for use with tone tracers on all pairs.
- Displays cable test results on main and remote units in less than 2 seconds
- Immediately detects shorts by just plugging in one end of a cable to the tester
- Identifies shorts, opens, miswires, reversed and split pairs
- No on/off switch, automatically starts test when a connection is sensed between main and remote unit
- Debug mode diagnoses and displays faults one pair at a time
- Includes tone generator

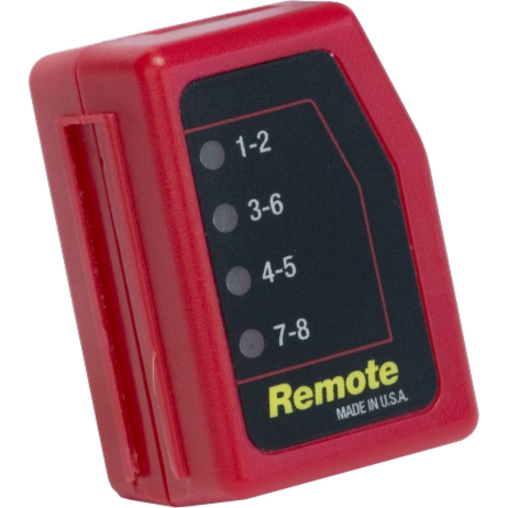

- Self-stored remote
- Made in the USA
Main Specification
| General Information | |
| Manufacturer | NSI Industries |
| Manufacturer Part Number | TP500C |
| Manufacturer Website Address | http://www.platinumtools.com |
| Brand Name | Platinum Tools |
| Product Line | LANSeeker |
| Product Model | TP500C |
| Product Name | LANSeeker Cable Tester |
| Packaged Quantity | 1 |
| Product Type | Cable Analyzer |
| Technical Information | |
| Device Function | Cable Signal Testing |
| Device Function | Cable Testing |
| Device Function | Network Analyzer |
| Maximum Length Measurement | 1000.66 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Size Supported | 9V |
| Battery Included | Yes |
| Battery Life | 20 Hour |
| Battery Chemistry | Alkaline |
| Physical Characteristics | |
| Height | 1.2" |
| Width | 2.8" |
| Depth | 5.7" |
| Weight (Approximate) | 5.71 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Call for Details |
