VERTIV

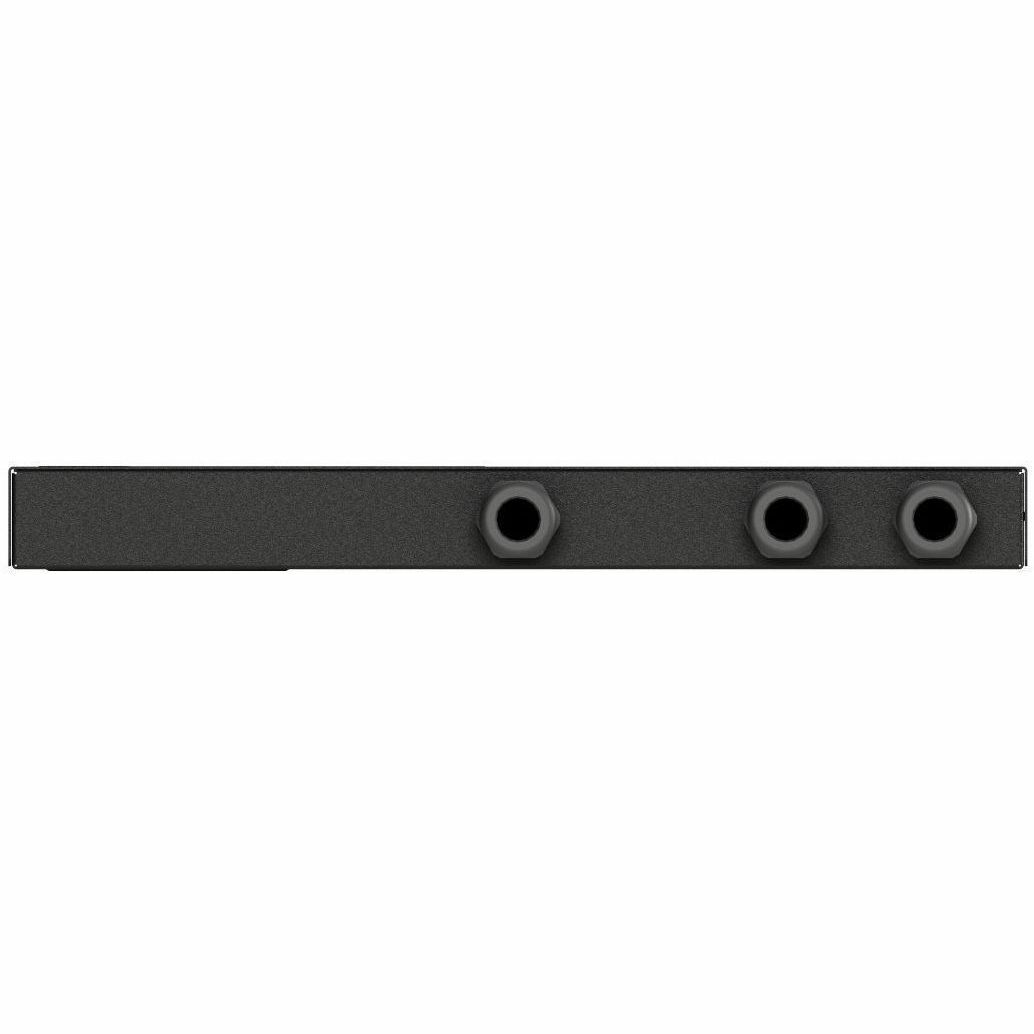

VERTIV VA4U31A0 RPDU, RACK TRANSFER SWITCH MONITORED UNIT LEVEL, 30/32A, 200-240V, 7.3KW, HORIZO
Mfg Part Number: VA4U31A0 , Item #: 5176449
Image may not reflect the actual item.
Price: $1,534.47
Quantity:
More to Come
Last Updated: Aug 07, 2025
No Sales Tax except these states
, PO and Wire.
Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.
Benefits
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.
- Every unit is 100% tested for reliability and functionality.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | VA4U31A0 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | AU05M1R0-11PS63-3PS6PS6B411-D |
| Product Name | rPDU AU05M1R0-11PS63-3PS6PS6B411-D 1-Outlet PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| PDU Type | Auto Transfer Switch |
| Plug/Connector Type | IEC 60309 1P+N+E |
| Plug/Connector Detail | 2 x IEC 60309 1P+N+E |
| Receptacle Type | IEC 2P+E |
| Receptacle Detail | 1 x IEC 2P+E |
| Features | LCD Display |
| Features | Touch Screen Display |
| Load Capacity (Watt) | 7300 W |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 7300 W |
| Input Current | 20 A |
| Input Frequency | 60 Hz |
| Management | |
| Management |
|
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft |
| Height | 1.7" |
| Width | 17" |
| Depth | 18" |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
