NZXT CS CM-H72FW-01 H7 FLOW (2024) White MidTower Retail
Mfg Part Number: CM-H72FW-01 , Item #: 5169517
Image may not reflect the actual item.
Price: $258.30
Quantity:
In Stock: 7
Last Updated: Oct 28, 2025
No Sales Tax except these states
, PO and Wire.

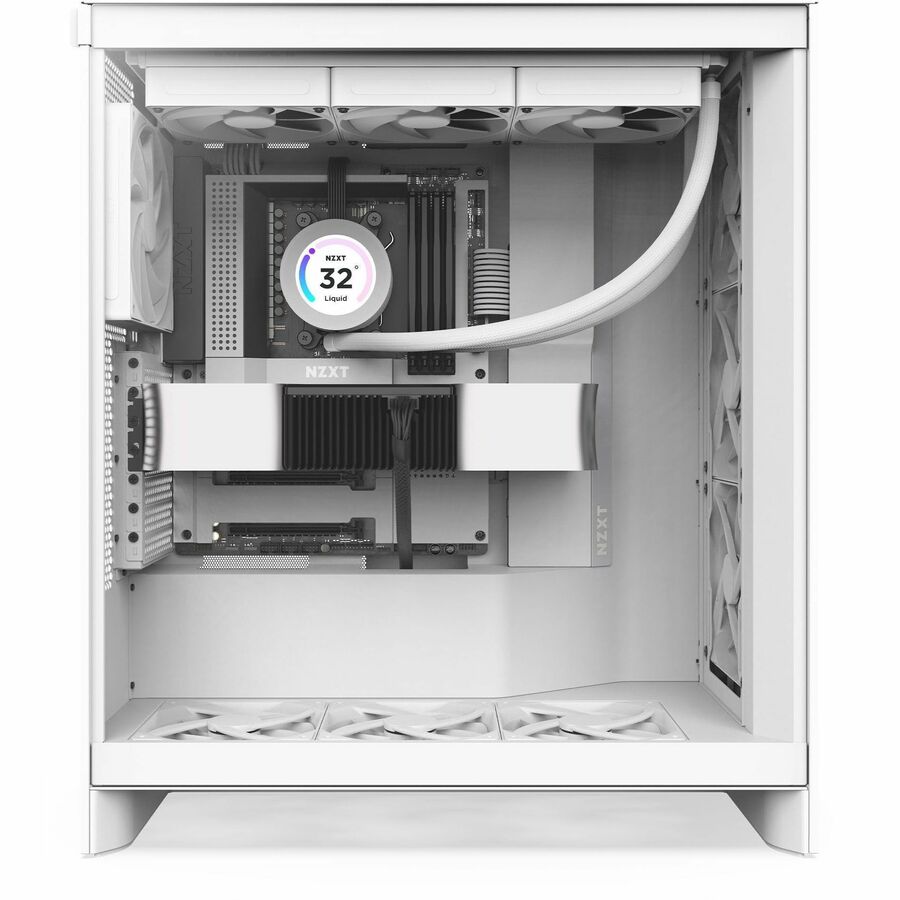

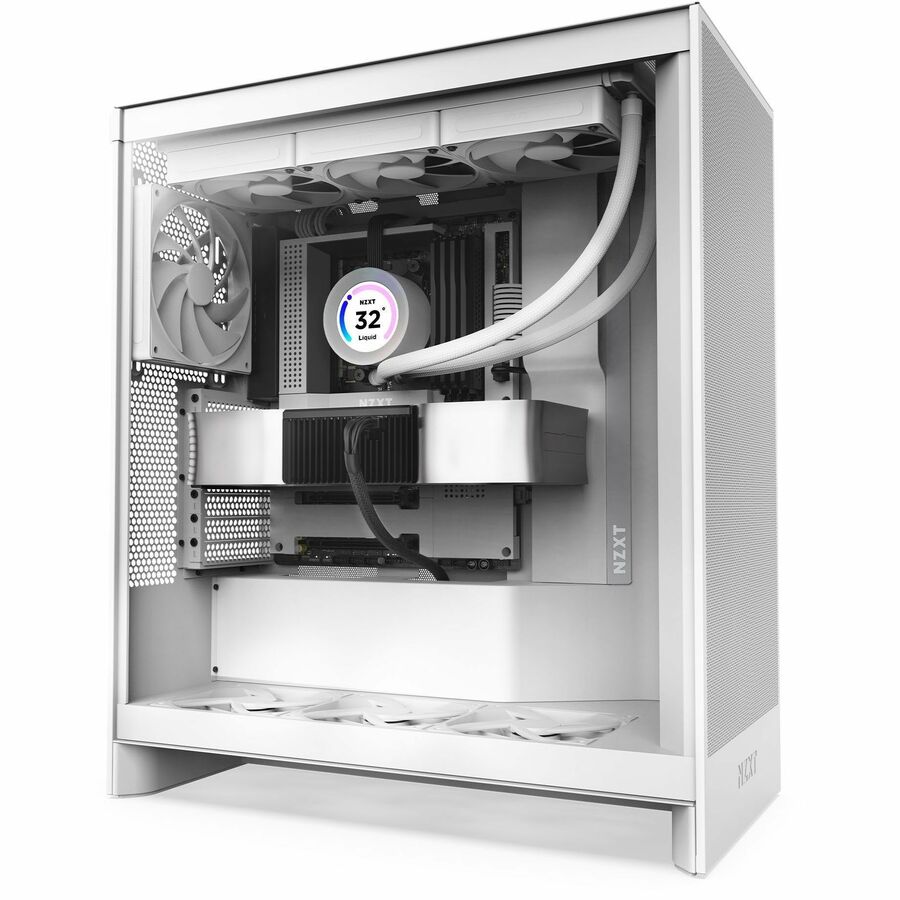

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

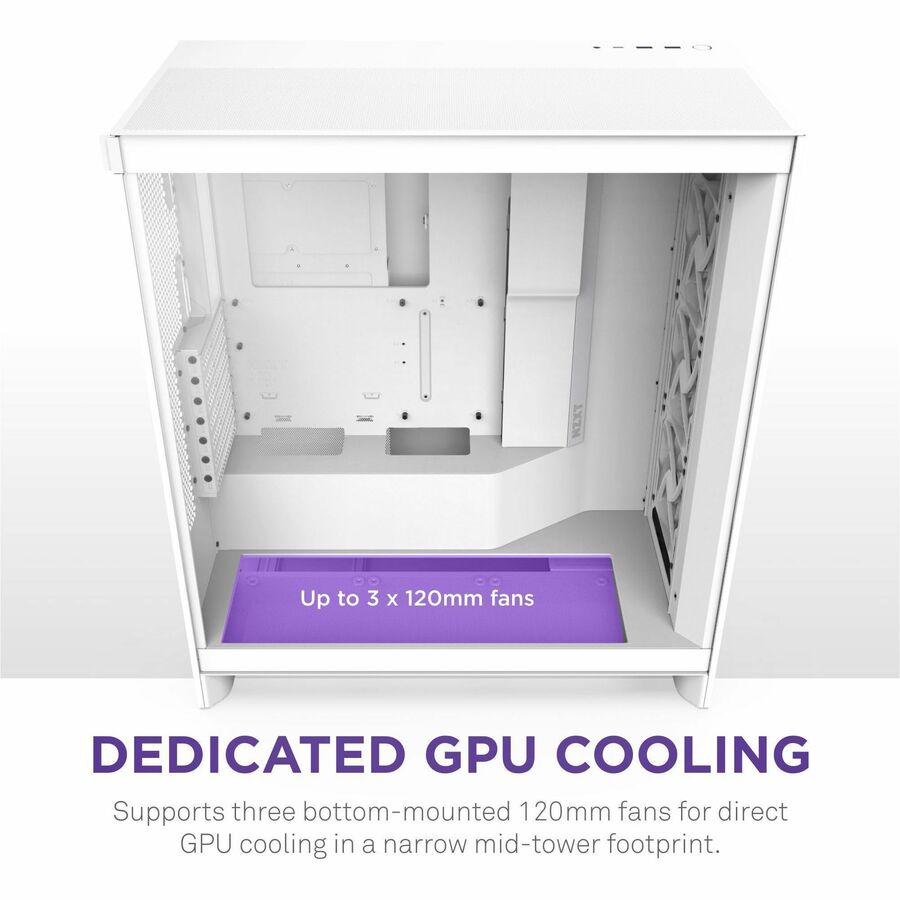

- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.

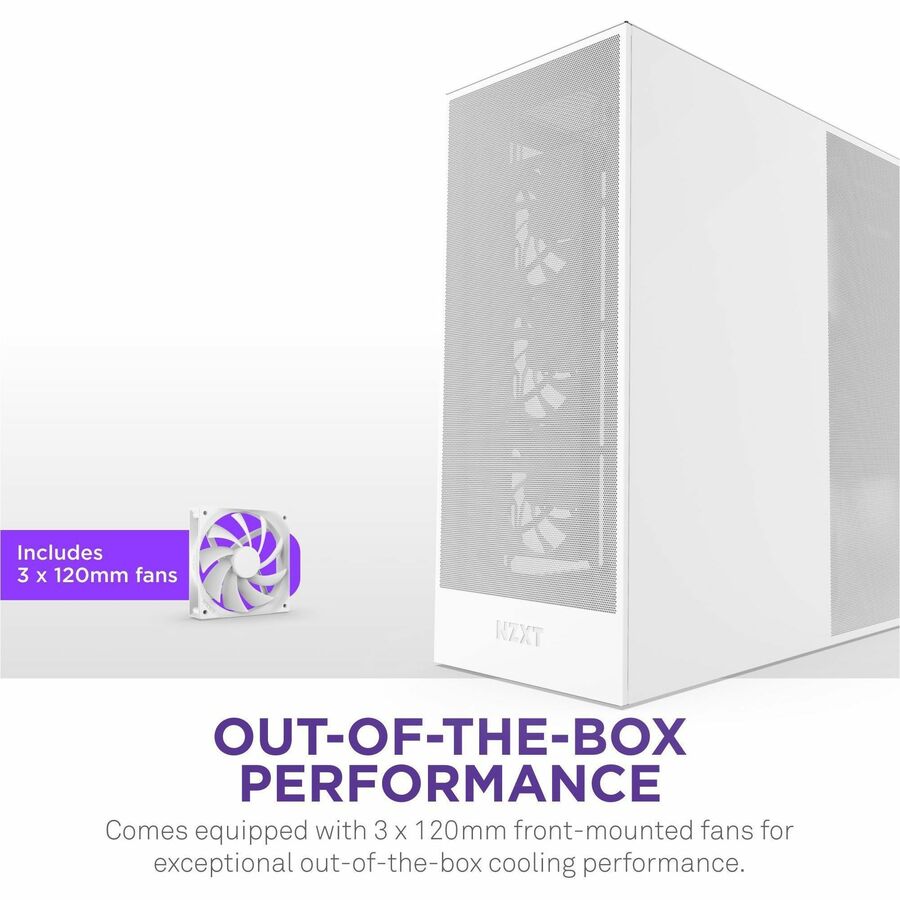

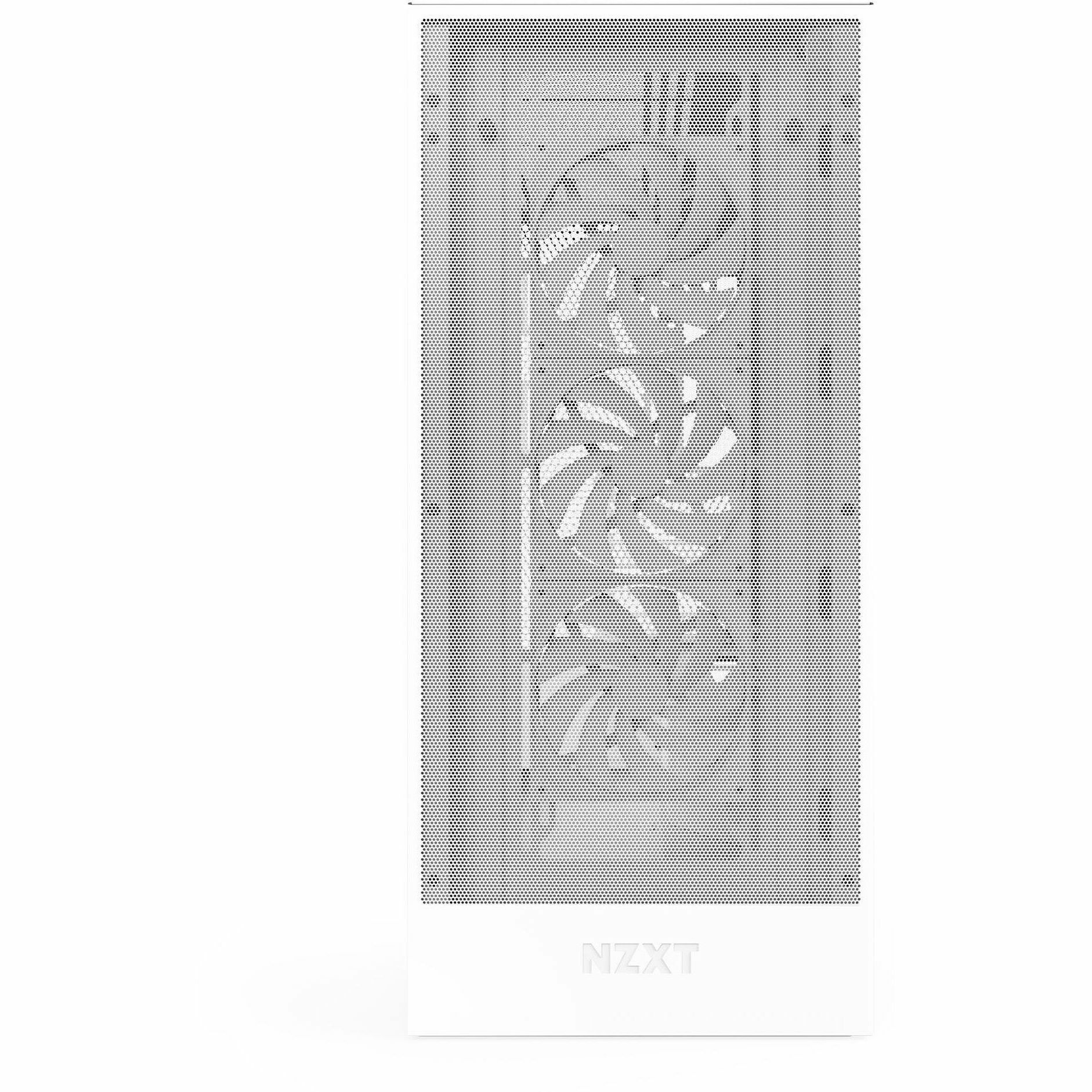

- Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.

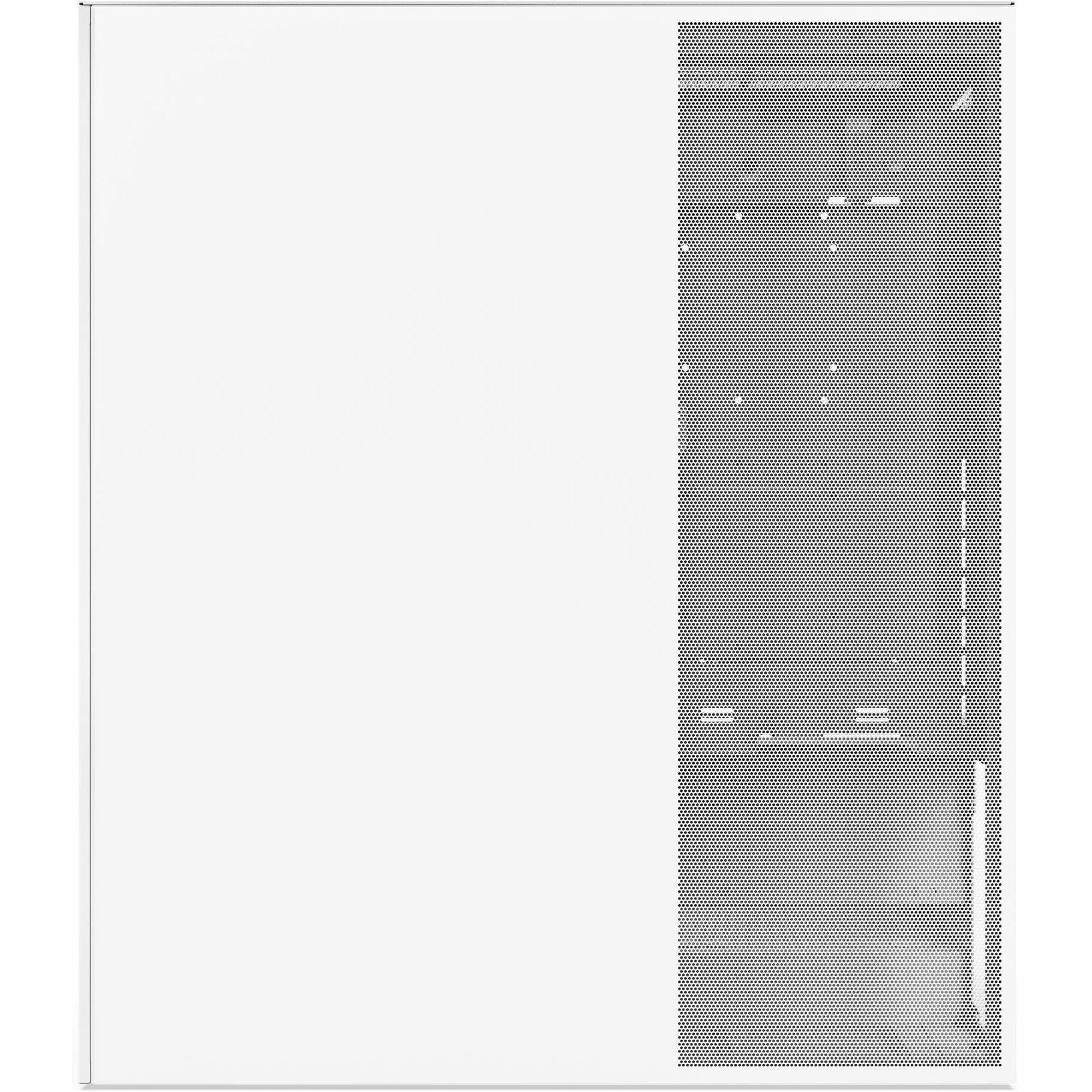

- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.

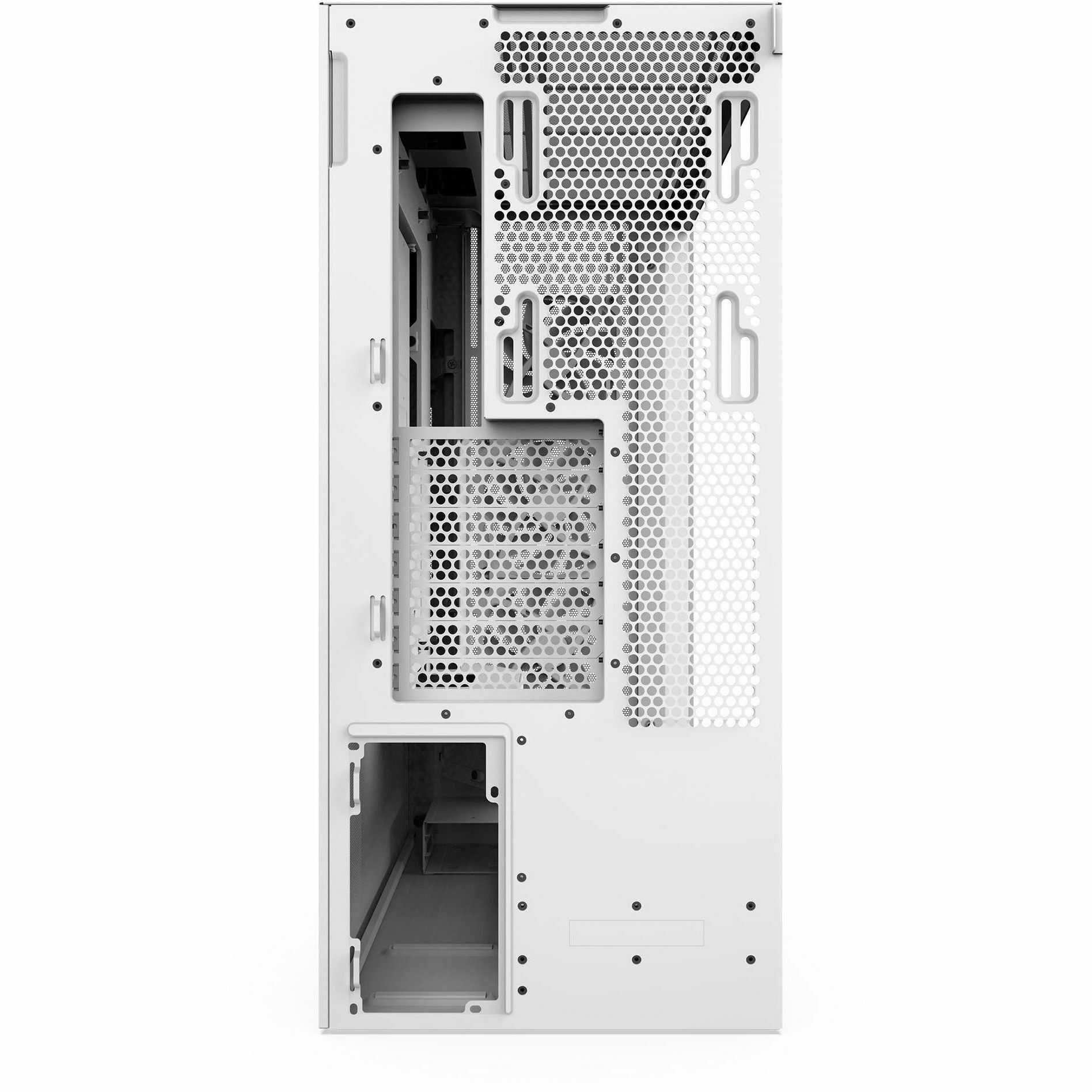

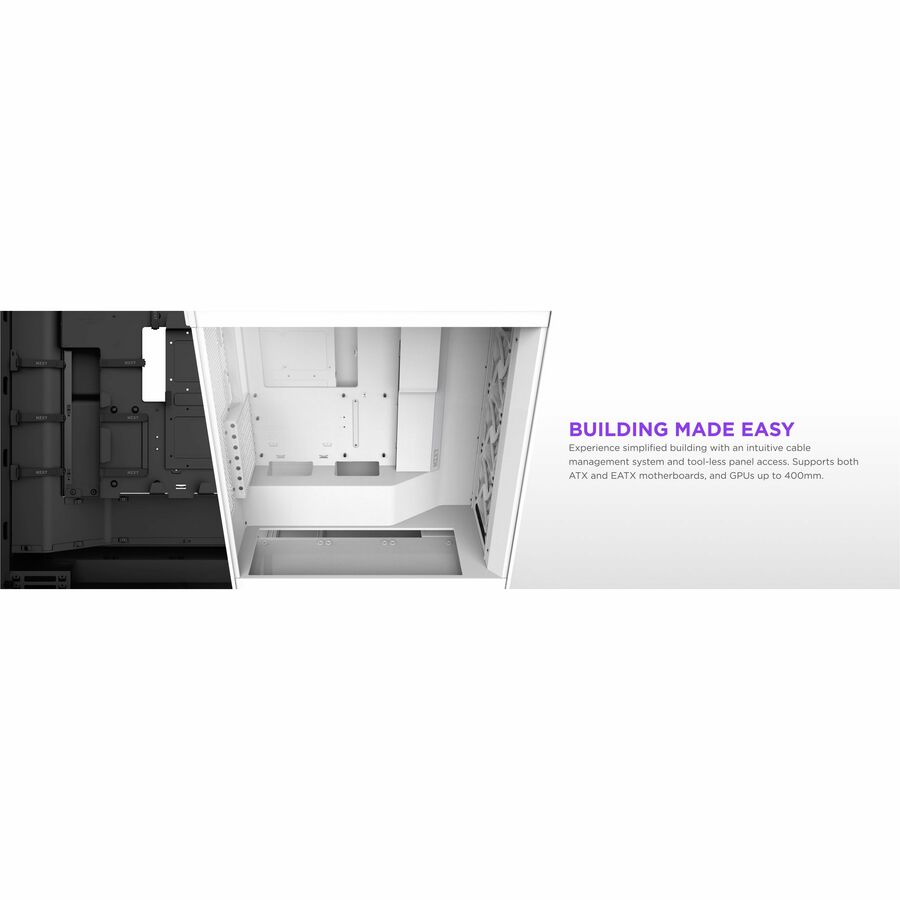

- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

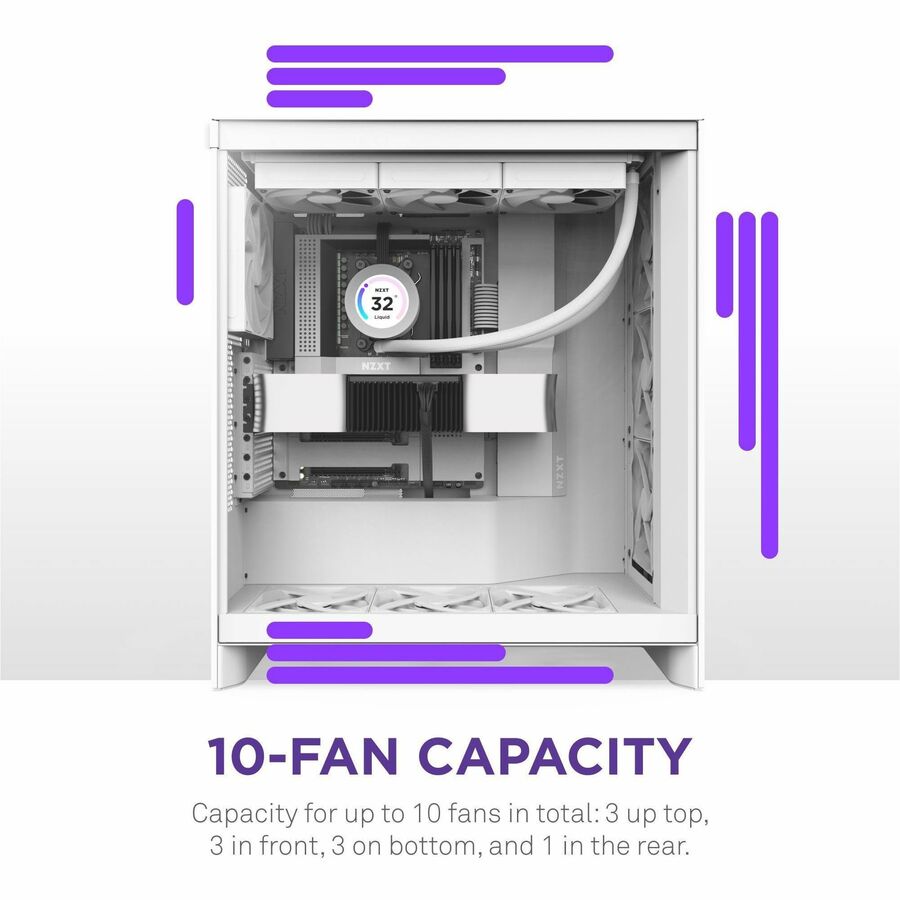

- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

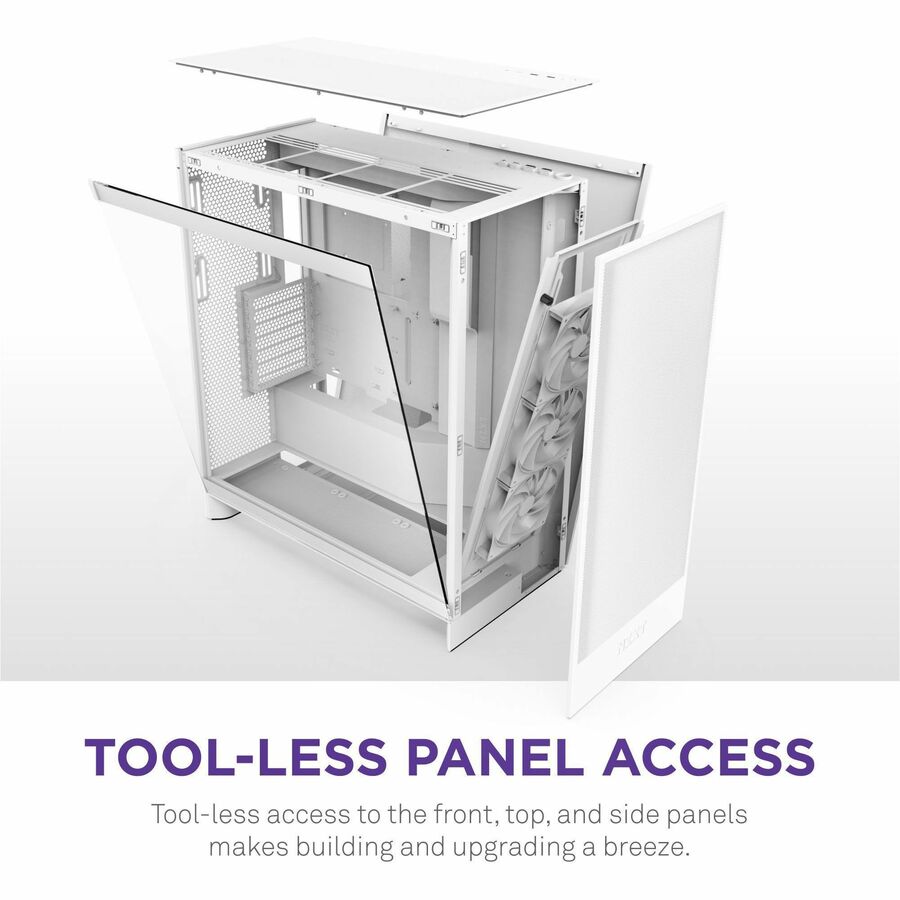

- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Main Specification
| General Information | |
| Manufacturer | NZXT Corporation |
| Manufacturer Part Number | CM-H72FW-01 |
| Manufacturer Website Address | http://www.nzxt.com |
| Brand Name | NZXT |
| Product Line | H7 Flow |
| Product Model | CM-H72FW-01 |
| Product Name | H7 Flow Mid-Tower ATX Airflow Case |
| Packaged Quantity | 1 |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Micro ATX |
| Motherboard Supported | Mini ITX |
| Motherboard Supported | EATX |
| Motherboard Supported | ATX |
| Number of Fans Supported | 7 |
| Number of Fans Installed | 3 |
| Fan Size Supported | 4.72" |
| Installed Fan Size | 4.72" |
| Features | Cable Management |
| Features | Dust Filter |
| Bays | |
| Number of Internal 3.5" Bays | 2 |
| Number of Internal 2.5" Bays | 4 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| USB Port Details | 1 x USB 3.2 (Gen 2) Type C |
| USB Port Details | 2 x USB 3.2 Gen 1 Type-A |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Matte White |
| Product Material | Galvanized Cold Rolled Steel (SGCC) |
| Product Material | Tempered Glass |
| Cooler Type | Fan Cooler |
| Form Factor | Mid-tower |
| Maximum CPU Cooler Height | 7.28" |
| Maximum PSU Length | 7.87" |
| Maximum GPU Length | 16.14" |
| Height | 21.4" |
| Width | 9.6" |
| Depth | 18.4" |
| Weight (Approximate) | 24.54 lb |
