NEC DD-EA272U 27IN 4K UHD 3480X2160 WIDESCRN DESKTOP MNTR W/ ULTRA-NARROW BEZEL
Mfg Part Number: DD-EA272U , Item #: 5166874
Image may not reflect the actual item.
Price: $720.19
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 20, 2025
No Sales Tax except these states
, PO and Wire.

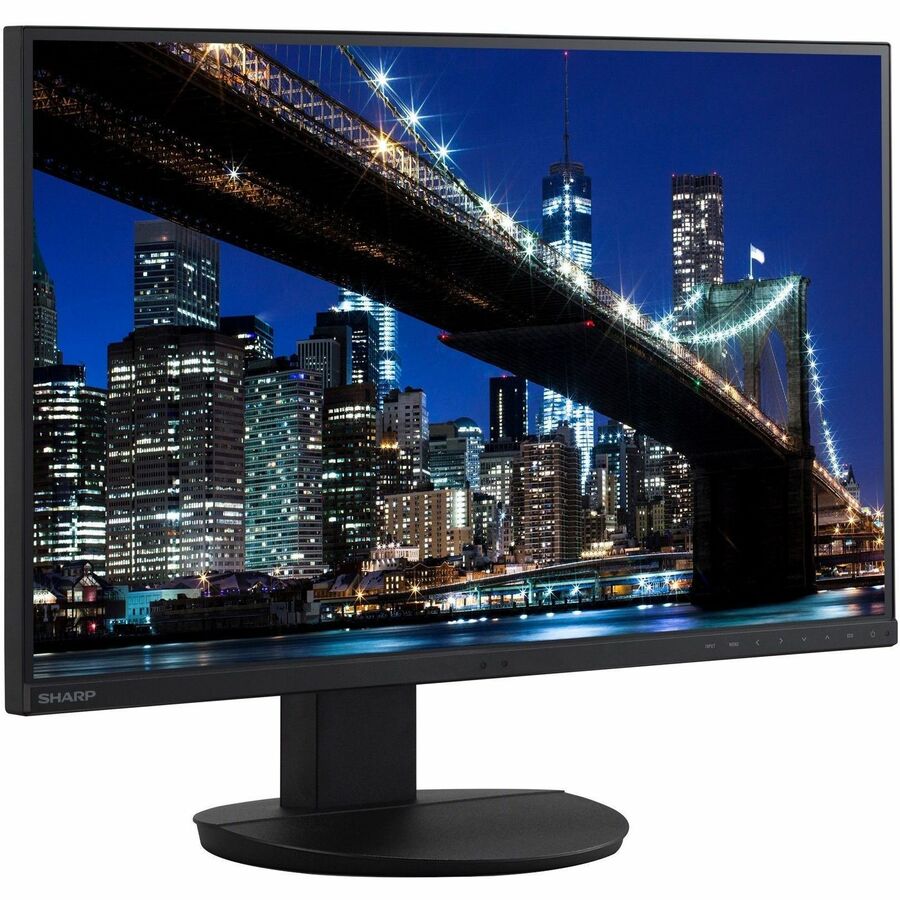

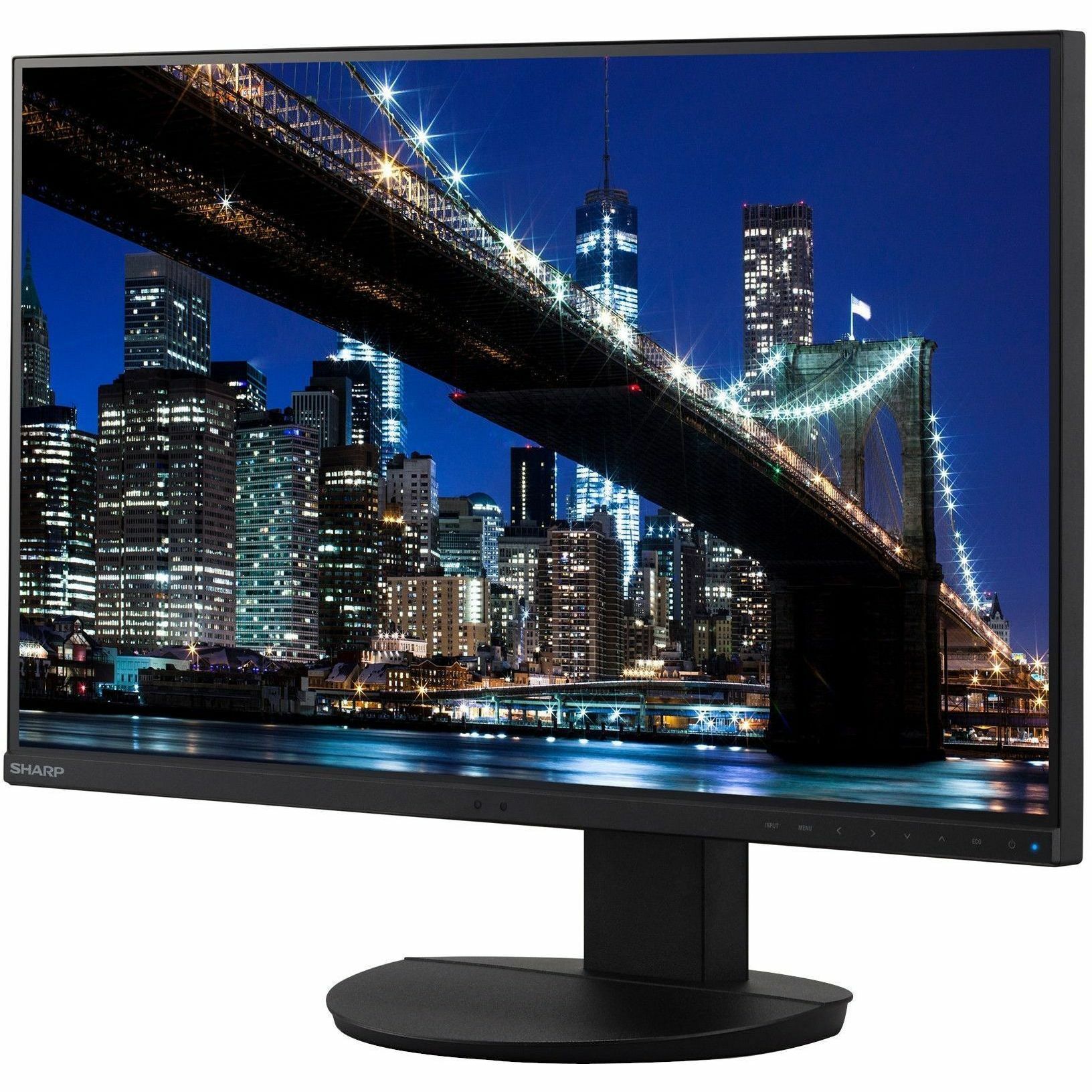

The 4K UHD 27" NEC MultiSync EA272U is a large workspace for the most demanding applications. With 3 bezels measuring only 1.0mm each, this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand and full connectivity with DisplayPort and two HDMI inputs. In addition, the USB Type-C input can serve as a single connection to a laptop, providing power, video and USB connectivity through one cable. The EA272U includes touch-sensitive On Screen Display controls and Picture by Picture (PBP) mode for two inputs onscreen at the same time.
- Full connectivity, including DisplayPort and two HDMI inputs as well as USB Type-C
- 4K UHD (3840x2160) Resolution

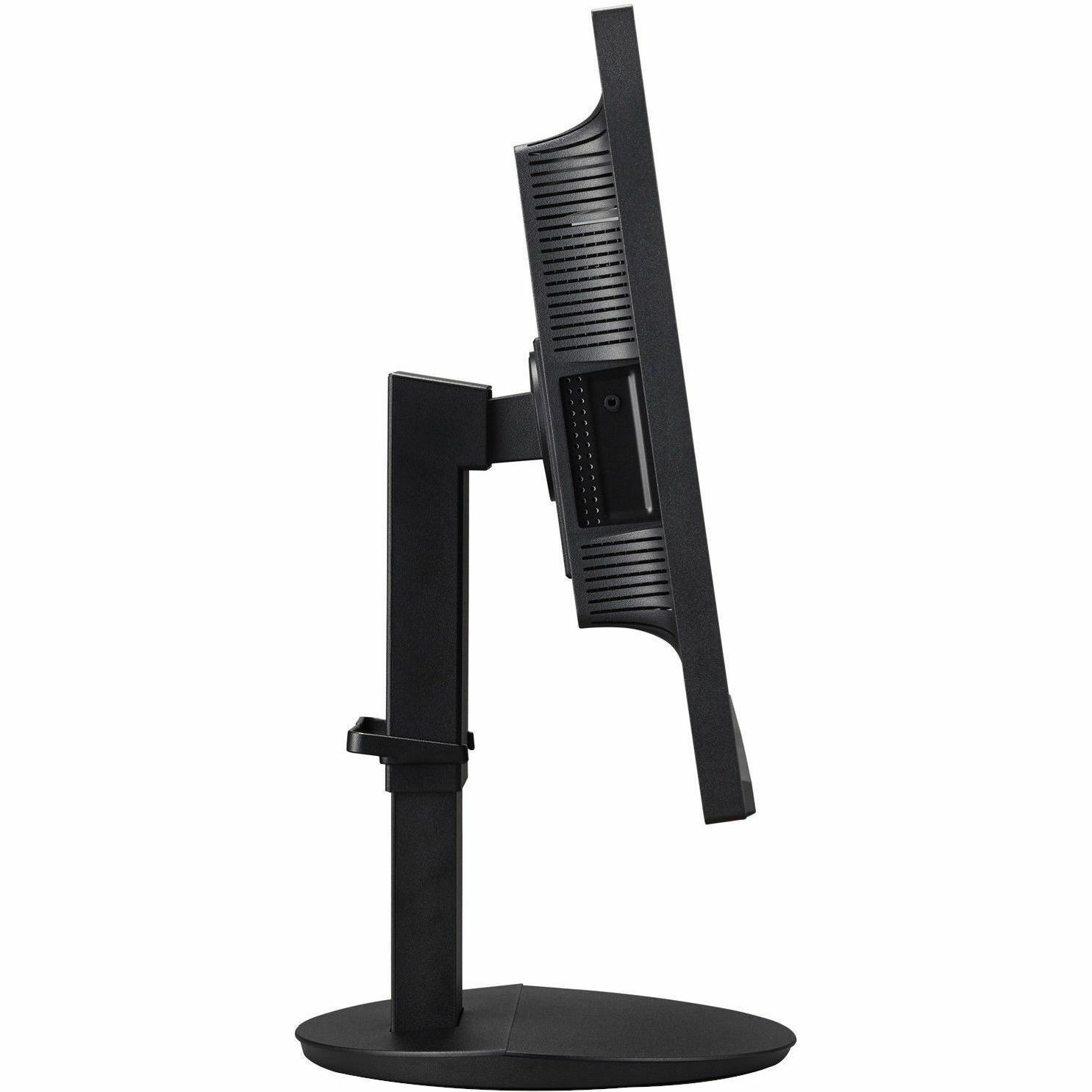

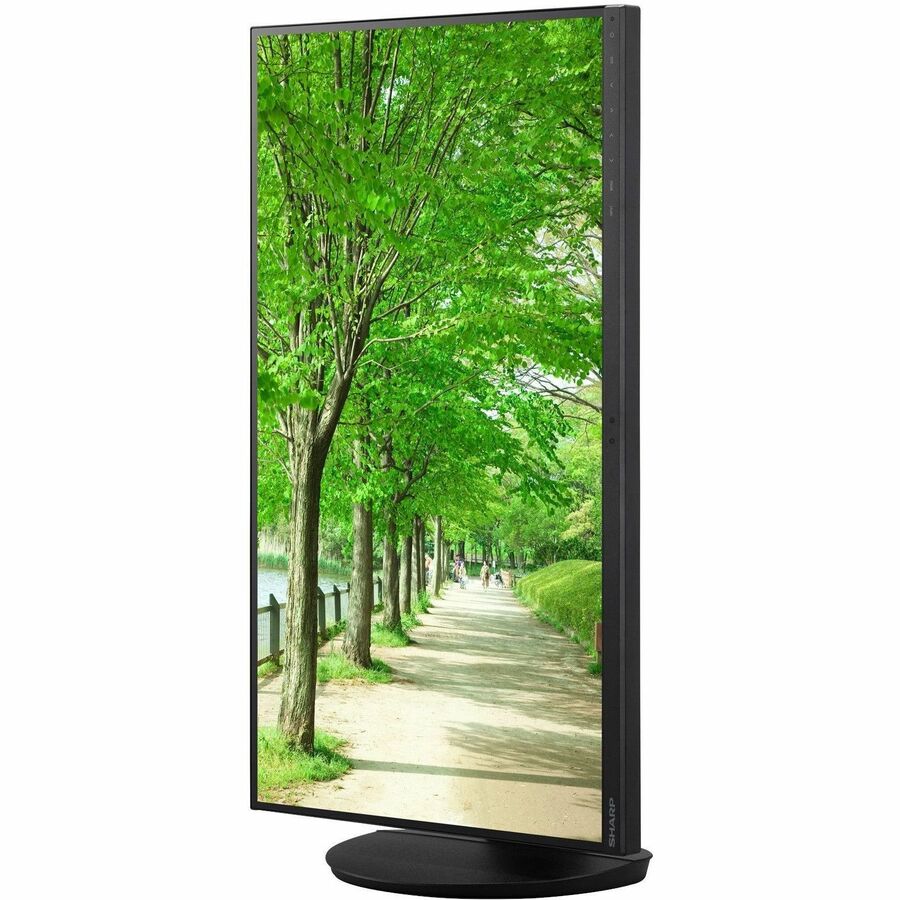

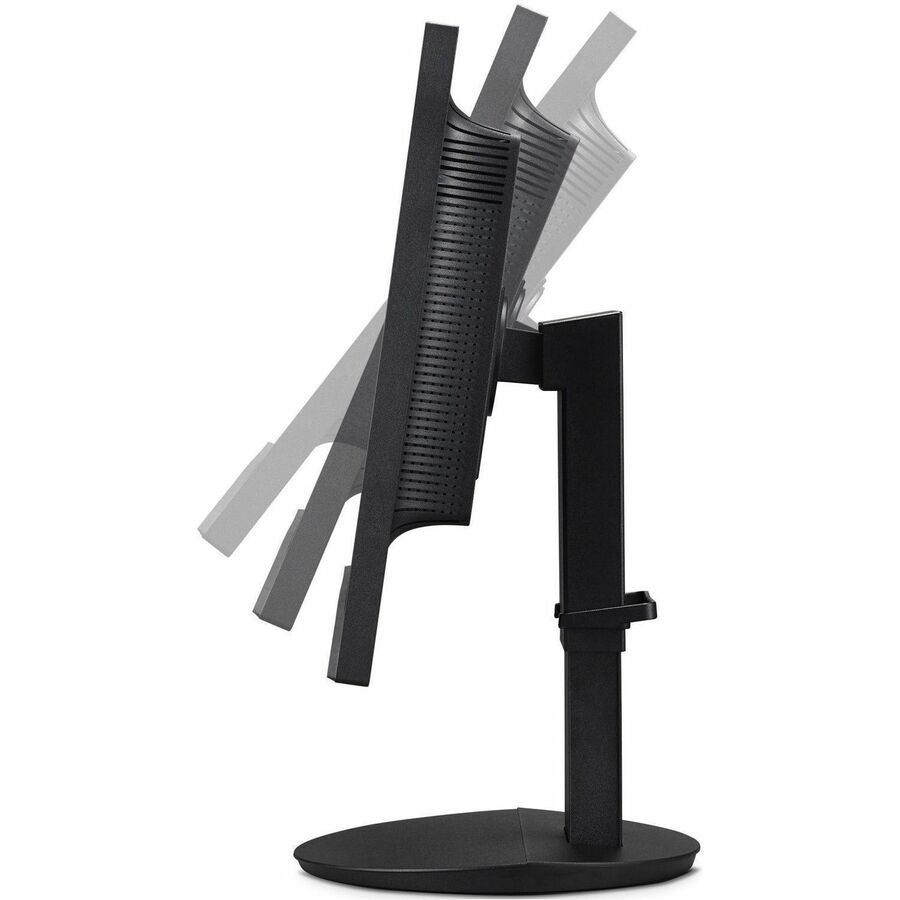

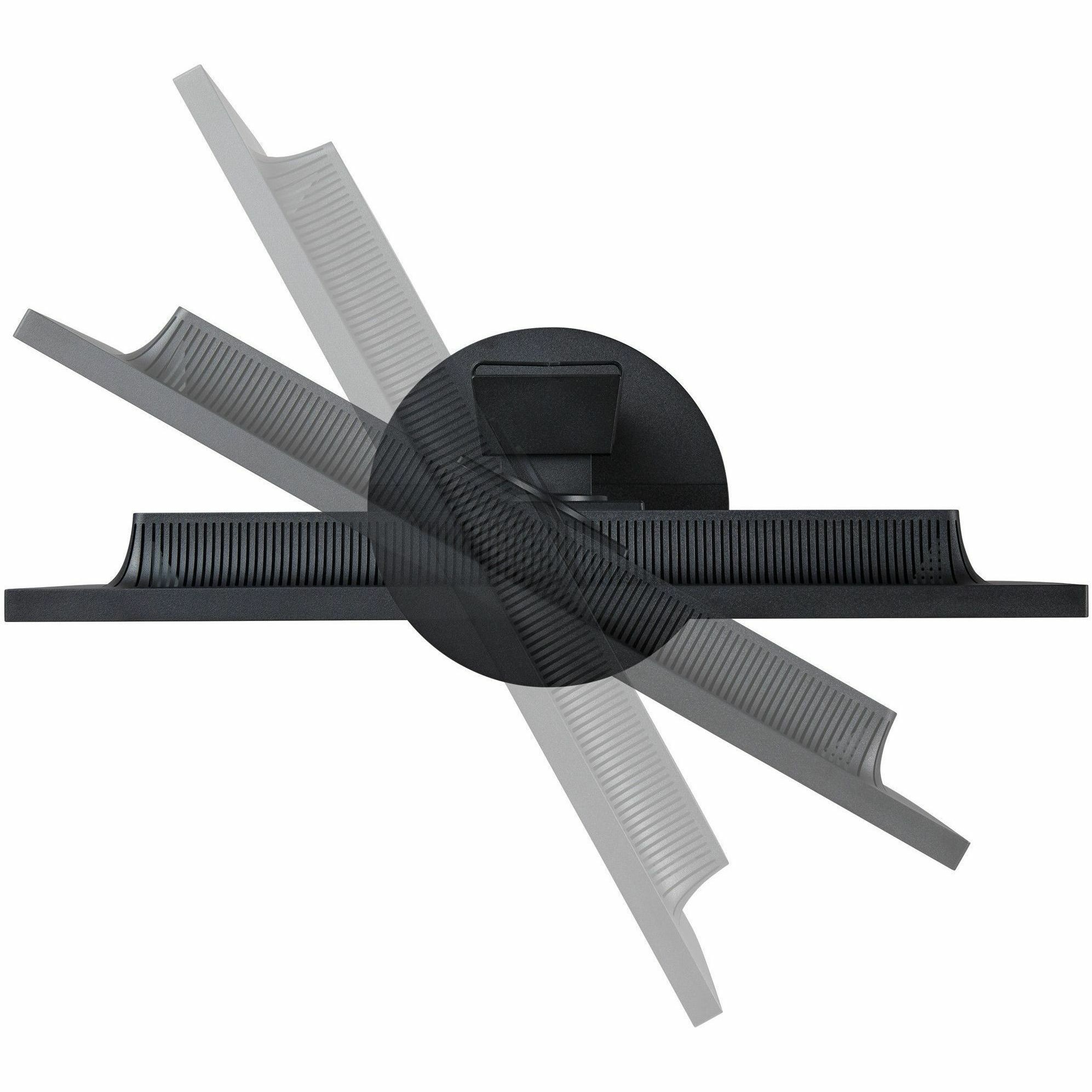

- Height-adjust, dual direction pivot, tilt and swivel capabilities are designed to fit every work environment
- IPS Technology for 178-degree wide viewing angles
- Brightness 250 cd/m2
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power

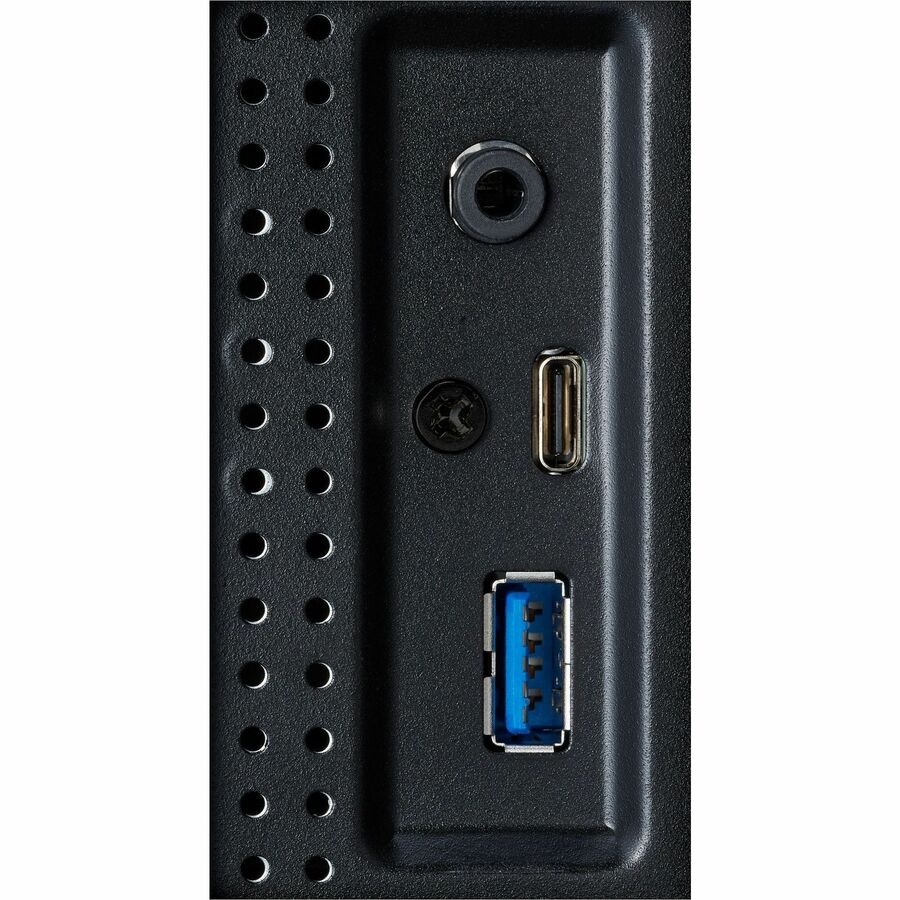

- USB Type-C input delivers 90W of power as well as video and USB over one cable
- ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- LAN port enables ethernet use for those devices connected to the display with no LAN port
- Certified Low Blue Light and Flicker Free
- USB Hub (1 Up/2 Down)
- Touch-sensitive OSD® controls are integrated into the bezel
- 3 year warranty
- ENERGY STAR 8.0 and TCO 9.0
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Main Specification
| General Information | |
| Manufacturer | Sharp |
| Manufacturer Part Number | DD-EA272U |
| Manufacturer Website Address | http://www.sharp-nec-displays.com/ |
| Brand Name | Sharp NEC Display |
| Product Line | MultiSync |
| Product Model | DD-EA272U |
| Product Name | 27" 4K UHD (3480x2160) Business-Class Widescreen Desktop Monitor w/ Ultra-Narrow Bezel and USB-C (90W) Charging |
| Product Type | LED Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Screen Size Class | 27" |
| Viewable Screen Size | 27" |
| Screen Mode | 4K UHD |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 6 ms |
| Response Time Details | 6ms Typical |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 6.1 mil |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Desk Mountable |
| Backlight Technology | LED |
| HDCP Supported | Yes |
| Features | Carbon Footprint Meter |
| Features | Narrow Bezel |
| Features | Eco Mode |
| Features | Low Blue Light |
| Features | XtraView |
| Features | AccuColor |
| Features | Movie Mode |
| Features | Auto Brightness Control (ABC) |
| Features | Plug & Play |
| Features | Sync on Green |
| Features | Separate Sync |
| Features | Flicker-free |
| Features | Power Management |
| Features | sRGB |
| Features | Wide Viewing Angle |
| Features | Ambient Light Sensor |
| Features | Game Mode |
| Features | Picture by Picture |
| Features | Cable Management |
| Features | Cable Lock Slot |
| Vertical Frequency | 30 Hz to 75 Hz |
| Adjustable Stand | Yes |
| Stand Adjustments | Height |
| Stand Adjustments | Tilt |
| Stand Adjustments | Pivot |
| Stand Adjustments | Swivel |
| Video | |
| Maximum Resolution | 3840 x 2160 |
| Standard Refresh Rate | 60 Hz |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,200:1 |
| Brightness | 350 Nit |
| Color Gamut | 80.8% Adobe RGB |
| Color Gamut | 100% sRGB |
| Color Gamut | 75.10% NTSC |
| Pixel Per Inch (PPI) | 163 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| USB Type-C | Yes |
| Number of HDMI Inputs | 2 |
| Total Number of HDMI Ports | 2 |
| Number of USB Ports | 2 |
| Number of USB 3.1 Ports | 2 |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Environmental Conditions | |
| Operating Temperature Range | 41°F (5°C) to 95°F (35°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Maximum Operating Altitude | 16404.20 ft |
| Power Description | |
| Standby Power Consumption | 300 mW |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Maximum Power Consumption | 38 W |
| Voltage Current | 1.80 A |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 14.2" |
| Width | 24.1" |
| Depth | 2.6" |
| Height with Stand | 20.80" |
| Width with Stand | 24.10" |
| Depth with Stand | 9.80" |
| Compressed Height with Stand | 14.90" |
| Extended Height with Stand | 20.80" |
| Weight (Approximate) | 12.80 lb |
| Weight with Stand (Approximate) | 20.30 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| TCO Certified | Yes |
| Application/Usage | Business |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
