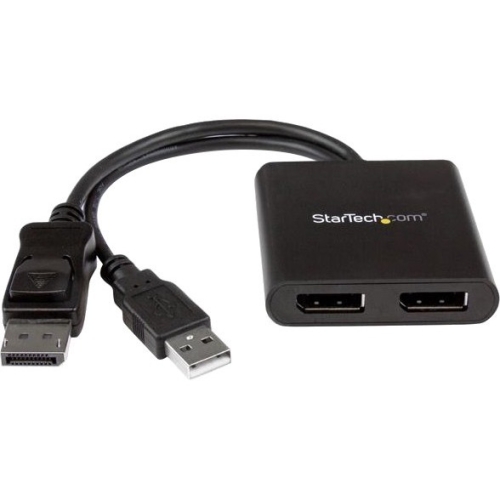

MSTDP122DP StarTech.com MST Hub - DisplayPort to 2x DisplayPort - Multi Stream Transport Hub - DP 1.2 to DP *** Open Box Item ***
Mfg Part Number: MSTDP122DP , Item #: 5164748
, PO and Wire.
This MST hub lets you connect twomonitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.It's USB powered, so the only thing you'll need to operate the hub is your computer.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect twoadditional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displaysfor remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP122DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Average resolution bandwidth allocation
1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MSTDP122DP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | MST hub - DisplayPort to 2x DisplayPort |
| Packaged Quantity | 1 |
| Product Type | Signal Splitter |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| USB | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of DisplayPort Outputs | 2 |
| Media & Performance | |
| Maximum Operating Distance | 78.74" |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Height | 0.5" |
| Width | 2.3" |
| Length | 9.8" |
| Weight (Approximate) | 1.83 oz |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Hardware
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
