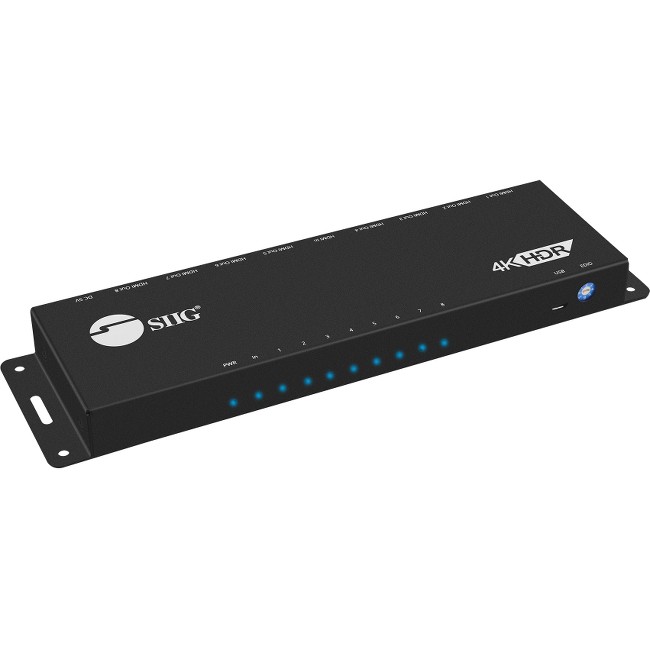

SIIG AC CE-H23D11-S1 HDMI2.0 Splitter Distribution Amplifier 4K 60Hz HDR
Mfg Part Number: CE-H23D11-S1 , Item #: 5147211
Image may not reflect the actual item.
Price: $239.96
Quantity:
More to Come
Last Updated: Dec 23, 2025
No Sales Tax except these states
, PO and Wire.
Distributes HDMI video/audio signals from one HDMI source to 8 HDMI displays while maintaining signal quality
- Distributes HDMI video and audio from a single source to up to 8 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
- Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
- EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
- Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
- Easy to cascade multiple splitters for more displays. Supports up to 10 layers
Main Specification
| General Information | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H23D11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Model | CE-H23D11-S1 |
| Product Name | 1x8 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz |
| Product Type | Audio/Video Distribution Amplifier |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Maximum Video Bandwidth | 600 MHz |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 8 |
| Media & Performance | |
| Maximum Operating Distance | 49.21 ft |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Product Material | Aluminum |
| Height | 0.9" |
| Width | 2.7" |
| Length | 9.1" |
| Weight (Approximate) | 1.85 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
