VERTIV

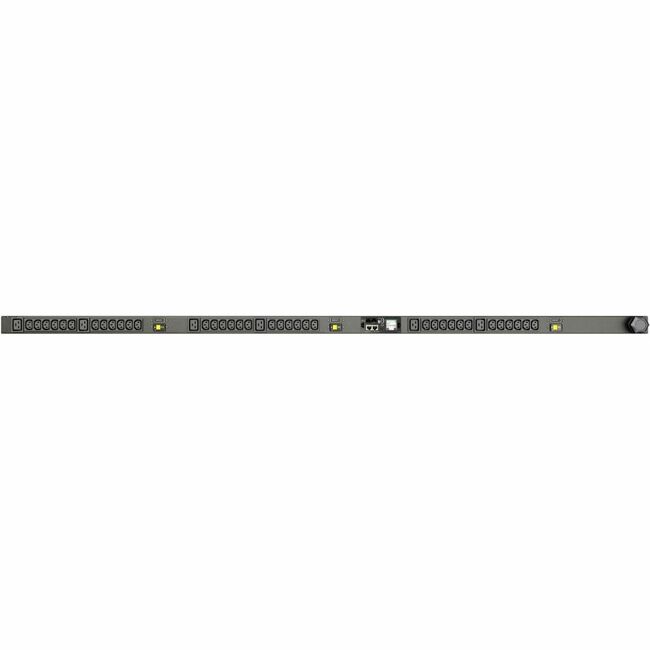

VERTIV VP4N30A6 RPDU MONITORED UNIT LEVEL EC 30A 120/208V WYE 8.6KW VERTICAL
Mfg Part Number: VP4N30A6 , Item #: 5143563
Image may not reflect the actual item.
Price: $1,122.63
Quantity:
More to Come
Last Updated: Jul 11, 2025
No Sales Tax except these states
, PO and Wire.
Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs.
- Every unit is 100% tested for reliability and functionality.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP4N30A6 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | MN05M4W1-42IZ68-3TL21A0A10-S |
| Product Name | rPDU MN05M4W1-42IZ68-3TL21A0A10-S 42-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Plug/Connector Detail | 1 x NEMA L21-30P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Protection Type | Overcurrent Protection |
| Protection Type | Double Pole |
| Features | Touch Screen Display |
| Features | LED Display |
| Load Capacity (Watt) | 8600 W |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8600 W |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Management | |
| Management |
|
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft |
| Width | 2" |
| Depth | 2" |
| Length | 72" |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | IT Equipment |
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
