BIXOLON

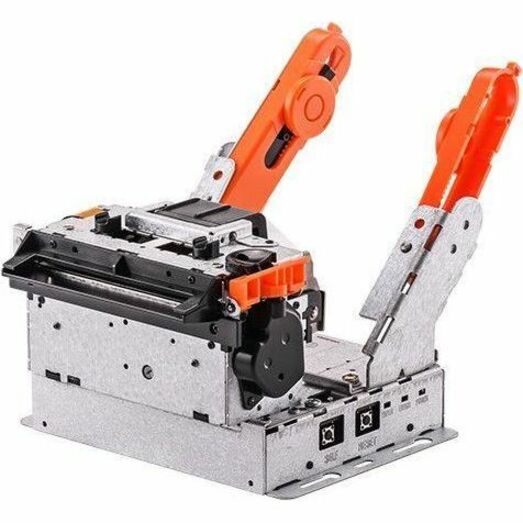

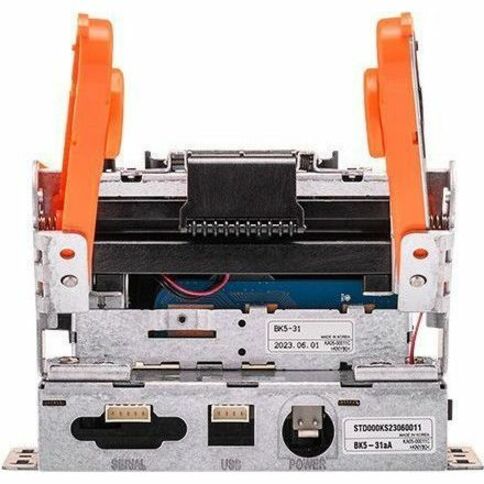

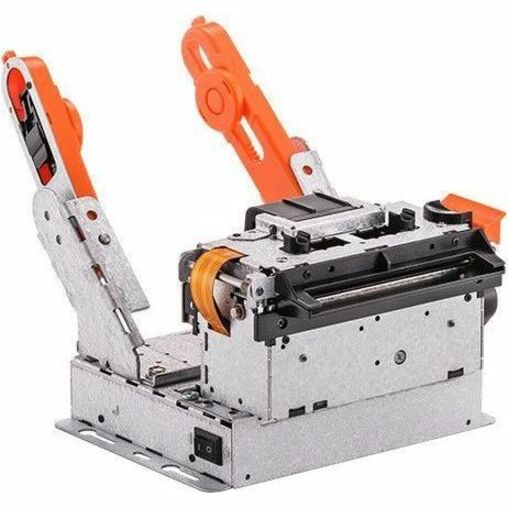

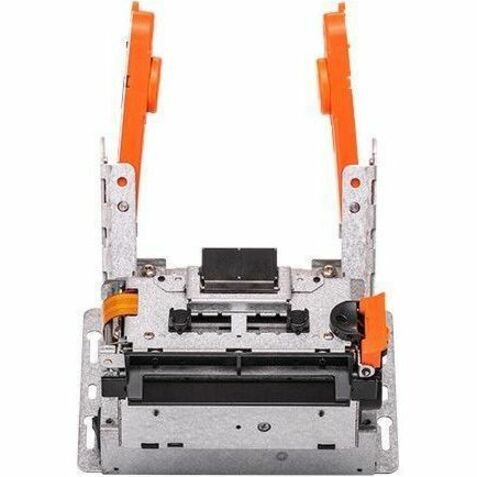

BIXOLON BK5-31AA 3 INCH TICKET LABEL AND WRISTBA 130MM/SEC 203 DPI DSUB 9P USB C
Mfg Part Number: BK5-31AA , Item #: 5076162
Image may not reflect the actual item.
Price: $155.38
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 27, 2025
No Sales Tax except these states
, PO and Wire.
Reliable Printing Performance
- Fast speeds of up to 150 mm/sec at 203 dpi

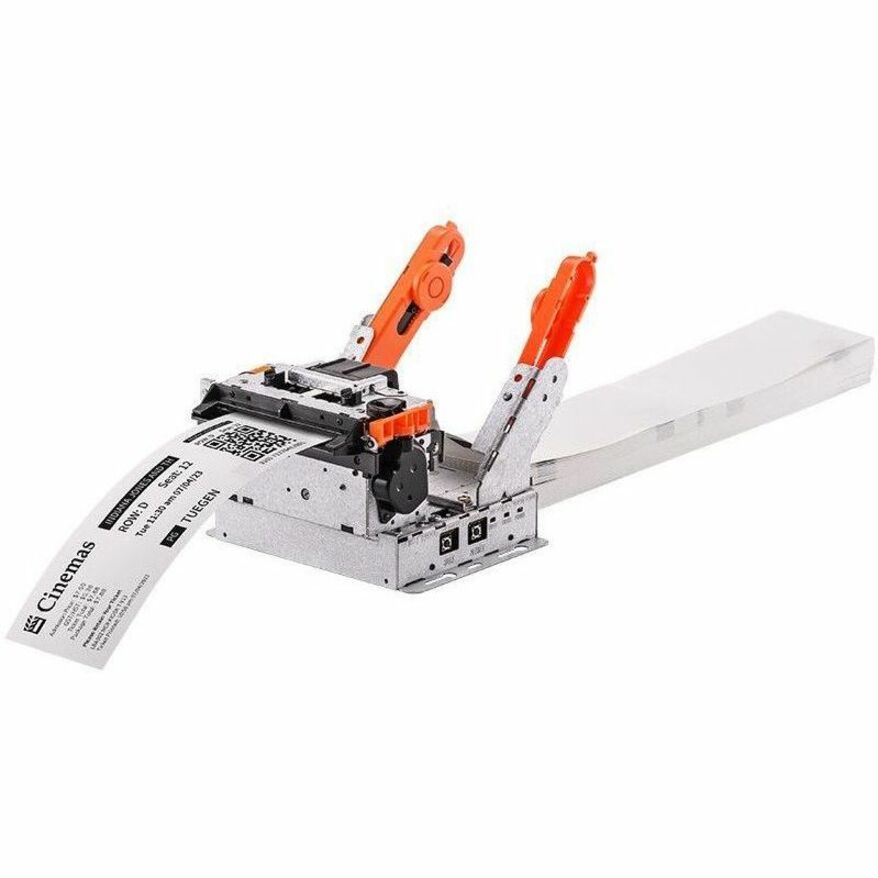

- Compatible with ticket, label, and wristband media
- Supporting media with a thickness of up to 0.20 mm for ticket printing
- Reliable operation across a wide range of temperatures
User-Friendly Design

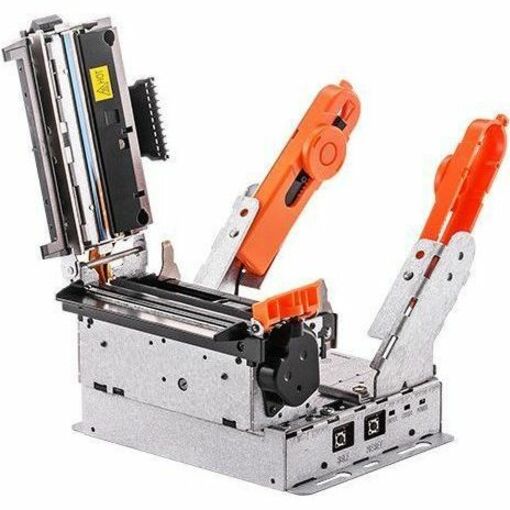

- Side open-frame design for easy media loading
- Adjustable media widths of 83 / 80 / 60 / 58 / 20 mm
- Compact and lightweight design to fit within constricted spaces
- Improved media detection capabilities with a movable black mark sensor
Multiple Interface Choice
- Built-in USB + Serial Interface
- Power: DC-Jack or 2P Connector
- Serial: 9P Male or 5P Connector
Main Specification
| General Information | |
| Manufacturer | Bixolon America, Inc |
| Manufacturer Part Number | BK531AA |
| Manufacturer Website Address | http://www.bixolon.com |
| Brand Name | Bixolon |
| Product Model | BK5-31 |
| Product Name | BK5-31 3-inch Kiosk Label Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label/Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5.91 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 3.15" |
| Barcode Symbology Supported | EAN-13 |
| Barcode Symbology Supported | GS1 DataBar Stacked |
| Barcode Symbology Supported | 2D |
| Barcode Symbology Supported | UPC-A |
| Barcode Symbology Supported | QR Code |
| Barcode Symbology Supported | GS1-128 |
| Barcode Symbology Supported | Code 93 |
| Barcode Symbology Supported | EAN-8 |
| Barcode Symbology Supported | Code 39 |
| Barcode Symbology Supported | Code 128 |
| Barcode Symbology Supported | GS1 DataBar Omnidirectional |
| Barcode Symbology Supported | 1D |
| Barcode Symbology Supported | GS1 DataBar Limited |
| Barcode Symbology Supported | GS1 DataBar Expanded |
| Barcode Symbology Supported | GS1 DataBar Truncated |
| Barcode Symbology Supported | ITF |
| Barcode Symbology Supported | Data Matrix |
| Barcode Symbology Supported | PDF417 |
| Barcode Symbology Supported | Codabar |
| Barcode Symbology Supported | UPC-E |
| Application/Usage | Healthcare |
| Application/Usage | Casino |
| Application/Usage | Lottery |
| Application/Usage | Transportation & Logistic |
| Application/Usage | Kiosk |
| Features | Compact |
| Features | Lightweight |
| Character Sets | 32 International |
| Character Sets | 95 Alphanumeric |
| Character Sets | 128 x 35 Graphic |
| Fonts Included | JPN: 24 x 24 |
| Fonts Included | Font C: 9 x 24 |
| Fonts Included | Font B: 9 x 17 |
| Fonts Included | CHN |
| Fonts Included | Font A: 12 x 24 |
| Fonts Included | KOR |
| Print Technology | Direct Thermal |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB Host | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Network & Communication | |
| Ethernet | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Screen Size | 3" |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Receipt |
| Media Type | Gap |
| Media Type | Ticket |
| Media Type | Wristband |
| Media Type | Black Bar |
| Media Sensor | Black Mark Sensor |
| Media Sensor | Cover Open Sensor |
| Media Sensor | Paper Near End Sensor |
| Media Sensor | Paper End Sensor |
| Media Sensor | Gap Sensor |
| Media Thickness | 7.87 mil |
| Maximum Roll Diameter | 5.91" |
| Maximum Label Width | 3.27" |
| Fonts & Emulation | |
| Language Emulation | BXL/POS |
| Power Description | |
| Power Source | AC Supply |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) - 140°F (60°C) |
| Operating Relative Humidity | 10% - 95% |
| Storage Temperature | 32°F (0°C) - 104°F (40°C) |
| Storage Relative Humidity | 10% - 95% |
| Physical Characteristics | |
| Weight (Approximate) | 1.72 lb |
| Miscellaneous | |
| Power Cable Localization | US |
