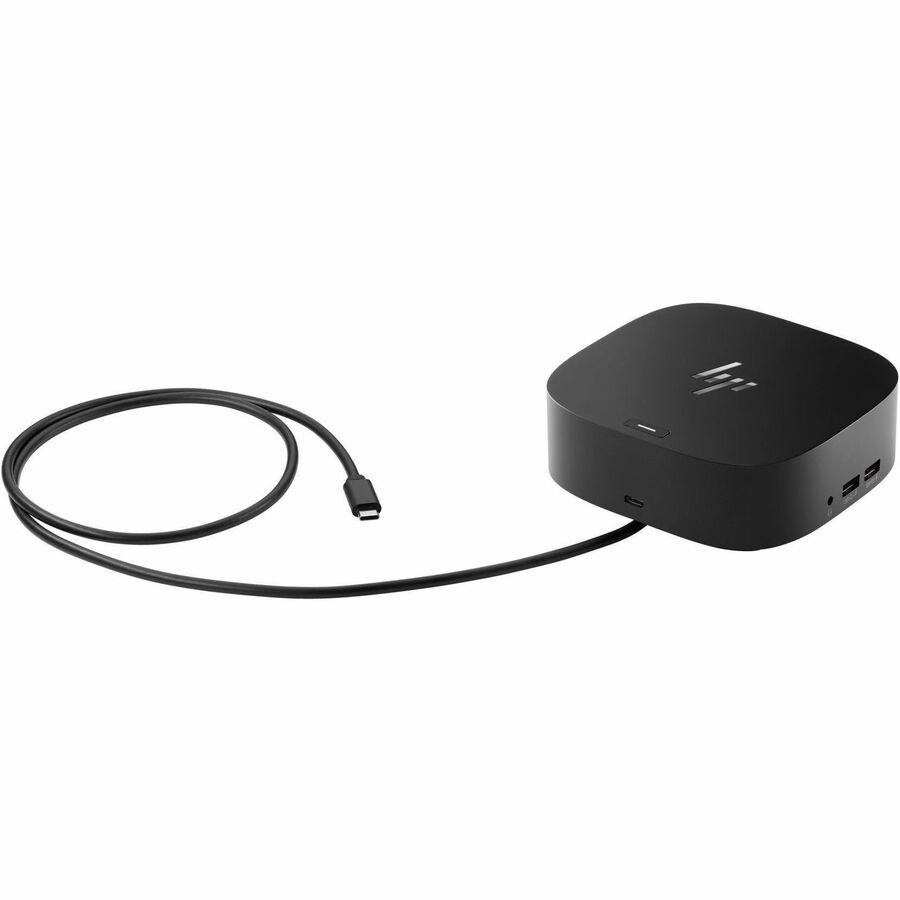

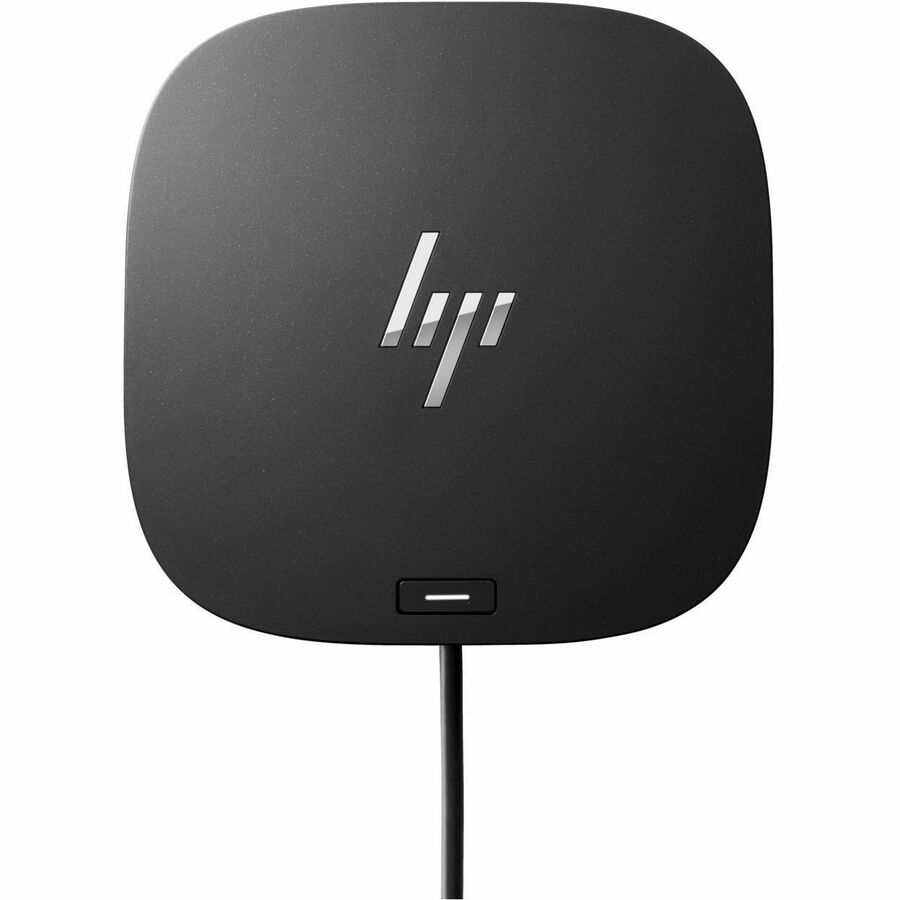

784Q9AA#ABA KIT HP USB-C ESSENTIAL DOCK G5 SUPERSPEED
Mfg Part Number: 784Q9AA#ABA , Item #: 5046096
Image may not reflect the actual item.
Price: $218.73
Quantity:
In Stock: 48
Last Updated: Dec 29, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | HPI SOURCING - NEW |
| Manufacturer Part Number | 784Q9AA#ABA |
| Brand Name | HPI SOURCING - NEW |
| Product Line | Essential |
| Product Model | G5 |
| Product Name | USB-C G5 Essential Dock |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | Notebook/Desktop PC |
| Cable Length | 3.20 ft |
| Features | Power Delivery Pass-through |
| Features | LED Power Indicator |
| Features | Compact |
| Features | Security Lock |
| Management Features | MAC Address Pass-through |
| Management Features | Wake-on-LAN |
| Management Features | PXE Boot |
| Number of Displays Supported | 3 |
| Screen Mode Supported | 4K UHD |
| Screen Mode Supported | QHD |
| Screen Mode Supported | Full HD |
| Supported Resolutions | 2560 x 1440 |
| Supported Resolutions | 3840 x 2160 |
| Supported Resolutions | 1920 x 1080 |
| Maximum Data Transfer Rate | 640 MB/s |
| Network & Communication | |
| Ethernet Technology | Ethernet |

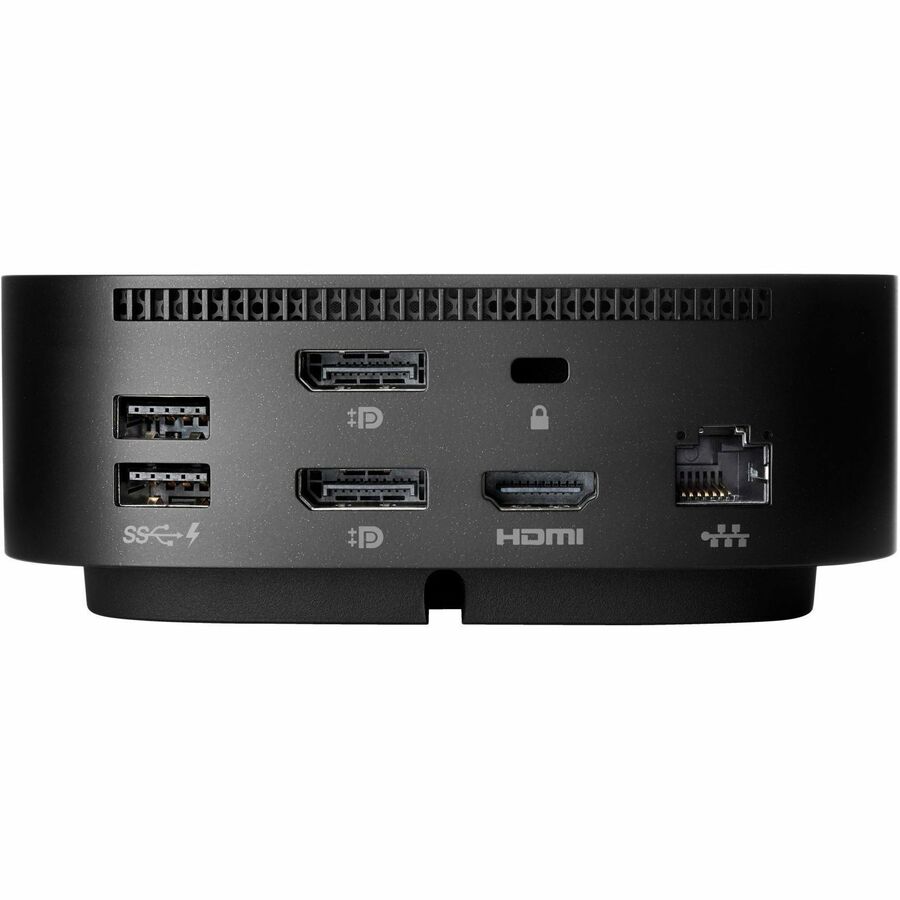

| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 4 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 4 |

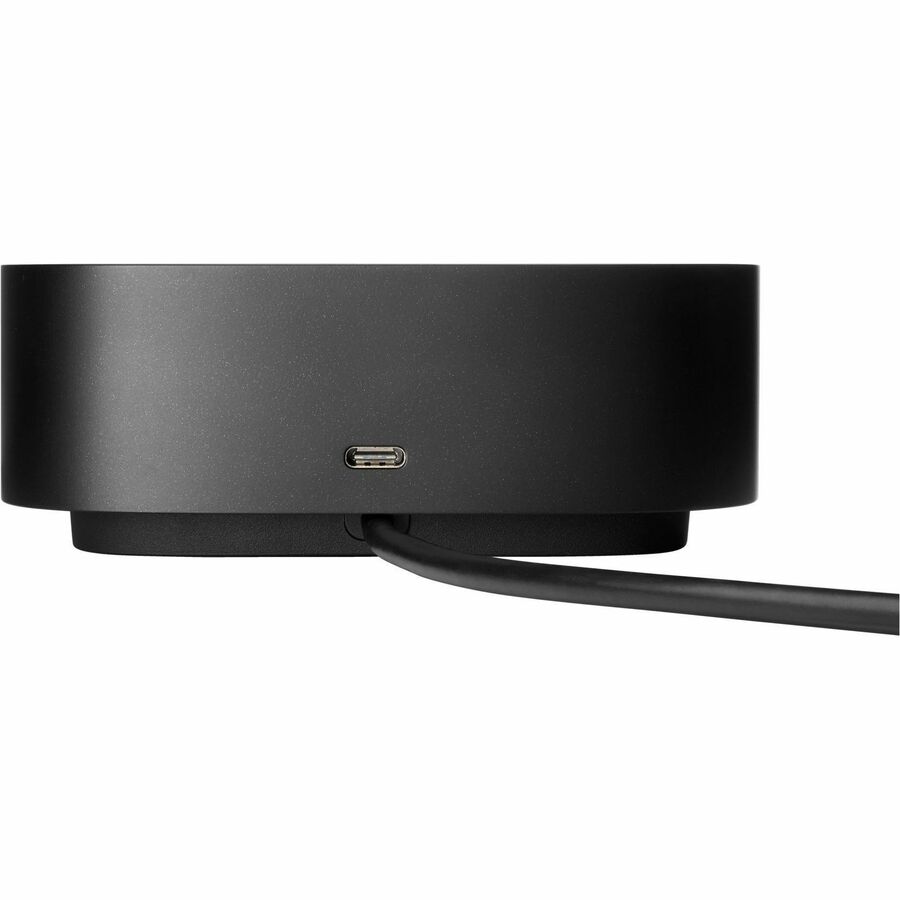

| USB Type-C | Yes |
| USB Type-C Detail | 1 x SuperSpeed USB Type-C®? 5Gbps signaling rate (up to 15 W USB Power Delivery) |
| Number of USB Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| DisplayPort | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 1.4 |
| Headphone/Microphone Combo Port | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| HDMI Version | 2.0 |
| USB Power Delivery | 65W |
| Software | |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows 10 |
| Operating System Supported | macOS |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop |
| Height | 1.77" |
| Width | 4.80" |
| Depth | 4.80" |
| Weight (Approximate) | 1.54 lb |
| Miscellaneous | |
| Additional Information | Up to 65 W USB Power Delivery |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
