RARITAN
RARITAN PX4-431A-E7 1PH 208V 30A 18XC13 18XCX NEMA L6-30P
Mfg Part Number: PX4-431A-E7 , Item #: 5017126

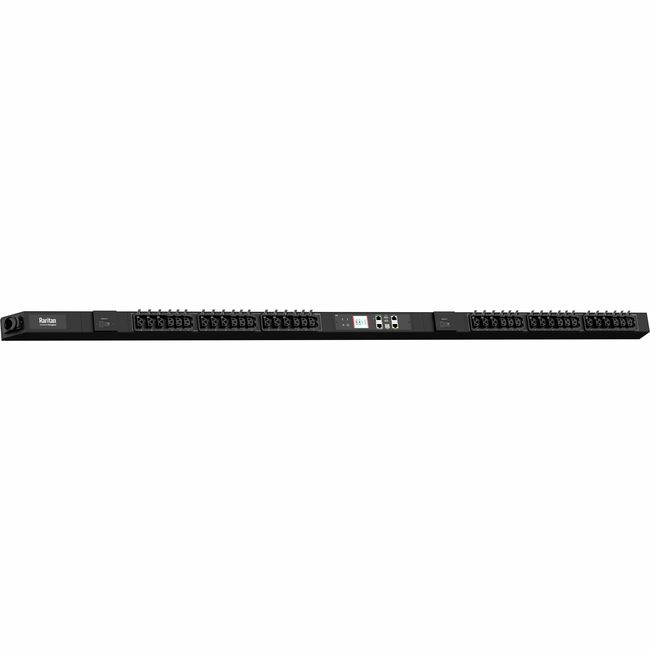

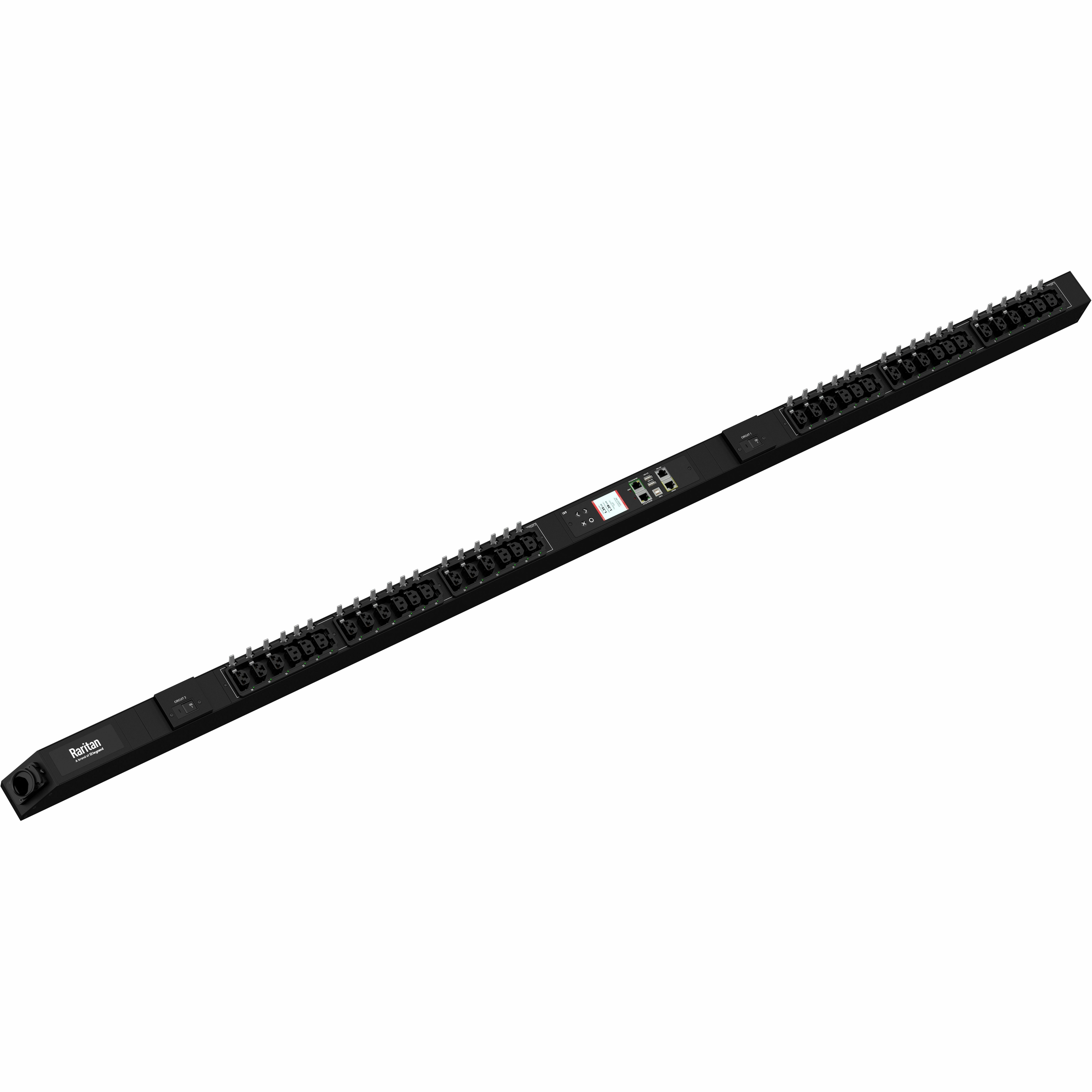

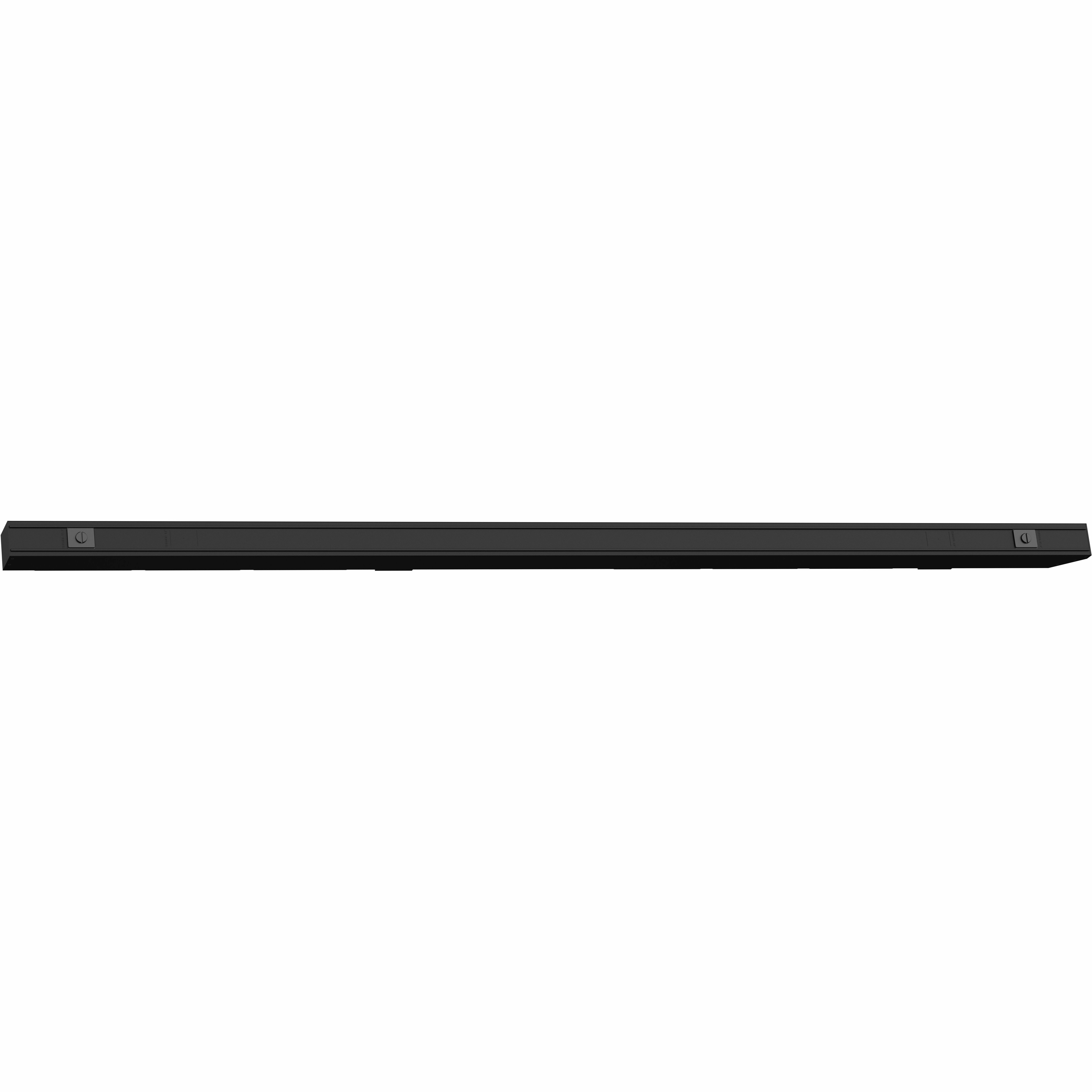

Image may not reflect the actual item.
Price: $2,387.67
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 20, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX4-431A-E7 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX4-431A-E7 |
| Product Name | PX4-431A-E7 36-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered-by-Outlet |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P (2P3W) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | CX |
| Receptacle Detail | 18 x CX |
| Receptacle Detail | 18 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Protection Type | Branch Circuit |
| Locking Receptacles | SecureLock |
| Locking Receptacles | IEC 60320 C13 |
| Locking Receptacles | CX |
| Features | Onboard Display |
| Features | LCD Display |
| Load Capacity (VA) | 5 W |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 5800 VA |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Management | |
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Mount Type | Rack-mountable |
| Mount Type | Button Mount |
| Cord Length | 9.84 ft |
| Height | 70.1" |
| Width | 2.2" |
| Depth | 2.6" |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
