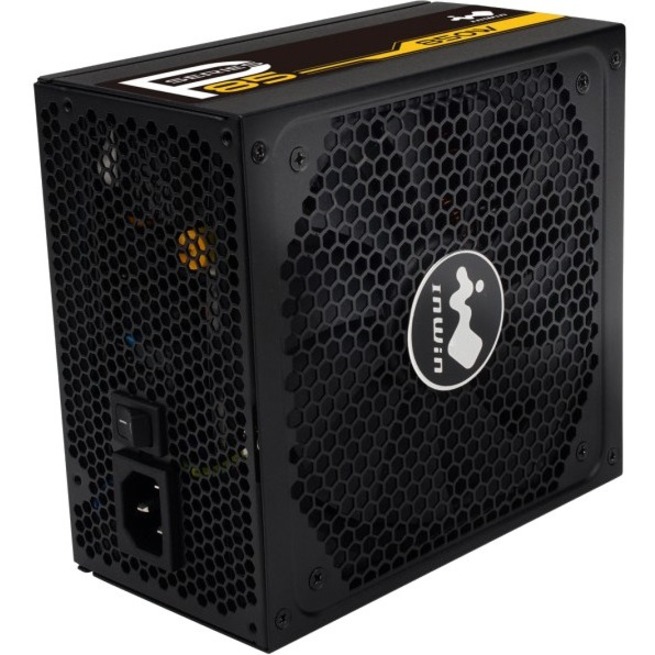

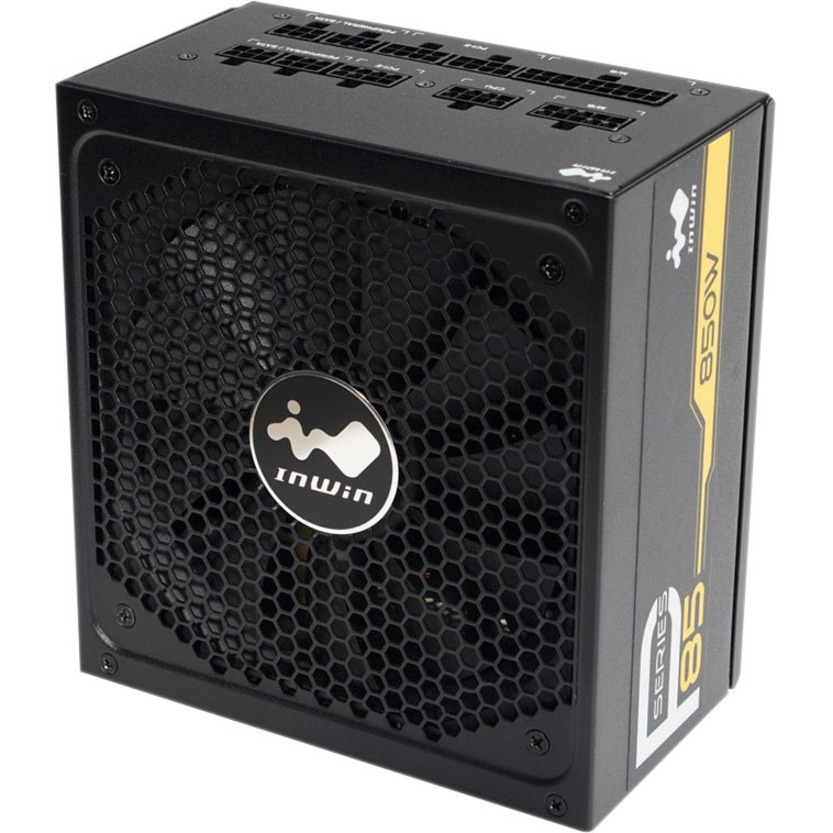

IN WIN In-Win PS P85 850W SECC ATX12V EPS12V APFC 80+ Gold Fully Modular Retail
Mfg Part Number: P85 , Item #: 4946239
, PO and Wire.
The P Series is an 80 PLUS Gold certified power supply that focuses its features on efficiency,
reliability and overall PC building experience.
The P Series' low noise output makes this PSU the optimal choice for most PC builds.
80 PLUS Gold Certified with Up to 90% Conversion Efficiency
The P Series delivers up to 90% efficiency, generating less heat and effectively reducing operating cost.
5V and 3.3V DC to DC Design
The P Series is equipped with a DC to DC converter design, that provides a superior dynamic response, and supports a foundation for greater system stability.
Highly Reliable Japanese Aluminium Electrolytic Capacitors
Premium Japanese capacitors with 105°C rating improves power stability at higher temperatures and provides an ultra-long lifespan.
Multi-Protection Safeguards
The P Series comes with plenty of safety protections safeguards. These precautions are to ensure quality and a safe power usage.
- Over-Currents
- Over-Voltages
- Under-Voltages
- Short Circuits
- Over-Temperature
- Over-Power
Fully Modular with High Quality Flat Cables
The fully modular and flexible flat cables allow builders limits the cables present in a PC. Easier cable management results in cleaner builds with better airflow.
| General Information | |
| Manufacturer | In Win Development, Inc |
| Manufacturer Part Number | P85 |
| Manufacturer Website Address | http://www.in-win.com.tw |
| Brand Name | In Win |
| Product Series | P |
| Product Model | IW-PS-P850W |
| Product Name | IW-PS-P850W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 90% |
| Number of Fans | 1 |
| Modular | Yes |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 5 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 3 V DC |
| Output Voltage Detail | 5 V DC @ 22 A |
| Output Voltage Detail | 3 V DC @ 22 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 12 V DC @ 70.9 A |
| Output Voltage Detail | 5 V DC @ 3 A |
| Output Current | 300 mA |
| Output Current | 22 A |
| Output Current | 70.90 A |
| Output Current | 3 A |
| Output Power | 850 W |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4" |
| Width | 5.9" |
| Weight (Approximate) | 5.82 lb |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
