GRANDSTREAM

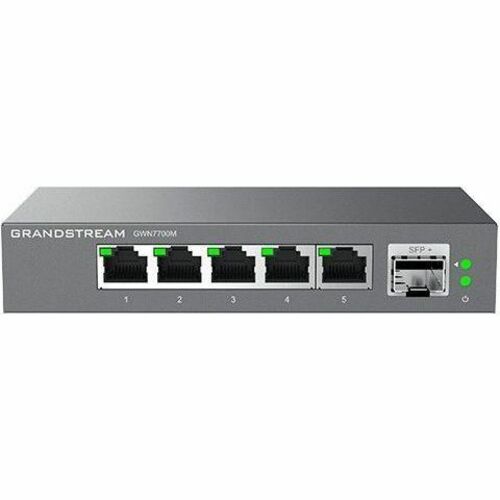

GRANDSTREAM GWN7700M UNMANAGED 2.5 MULTI-GIGABIT SWITCH, 5 X 2.5 GIGE, 1 X SFP+
Mfg Part Number: GWN7700M , Item #: 4940368
Image may not reflect the actual item.
Price: $74.42
+ Free Shipping
Quantity:
More to Come
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.
GWN7700M Series
Unmanaged 2.5G Multi-Gigabit Network Switches
The GWN7700M series are 6 & 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses
- 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
- One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- Whisper Quiet: fanless
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Green technology reduces power consumption
- QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700M Series are 6 and 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity
through 5 or 8 built-in 2.5 Gbps ports.
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Main Specification
| General Information | |
| Manufacturer | Grandstream Networks, Inc |
| Manufacturer Part Number | GWN7700M |
| Manufacturer Website Address | http://www.grandstream.com |
| Brand Name | Grandstream |
| Product Series | GWN7700 |
| Product Name | GWN7700 Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Plug and Play |
| Features | Fanless |
| Features | Energy Efficient |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 × 100/1000/2500 Gigabit Ethernet RJ-45 Network Port |
| Port/Expansion Slot Details | 1 × Gigabit Ethernet SFP+ Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 2.5GBase-T |
| Network Technology | 100/1000Base-T |
| Maximum Data Transfer Rate | 320 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3aq |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3i |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3bz |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | Power Adapter |
| Power Consumption | 7 W |
| Physical Characteristics | |
| Product Material | Plastic |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Height | 1.1" |
| Width | 3.1" |
| Length | 5.7" |
| Miscellaneous | |
| Application/Usage | Home Office |
| Application/Usage | Business |
