LG

LG GMBD040-GN2 GMBD DVLED P40 STANDARD SINGLE SMD 3000NIT 320X3200X24.5

Mfg Part Number:  GMBD040-GN2
Image may not reflect the actual item.
Price: $14,749.54 + Free Shipping
Quantity:
More to Come
Last Updated: Feb 08, 2026
No Sales Tax except these states
, PO and Wire.

Flexibility for Various Screen Shapes

With its ability to be curved, folded, or rolled, GMBD can be easily formed into a variety of shapes for artistic, ornamental, or creative work. Its features can be widely applied to building facades, outdoor commercial, large events, or other areas to provide daytime or night views.

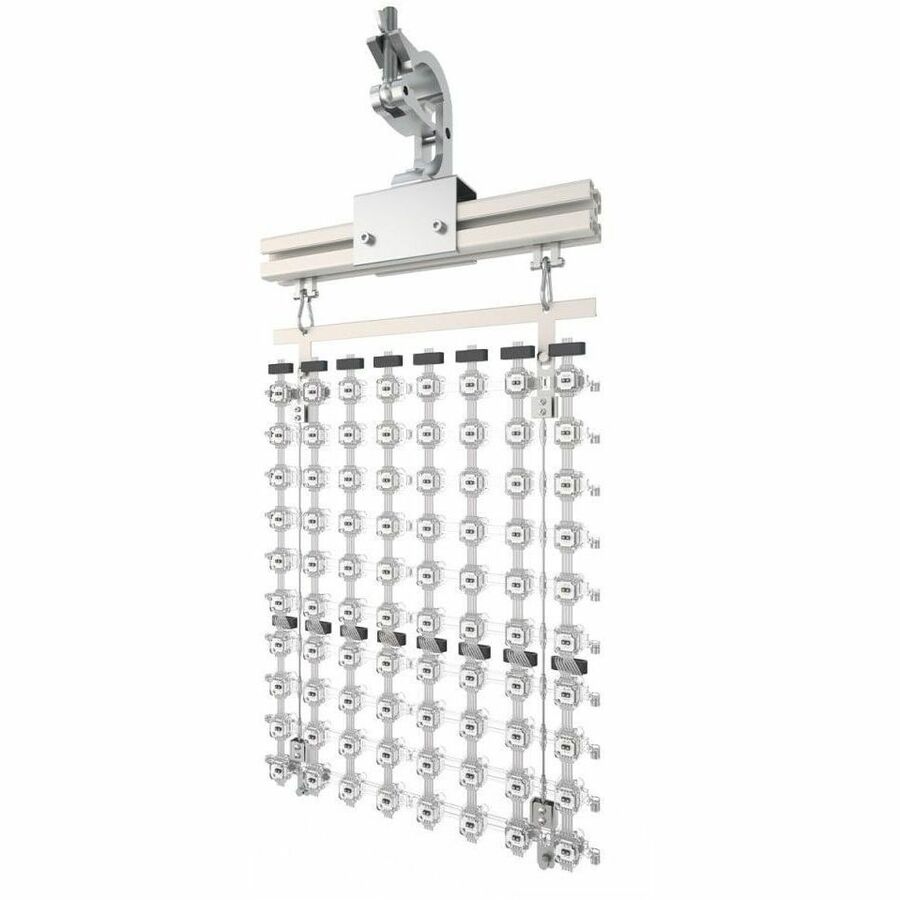

Lightweight Mesh LED

Its small, lightweight design reduces weight strain even for large screens, reducing time and cost for installation.

Easy Maintenance

Its LED Data Line Bypass function keeps LED PKGs working even when a middle LED PKG is broken (or dead). A single dead pixel can be fixed or replaced separately, which allows the LED to be operated with reduced costs and time for maintenance.

Main Specification
General Information
Manufacturer LG Electronics
Manufacturer Part Number GMBD040-GN2
Manufacturer Website Address https://solutions.lg.com/us
Brand Name LG
Product Model GMBD040-GN2
Product Name 40 mm Flexible Mesh Direct View LED
Product Type Digital Signage Display
Technical Information
Features Curvable
Heat Dissipation 383.92 W
Average Heat Dissipation Per Cabinet 128.07 W
Ingress Protection (IP) Rating IP66
Minimum Color Temperature 31940.3°F (17726.8°C)
Maximum Color Temperature 44540.3°F (24726.8°C)
Service Access Front
Service Access Rear
Display & Graphics
Pixel Pitch 1.57"
Horizontal Viewing Angle 120°
Vertical Viewing Angle 120°
Cabinet Surface Area 11 Sq. ft.
Number of Modules Per Cabinet 1x8
Module Resolution 8 x 80
Maximum LED Life 11.4 Year
LED Type SMD 2727 x 2pcs
Physical Pixel Density 625 pixels/m²
Video
Standard Refresh Rate 2 kHz
Frame Refresh Rate 60 Hz
Dynamic Contrast Ratio 15,000:1
Brightness 3000 Nit
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Humidity 10%
Maximum Operating Humidity 90%
Physical Characteristics
Height 10.5 ft
Width 12.6"
Depth 1"
Module Height 10.50 ft
Module Width 0.71"
Weight per Module (Approximate) 1.20 lb
Weight per Cabinet (Approximate) 14.70 lb
Housing Material Plastic
Housing Material Silicone
Weight per Square Meter (Approximate) 6500 g/m²
Miscellaneous
Additional Information
  • Brightness Uniformity : 90%
  • Power Consumption per Cabinet (Max) : 384W
  • Power Consumption per Cabinet (Avg.) : 128W
  • 90 Degree Corner Cut : No
  • Total Modules (per cabinet) : 8
  • Cabinet Resolution (W x H) : 8 x 640
  • Heat Dissipation per Unit Area (Max.) : 1,280 BTU/hr/m²
  • Power Consumption per Unit Area (Max) : 375 W/m²
  • Controller : CVBA
  • Minimum Viewing Distance (5-7 mm per foot) : 200-280 feet
    		•
    Certifications & Standards
  • CE
  • CB
  • FCC
  • cTUVus: Yes
    		•
    Environmentally Friendly Yes
    Environmental Certification REACH
    Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    TAA Compliant No
    Warranty
    Limited Warranty 3 Year
