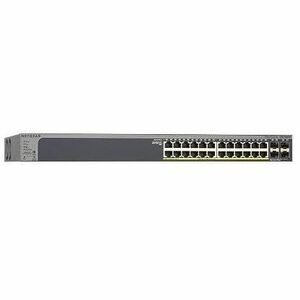

The NETGEAR® new generation of Gigabit PoE/PoE+ Smart Managed Switches offers powerful L2+/Layer 3 Lite features, better PoE functions, and enhanced performance and usability. They are purposely designed for the converged networks where voice, video, data are all carried on a single network platform for network efficiency, operational cost savings, and ease of management.
There are four products in this series, 16/28/52-port Gigabit with PoE and a 28-port Gigabit with PoE Plus. GS516TP is the Smart Managed Switch with PoE/ PD features. It can work as PD device that can get power from other PSE device through port 15 or/and port 16. Meanwhile, it can also deliver power to other PDs that are connected to its PoE ports (port 1 to 8). GS728TP and GS752TP are Gigabit PoE/PoE+ Smart Managed Switches that come with PoE capabilities on all ports and supports PoE+ with up to 30W of power budget on the first 8 ports, providing hardware investment protections so that the switch can support many more PoE powered devices and new higher-powered devices down the road. With the new generation, also comes the addition of high-powered PoE+ Smart Managed Switch into the portfolio. The GS728TPP comes with 24 PoE+ ports and a total PoE power budget of 384w. It can be used in any deployment with high-density of power-hungry devices, such as multiple 11ac Wireless Access Point, PTZ cameras and Video IP phones. All 28-port and above switches come with 4 dedicated Gigabit SFP ports for fiber connectivity.
The new generation of Gigabit PoE/PoE+ Smart Managed Switch from NETGEAR is the optimized solution providing the best value at an affordable SMB price point.
| General Information | |
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS728TP300NAS |
| Manufacturer Website Address | http://www.netgear.com |
| Brand Name | Netgear |
| Product Line | ProSafe |
| Product Model | GS728TP |
| Product Name | ProSafe GS728TP Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.3i |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 192 W |
| Power Source | Power Supply |
| Power Consumption | 264 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 10.1" |
| Weight (Approximate) | 8.22 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Wireless Access Point |
| Application/Usage | IP Camera |
| Application/Usage | VoIP Phone |
| Application/Usage | PC |
| Warranty | |
| Limited Warranty | Lifetime |
