TOSHIBA MEMORY KXDZDRJJ3T84 XD7P - PCIE - 1DWPD - 3840GB - SED - E1.S.9.5MM
Mfg Part Number: KXDZDRJJ3T84 , Item #: 4843838

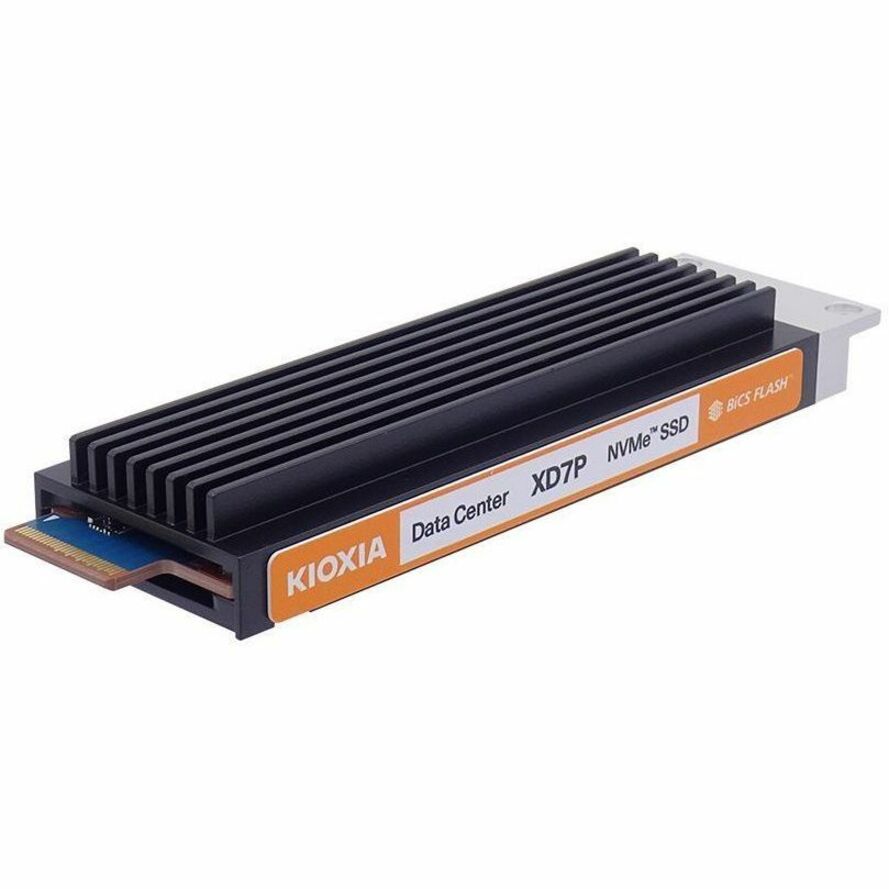

Image may not reflect the actual item.
Price: $955.76
+ Free Shipping
Quantity:
More to Come
Last Updated: May 21, 2025
No Sales Tax except these states
, PO and Wire.
KIOXIA XD7P Series E1.S SSDs are designed to the Enterprise and Datacenter Standard Form Factor (EDSFF) E1.S specification to address the specific requirements of hyperscale applications, including the performance, power and thermal requirements of the Open Compute Project (OCP) Datacenter NVMe™ SSD Specification. In addition to 9.5 mm thickness E1.S, 15 mm thickness E1.S with the heatsink is also supported. Designed to optimize system density and efficiency, the XD7P Series SSDs represent the future of flash storage for servers and storage systems in cloud and hyperscale data centers, and support storage capacities up to 7.68 TB.
Key Features
- Compliant with PCIe® 5.0 (Gen4 x4), NVMe™ 2.0 specifications
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- E1.S form factor (9.5 mm / 15 mm thickness)
- KIOXIA proprietary architecture: controller, firmware and BiCS FLASH™ generation 5
- 1.92 TB / 3.84 TB / 7.68 TB capacity options
- Power loss protection (PLP) and end-to-end data protection
- Security option: SED (Self Encrypting Drive)
Key Applications
- Servers and storage systems for cloud and hyperscale data centers
Main Specification
| General Information | |
| Manufacturer | Toshiba |
| Manufacturer Part Number | KXDZDRJJ3T84 |
| Manufacturer Website Address | http://www.toshiba.com |
| Brand Name | KIOXIA |
| Product Series | XD7P |
| Product Model | KXDZDRJJ3T84 |
| Product Name | Data Center NVMe SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 3.75 TB |
| Features | Power Loss Protection |
| Features | Triple-level Cell Flash |
| Features | End-to-end Data Protection |
| Features | Self-Encrypting Drive (SED) |
| Drive Performance | |
| Random 4KB Read | 1650000IOPS |
| Random 4KB Write | 180000IOPS |
| Endurance (DWPD) | 1 |
| Maximum Sequential Read | 7.03 GB/s |
| Maximum Sequential Write | 4.69 GB/s |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 5.0 x2 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | E1.S (9.5 mm) |
| Height | 0.4" |
| Width | 1.3" |
| Length | 4.7" |
| Weight (Approximate) | 2.65 oz |
| Miscellaneous | |
| Device Supported | Storage System |
| Device Supported | Server |
