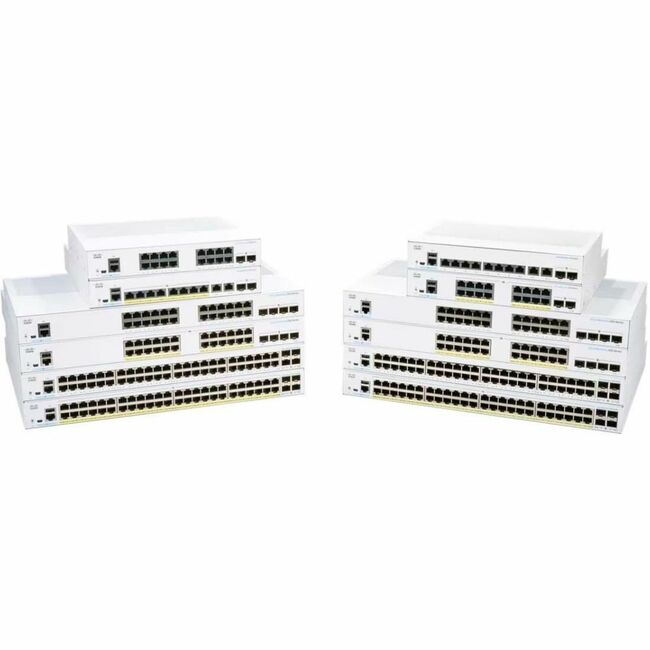

The Cisco Business 250 Series is the next generation of affordable smart switches that combine powerful network performance and reliability with a complete suite of the network features you need for a solid business network. These powerful Gigabit Ethernet switches, with Gigabit or 10 Gigabit Ethernet uplinks, provide multiple management options, sophisticated security capabilities, and fine-tuned Quality of Service (QoS) and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. And with an easy-to-use web user interface and Power over Ethernet Plus (PoE+) capability, you can deploy and configure a complete business network in minutes.
Business applications
Whether you need basic, high-speed connectivity for your computers and servers or a comprehensive voice, data, and wireless technology solution, Cisco Business 250 Series switches can meet your business needs. Possible deployment scenarios include:
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CBS250-8FP-E-2G-BR |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Business |
| Product Series | 250 |
| Product Model | CBS250-8FP-E-2G |
| Product Name | Business 250 CBS250-8FP-E-2G Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 10 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Combo |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.11ac |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | AC |
| Power Source | Power Adapter |
| Power Source | PoE |
| Power Consumption | 17.07 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 7.3" |
| Width | 10.6" |
| Depth | 1.7" |
| Weight (Approximate) | 7.72 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Business |
| Application/Usage | IP Phone |
| Application/Usage | Small Office |
| Application/Usage | Wireless Access Point |
| Application/Usage | Network |
| Application/Usage | Enterprise |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
