The Polar X2 passes the four strict power excursion tests from PSU ATX 3.0 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100µs.
The modular 12+4pin, 12VHPWR, cable delivers perfect power supplies for Nvidia® GeForce RTX® 40 Series graphics cards. Without any 6+2pin adaptor, the 650mm length can reduce connection risk while the PC installation.
COUGAR will present the first Platinum efficiency PSU Series, POLAR X2 1200 and 1050. The 100% Japanese capacitors and 50°C ambient operations with LLC, DC-DC structure generate an environmentally friendly PSU with high-efficiency performance. The fine-tune HDB fan with zero noise mode will also provide the perfect experience for all users in different conditions.
LOW ENERGY LOSS | EVERY OUTPUT IS WORTH SAVING | Save the Earth with Lesser Energy Loss
ZERO NOISE MODE | ULTRA-SILENCE AT HIGH OUTPUT | Lower Heat Emission for Steady Temperature

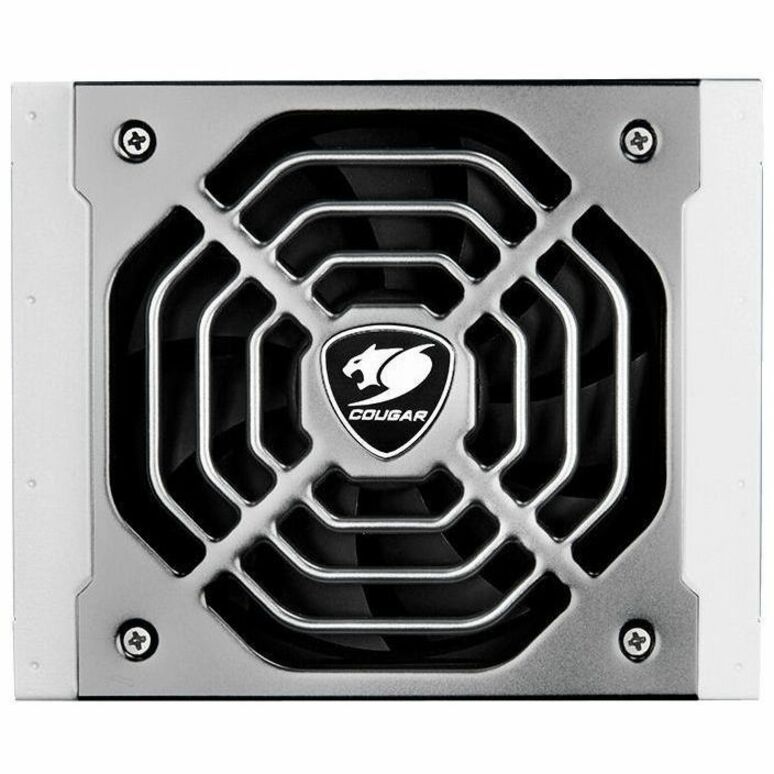

Using COUGAR's 135mm HDB silent fan and large inhalation punched hole, the advanced frame increase the concentration of airflow and its fan curvature has been fine-tuned to reduce vibration.
JAPANESE CAPACITORS | REFIND ELECTRONIC SOLUTION | Reduce the E-waste for the Next Generation
Features | Support PCI Express 5.0 Graphics Cards 12+4 Pin Connector
Connect the 12VHPWR with true 200% power excursion dynamic outputs
80PLUS Platinum Certified
Up to 92% efficiency power conversion to cut down your electricity bill
Durable HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels
100% Refined Japanese Capacitors
Outstanding components extend the longevity of PSU.
Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow
Zero Noise Mode and Fan Curve Tuning
Advanced technology for noise minimization
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms
Flawless Operation at 50°C
Powerful performance at 50°C ambient temperature
| General Information | |
| Manufacturer | COMPUCASE ENTERPRISE CO., LTD |
| Manufacturer Part Number | POLAR X2 1050 |
| Manufacturer Website Address | http://www.cougargaming.com |
| Brand Name | COUGAR |
| Product Line | Polar X2 |
| Product Name | Polar X2 1050W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.0 |
| Efficiency | 92% |
| Number of Fans | 1 |
| Fan Diameter | 135 mm |
| Protection Type | Over Power |
| Protection Type | Under Voltage |
| Protection Type | Short Circuit |
| Protection Type | Over Voltage |
| Protection Type | Over Temperature |
| Protection Type | Over Current |
| Modular | Yes |
| NVIDIA SLI Supported | Yes |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 5 V SB |
| Output Voltage | 5 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 12 V DC |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Output Voltage Detail | 5 V DC @ 20 A |
| Output Voltage Detail | 12 V DC @ 87.5 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 5 V SB @ 3 A |
| Output Power | 1050 W |
| Input Frequency | 63Hz |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 12 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 7 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4" |
| Width | 5.9" |
| Weight (Approximate) | 4.61 lb |
| Miscellaneous | |
| Certifications & Standards |
|
| Energy Efficiency Certification | 80 Plus Platinum |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
