HANWHA TECHWIN

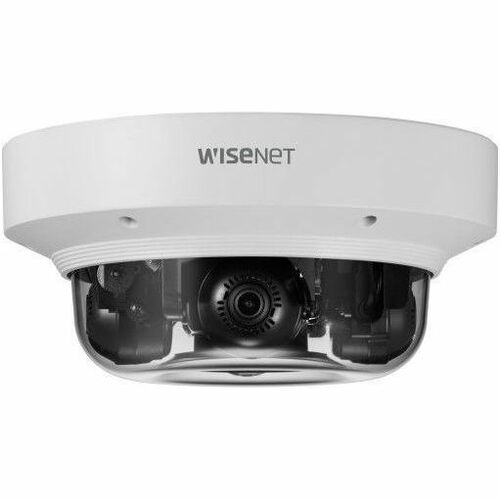

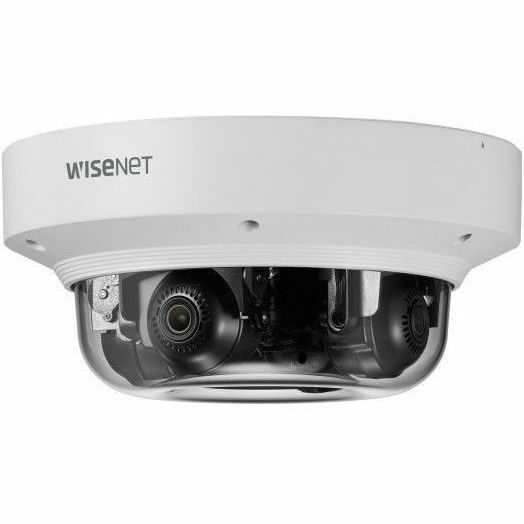

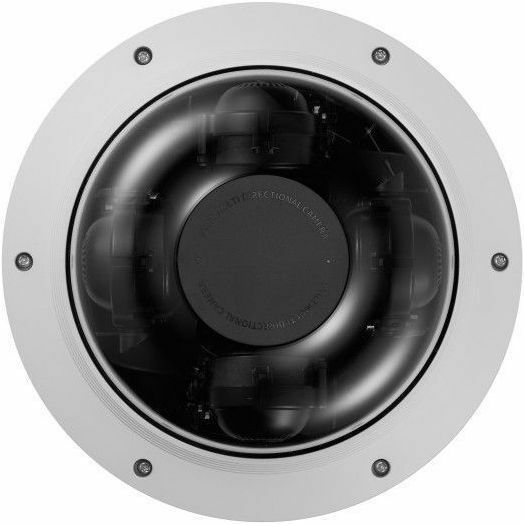

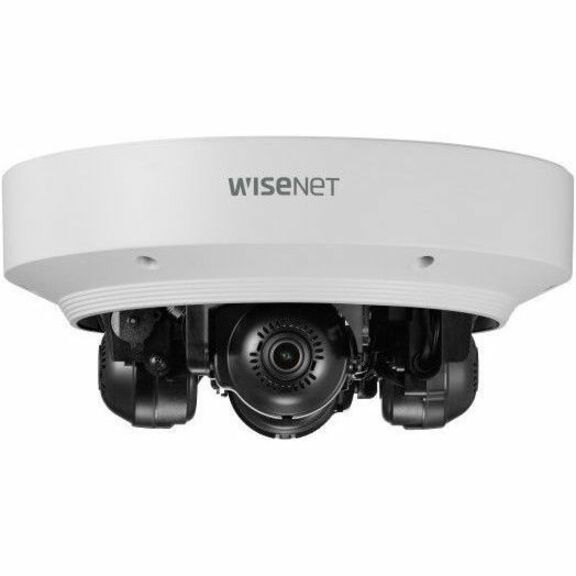

HANWHA TECHWIN PNM-9084QZ1/KUS 2MP X 4 outdoor Dome PTRZ - TAA Compliant Wisenet P series network vandal outdoor Multi-sensor Multi-Directional dome camera (2MP X 4 sensors) 8MP @ 60fps motorized vari-focal lens 2x (3.0~6.0mm) (107 ~56.3 ) PTRZ (Pan/Tilt/Rotate/Zoom)
Mfg Part Number: PNM-9084QZ1/KUS , Item #: 4809755
Image may not reflect the actual item.
Price: $1,715.71
+ Free Shipping
Quantity:
More to Come
Last Updated: Jul 14, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNM9084QZ1KUS |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | P |
| Product Model | PNM-9084QZ1 |
| Product Name | 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 107°(Wide)~56.3°(Tele) / V: 57°(Wide)~31.5°(Tele) / D: 126°(Wide)~64.3°(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Number of Sensors | 4 |
| Video | |
| Video Formats | H.264M |
| Video Formats | H.265H |
| Video Formats | H.264H |
| Video Formats | MJPEG |
| Video Formats | H.265B |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Video Formats | H.264B |
| Video Formats | H.265M |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3 mm |
| Maximum Focal Length | 6 mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.1 |
| Maximum Aperture | f/2.2 |
| Optical Zoom | 2x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | PIM-SM |
| Protocols | UDP/IP |
| Protocols | RTSP |
| Protocols | QoS |
| Protocols | IPv4 |
| Protocols | RTP/TCP |
| Protocols | ARP |
| Protocols | DNS |
| Protocols | UPnP |
| Protocols | ONVIF |
| Protocols | IPv6 |
| Protocols | NTP |
| Protocols | SNMPv1/v2c/v3 (MIB2) |
| Protocols | RTP/UDP |
| Protocols | DDNS |
| Protocols | LLDP |
| Protocols | TCP/IP |
| Protocols | RTCP |
| Protocols | HTTP |
| Protocols | FTP |
| Protocols | IGMP |
| Protocols | Bonjour |
| Protocols | HTTPS |
| Protocols | SSL/TLS |
| Protocols | DHCP |
| Protocols | SMTP |
| Protocols | ICMP |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | HPoE |
| Physical Characteristics | |
| Mount Type | Hanging Mount |
| Mount Type | Gang Box Mount |
| Mount Type | Conduit Mount |
| Mount Type | Rack Mount |
| Mount Type | Desk Mount |
| Mount Type | Wall Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | White |
| Diameter | 9.9" |
| Weight (Approximate) | 6.61 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Gain Control |
| Features | Digital Image Stabilization |
| Features | Wide Dynamic Range |
| Features | Back Light Compensation (BLC) |
| Features | Digital Noise Reduction |
| Features | Highlight Compensation (HLC) |
| Features | Privacy Masking |
| Features | White Balance |
| Features | Day/Night |
| Features | Motion Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
