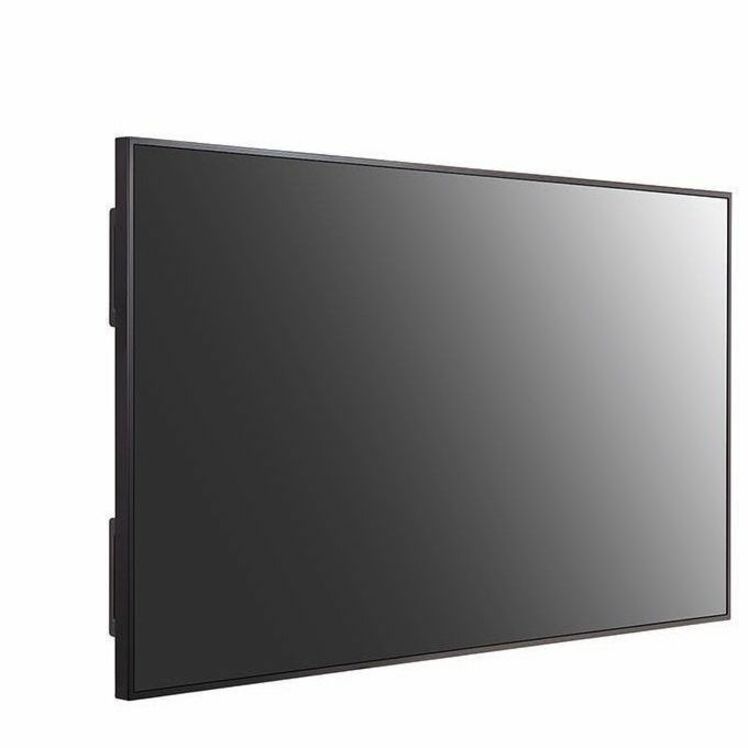

LG 86UH5J-H 86IN LCD 3840X2160 UHD TAA MNTR 24/7 LANDPORT HDMI DP WEBOS 6.0 SPK

Mfg Part Number:  86UH5J-H

Special Note: Dec 12, 2022
NCNR; If you do not have loading facility, please contact our CST for special handling service.

Image may not reflect the actual item.
Price: $6,733.29 + Free Shipping
Quantity:
In Stock: 105
Last Updated: Jan 14, 2026
No Sales Tax except these states
, PO and Wire.

New High Haze UHD Standard Signage | Proper Display Brightness

With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.

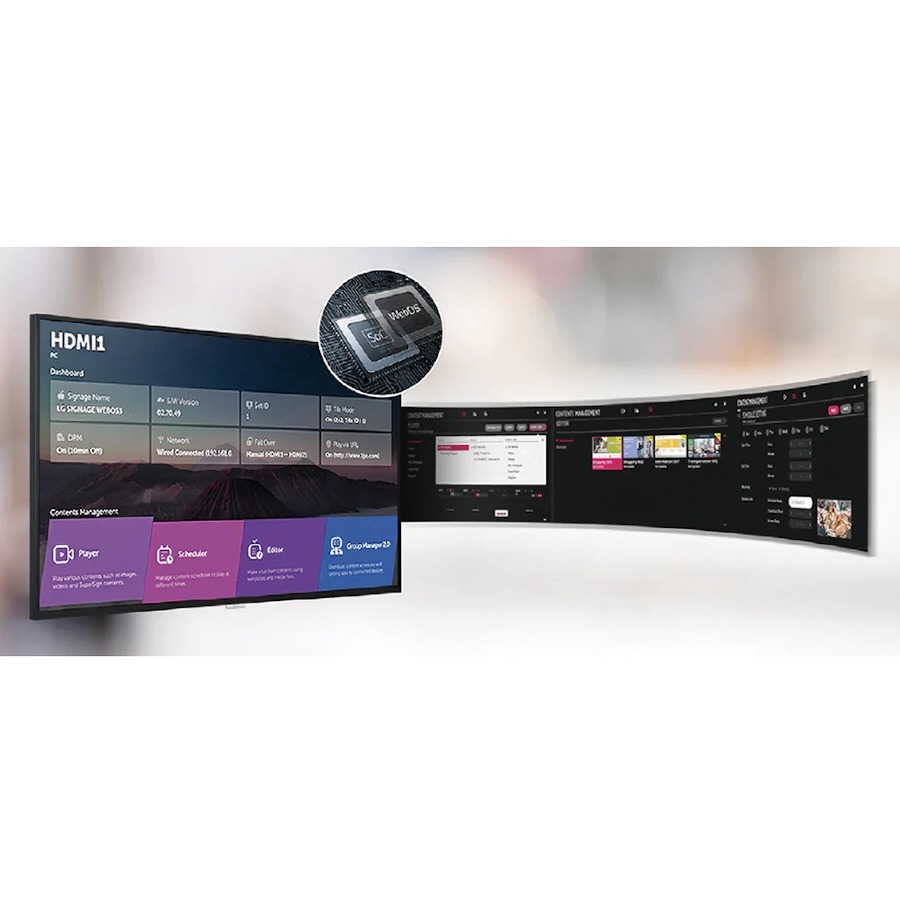

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

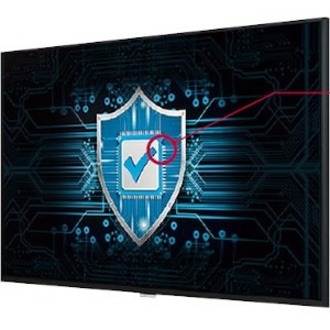

Conformal Coating

In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.

Mobile Content Management

You can create a store profile and get template recommendations using the Promota app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.

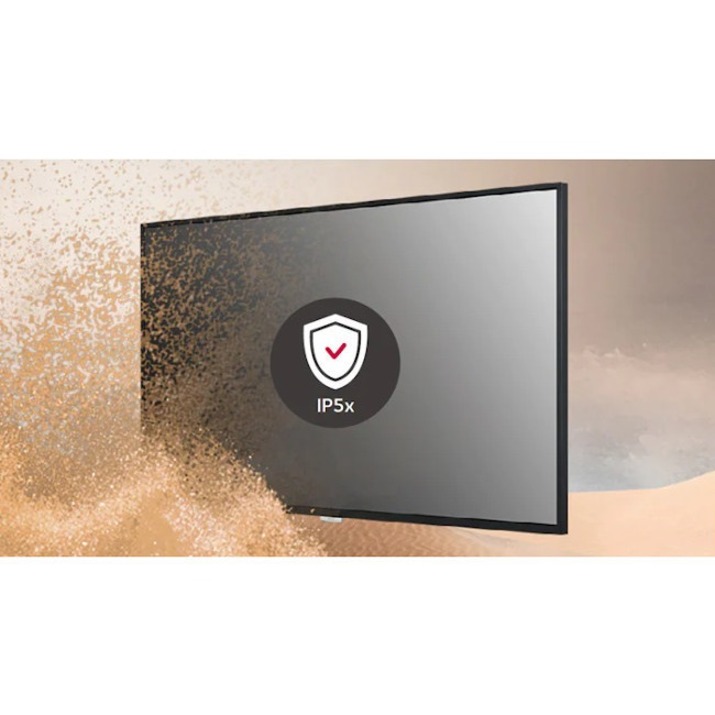

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

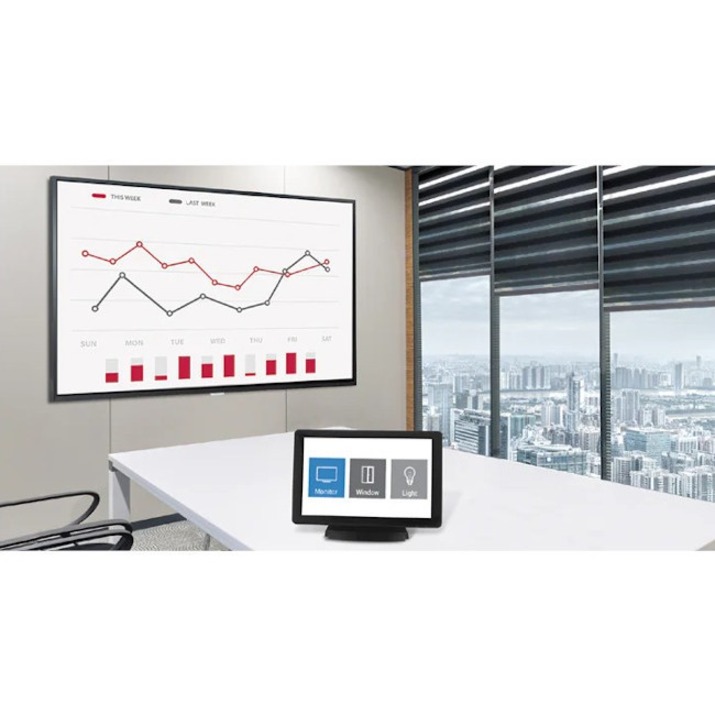

Compatible with AV Control System

The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

More from the Manufacturer

Main Specification
General Information
Manufacturer LG Electronics
Manufacturer Part Number 86UH5JH
Manufacturer Website Address https://solutions.lg.com/us
Brand Name LG
Product Model 86UH5J-H

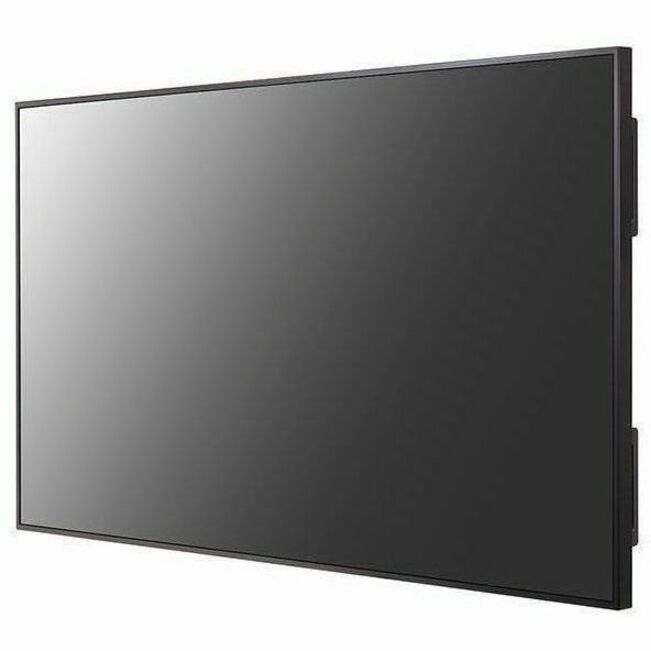

Product Name 86" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating
Product Type Digital Signage Display
Technical Information
Features SNMP Manageable
Features Control Manager
Features Conformal Coating (Power Board)
Features Auto Set ID
Features HDMI (CEC)
Features Temperature Sensor
Features Smart Energy Saving
Features Picture in Picture
Features Pro:Idiom
Features External Input Rotation
Features Booting Logo Image
Features FailOver
Features Group Manager
Features Daisy Chain Connectivity
Features Brightness Sensor
Features Tile Mode Setting (15 × 15)
Features Gyroscopic Sensor
Features Picture by Picture (PbP)

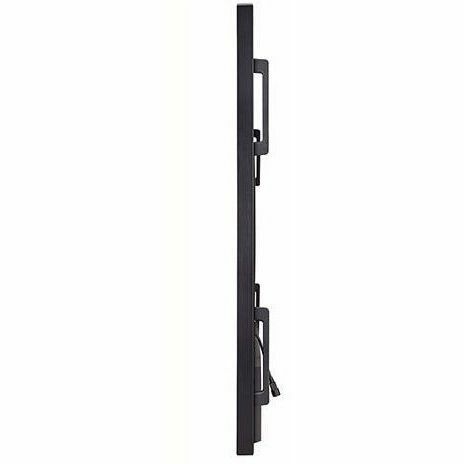

Features Carrying Handle
Features ConnectedCare
Features Crestron Connected
Features Wake on LAN (WOL)
On Screen Display (OSD) Languages Turkish
On Screen Display (OSD) Languages Norwegian
On Screen Display (OSD) Languages Finnish
On Screen Display (OSD) Languages Arabic
On Screen Display (OSD) Languages Simplified Chinese
On Screen Display (OSD) Languages Russian
On Screen Display (OSD) Languages Portuguese (Europe)
On Screen Display (OSD) Languages Korean
On Screen Display (OSD) Languages Japanese
On Screen Display (OSD) Languages Spanish
On Screen Display (OSD) Languages Italian
On Screen Display (OSD) Languages Swedish
On Screen Display (OSD) Languages Greek
On Screen Display (OSD) Languages Czech
On Screen Display (OSD) Languages French
On Screen Display (OSD) Languages Dutch
On Screen Display (OSD) Languages Chinese
On Screen Display (OSD) Languages Brazilian Portuguese
On Screen Display (OSD) Languages English
On Screen Display (OSD) Languages German
On Screen Display (OSD) Languages Danish
HDCP Version 1.4/2.2
Panel Technology In-plane Switching (IPS) Technology
Operation Hours 24 Hours/7 Days
Maximum Heat Generation 936.9 kJ
Content Synchronization RS-232C
Embedded CMS Local Contents Scheduling
Image Sticking Minimization (ISM) Method Yes
Display & Graphics
Viewable Screen Size 86"
Multi-touch Screen No
Display Resolution 3840 x 2160
Response Time 8 ms
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Backlight Technology Edge LED
Orientation Landscape/Portrait
Maximum LED Life 5.7 Year
Audio
Speakers No
Video
Standard Refresh Rate 120 Hz
Dynamic Contrast Ratio 100,000,0:1
Native Contrast Ratio 1,100:1
Color Depth 10-bit
Brightness 500 Nit
Color Gamut 95% BT.709
Network & Communication
Wireless LAN Yes
Bluetooth No
Interfaces/Ports
HDMI Yes
Network (RJ-45) No
Audio Line In Yes
Audio Line Out Yes
Number of USB 2.0 Ports 1
Number of HDMI Inputs 3
Number of HDMI Outputs 1
USB Type-C No
DisplayPort Output No
RS-232C Input Yes
RS-232C Output Yes
Number of Network (RJ-45) Ports 1
Number of Audio Line Out 1
DVI-D In Yes
DisplayPort In Yes
Infrared Output No
Software
Operating System webOS 6.0
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Power Consumption 260 W
Off-Mode Power Consumption 500 mW
Power Consumption (DPM) 0.5W
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Minimum Operating Humidity 10%
Maximum Operating Humidity 80%
Physical Characteristics
Bezel Color Black
VESA Mount Standard 600 x 400
Height 43.2"
Width 75.8"
Depth 2.4"
Weight (Approximate) 108 lb
Miscellaneous
Package Contents
  • Remote Controller (include battery 2ea)
  • Power Cord
  • QSG
  • Regulation Book
  • Phone to RS232C Gender
    		•
    Additional Information
  • Surface Treatment (Hard Coating) : No
  • Surface Treatment (Anti Glare) : No
  • Anti-Reflective : No
  • Transparency : No
  • Internal Memory : 16 GB (eMMC)
  • Cisco Certified Compatibility : No
  • BTU Heat Generation (Typ.) : 683 BTU
  • Direct Sunlight : No
  • Bezel Width (Off Bezel) : 14.3 mm
  • External Speaker Out (3.5 mm) : No
  • Power Loop Out : No
  • Power Loop In : No
  • RGB In : No
  • Power In (DC From External PWR Box) : No
  • Anti-Reflective Coating : No
  • Heater : No
  • Anti-Reflective Film : No
  • Heat Dissipation : No
  • Degree of Protection : No
  • OPS Power Built-in : No
  • OPS Compatible : No
  • UL Certification : No
  • DisplayPort In : Yes (x1) HDCP 2.2/1.3
  • IR In (3.5 mm) : Yes
  • RS-232C In (3.5 mm 4-pin) : Yes (x1)
  • RS-232C In (D-sub 9-pin) : No
  • RS-232C Out (3.5 mm) : Yes (x1)
  • Power Type : Built-in Power
  • Local Key Operation: Yes
    		•
    Certifications & Standards
  • FCC: EMC Class A
  • CE Marking (Regulatory): Yes
    		•
    Energy Star Yes
    Environmentally Friendly Yes
    Environmental Certification ErP
    Energy Efficiency Compliance Energy-related Products Directive (ErP)
    Country of Assembly Mexico
    TAA Compliant No
    Compatible Software SuperSign
    Compatible Software SuperSign CMS
    Compatible Software Mobile CMS
    Compatible Software SuperSign Control+
    Warranty
    Limited Warranty 3 Year
