HIGHLIGHTSThe compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

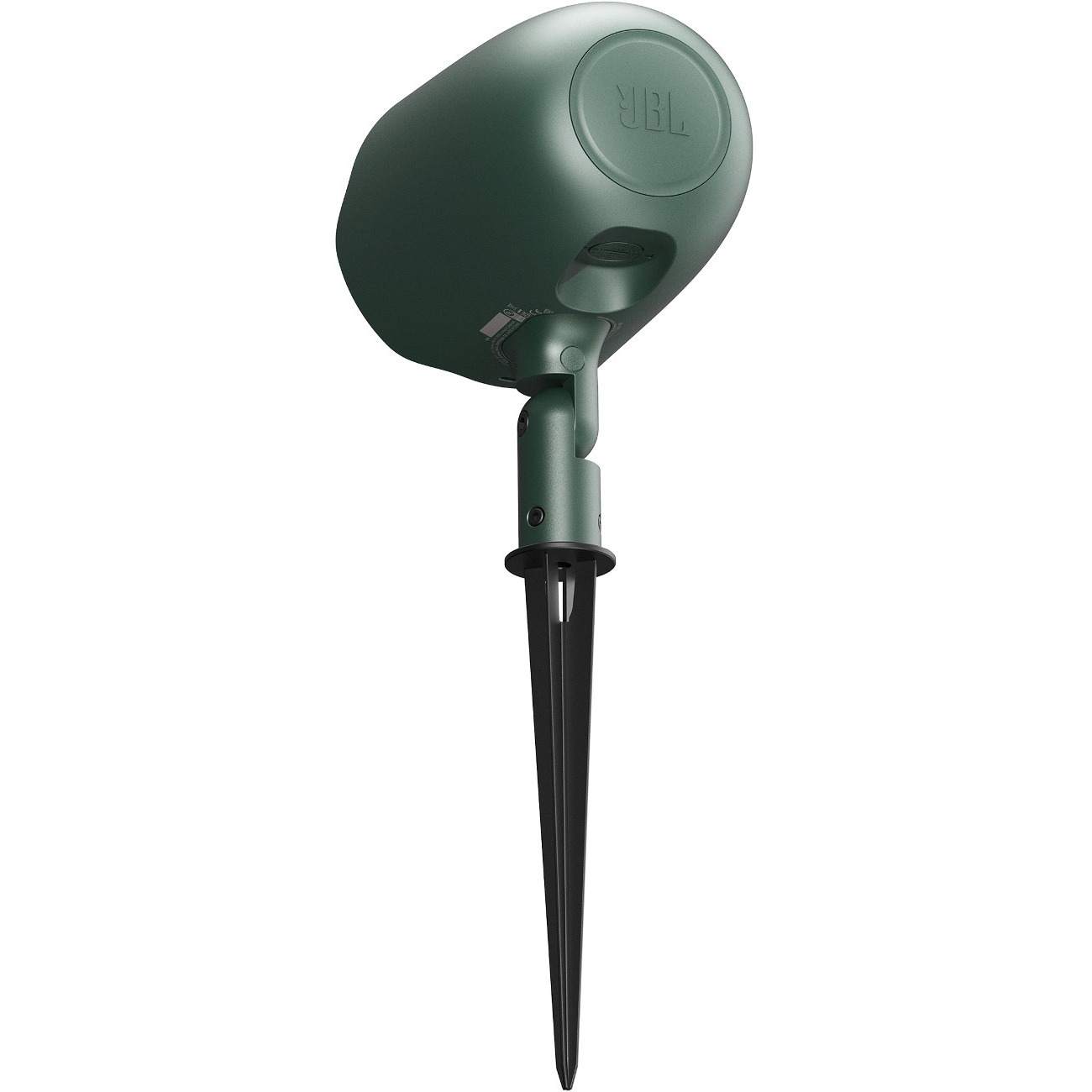

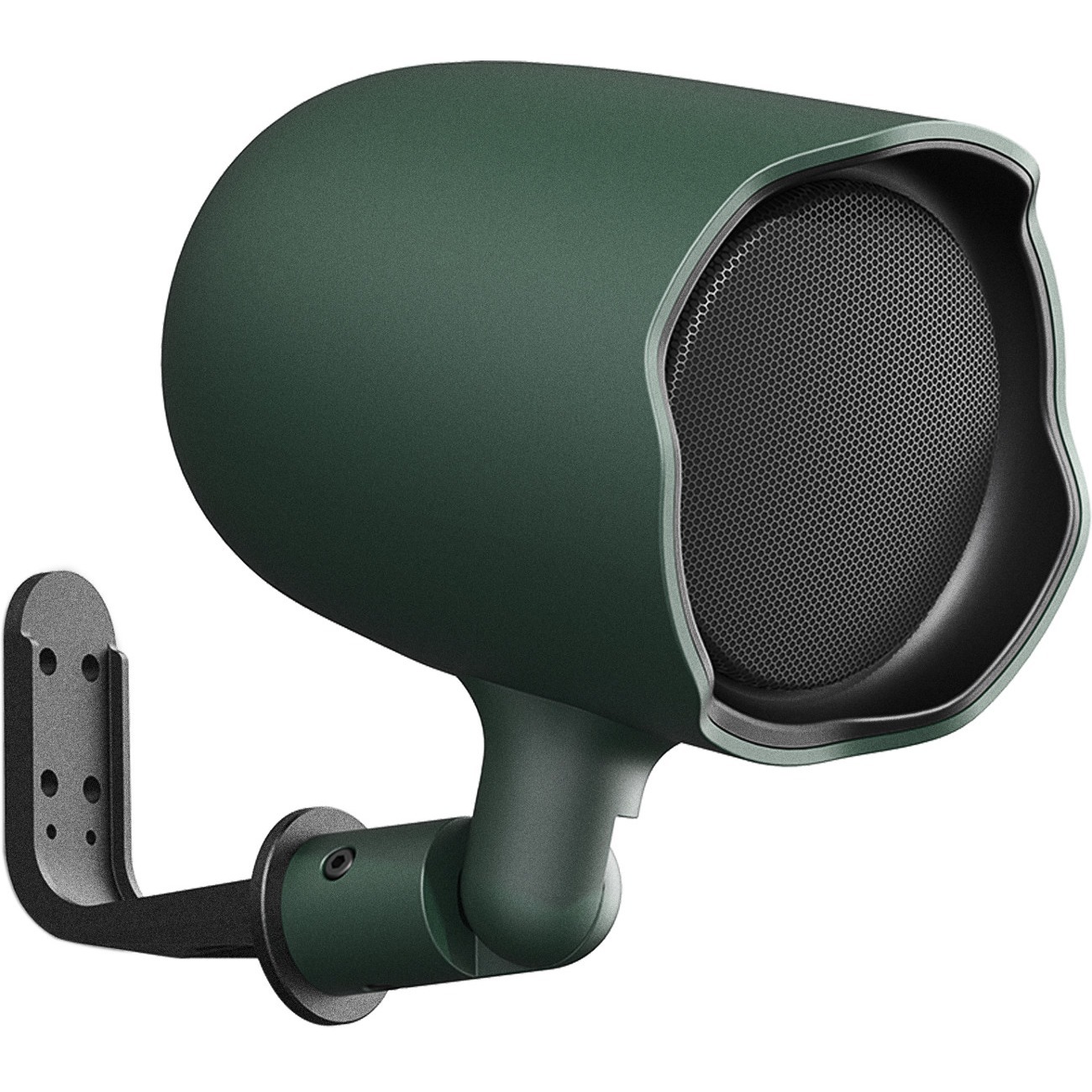

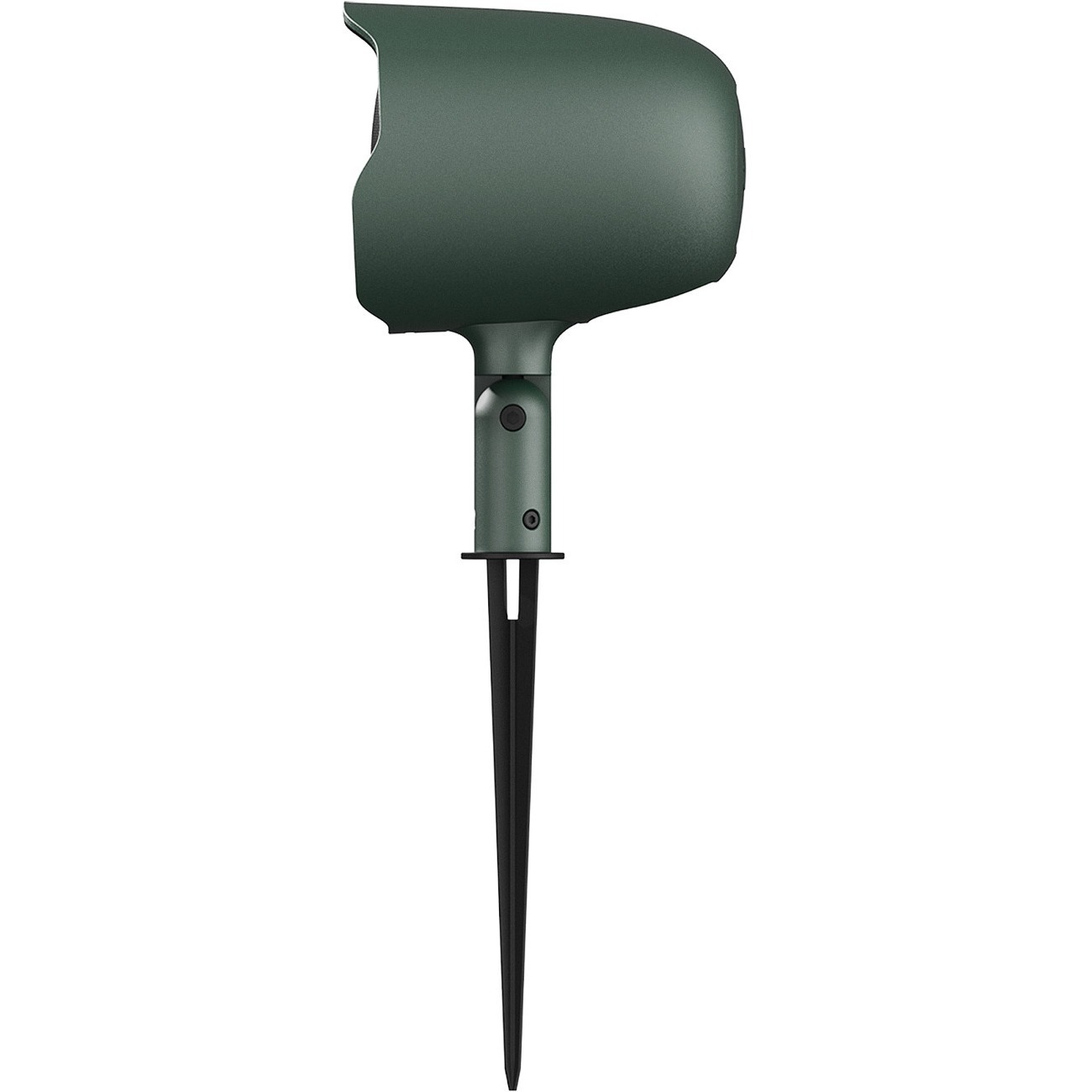

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.
The elegant, discreet GSF3-winner of the prestigious RedDot international design award for industrial design excellence-is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.
Main Specification
| General Information |
| Manufacturer |
Harman International Industries, Inc |
| Manufacturer Part Number |
JBL-GSF3-GN |
| Manufacturer Website Address |
http://www.harman.com |
| Brand Name |
JBL Professional |
| Product Model |
GSF3 |
| Product Name |
GSF3 Landscape Speaker |
| Packaged Quantity |
1 |
| Product Type |
Speaker |
| Technical Information |
| Crossover Type |
2-way |
| RMS Output Power |
30 W |
| PMPO Output Power |
120 W |
| Woofer Driver Size |
3" |
| Woofer Driver Material |
Polypropylene Cone |
| Tweeter Driver Size |
0.80" |
| Tweeter Driver Material |
Titanium Dome |
| Minimum Frequency Response |
90 Hz |
| Maximum Frequency Response |
20 kHz |
| Impedance |
8 Ohm |
| Sensitivity |
80 dB |
| Ingress Protection (IP) Rating |
IP56 |
| Physical Characteristics |
| Product Color |
Green |
| Box Material |
Polycarbonate/Acrylonitrile Butadiene Styrene (PC/ABS) |
| Form Factor |
Surface Mount |
| Speaker Installation |
Outdoor |
| Height |
6.6" |
| Depth |
5.16" |
| Miscellaneous |
| Package Contents |
- GSF3 Landscape Speaker
- 1 x Ground Stake Bracket
- 1 x L-Bracket
|
| Application/Usage |
Shopping Mall |
| Application/Usage |
Sport Center |
| Application/Usage |
Commercial |
| Application/Usage |
Amusement Park |
| Application/Usage |
Hospitality |
| Application/Usage |
Professional |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
