B+B SmartWorx/Advantech

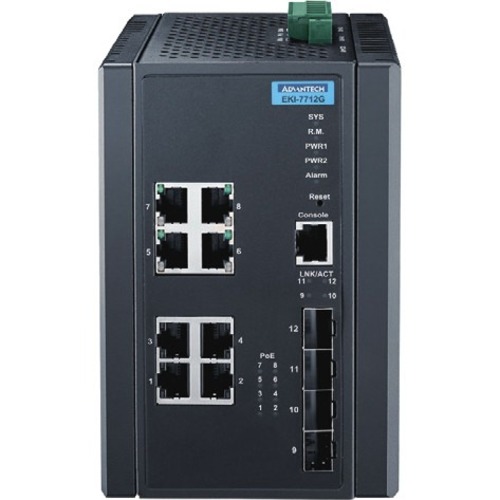

B+B SmartWorx/Advantech EKI-7712G-4FMPI-AU 8G+4SFP WITH MEGA POE WIDE TEMP
Mfg Part Number: EKI-7712G-4FMPI-AU , Item #: 4738314
Image may not reflect the actual item.
Price: $2,095.83
+ Free Shipping
Quantity:
More to Come
Last Updated: Jul 02, 2025
No Sales Tax except these states
, PO and Wire.
The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x IEEE 802.3af/at PoE Gigabit ports, 2 x IEEE 802.3bt PoE Gigabit ports, and 4 x SFP ports, EKI-7712G-4FMPI provides multiple usages for different scenarios. The EKI-7712G-4FMPI is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. It is also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms to ensure network stability.
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | EKI-7712G-4FMPI-AU |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | B+B SmartWorx |
| Product Series | EKI-7712G |
| Product Model | EKI-7712G-4FMPI |
| Product Name | EKI-7712G-4FMPI Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | 1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.3bt |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Input Voltage | 55 V DC |
| Power Source | DC |
| Power Consumption | 12 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Height | 6" |
| Width | 3.8" |
| Depth | 4.1" |
| Weight (Approximate) | 2.43 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
