LENOVO  Mfg Mini-Store

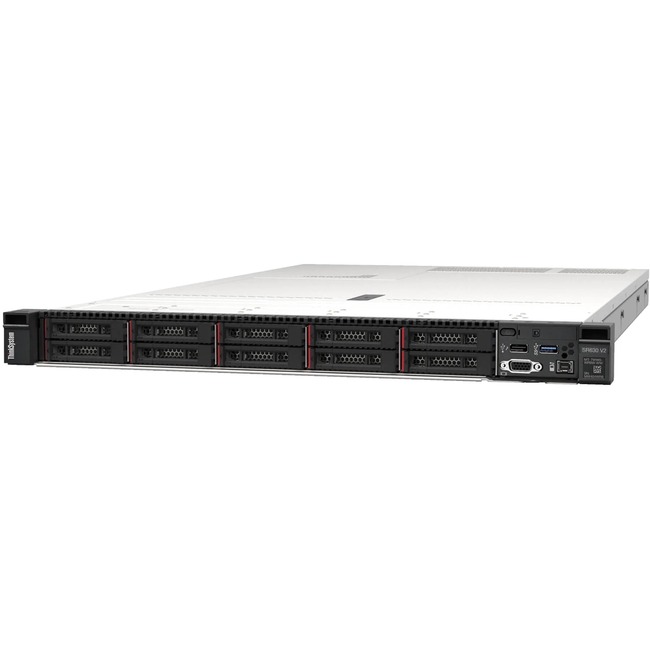

LENOVO 7Z71A06VNA THINKSYSTEM SR630 V2 4316 32GB

Mfg Part Number:  7Z71A06VNA
Image may not reflect the actual item.
Price: $8,017.40 + Free Shipping
Quantity:
More to Come
Last Updated: Aug 20, 2025
No Sales Tax except these states
, PO and Wire.

The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Main Specification
General Information
Manufacturer Lenovo Group Limited
Manufacturer Part Number 7Z71A06VNA
Manufacturer Website Address http://www.lenovo.com/us/en/
Brand Name Lenovo
Product Line ThinkSystem
Product Series SR630 V2
Product Model 7Z71A06VNA
Product Name ThinkSystem SR630 V2 7Z71A06VNA Server
Product Type Server
Processor
Number of Processors Supported 2
Number of Processors Installed 1
Processor Type Xeon Silver
Processor Model 4316
Processor Core Icosa-core (20 Core)
Processor Speed 2.30 GHz
Cache 30 MB
Chipset
Chipset Manufacturer Intel
Chipset Model C621A
Memory
Standard Memory 32 GB
Maximum Memory Supported 8 TB
Memory Technology TruDDR4
Memory Clock Speed 3.20 GHz
Error Checking ECC
Total Number of Memory Slots 32
Number of Occupied Memory Slots 1
Intel Optane Memory Ready Yes
Signal Processing Registered (Buffered)
Storage
Total Hard Drive Capacity No
Optical Drive Type No
Controllers
Controller Type 12Gb/s SAS
Controller Type Serial ATA/600
Controller Model Intel RSTe RAID
RAID Supported Yes
RAID Levels 0, 1, 5, 10, JBOD
I/O Expansions
Hot Swappable Bays Yes
Total Number of Expansion Slots 3
PCI Express Details Slot 1: PCIe 4.0 x16 LP (CPU 1)
PCI Express Details Slot 2: PCIe 4.0 x16 LP or FHHL (CPU 1)
PCI Express Details Slot 3: PCIe 4.0 x16 LP (CPU 2)
Display & Graphics
Graphics Controller Model G200
Graphics Memory Capacity 16 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 6
Number of USB 2.0 Ports 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
VGA Yes
Number of VGA Ports 1
Remote Management Yes
Remote Management Controller XClarity Controller (XCC) Enterprise
Operating System
Operating System Supported Red Hat Enterprise Linux 7.9
Operating System Supported Red Hat Enterprise Linux 8.5
Operating System Supported Ubuntu 20.04 LTS
Operating System Supported Red Hat Enterprise Linux 8.6
Operating System Supported SUSE Linux Enterprise Server 15 SP4
Operating System Supported SUSE Linux Enterprise Server 15 SP2
Operating System Supported Red Hat Enterprise Linux 9.1
Operating System Supported Red Hat Enterprise Linux 8.4
Operating System Supported SUSE Linux Enterprise Server 12 SP5
Operating System Supported Ubuntu 22.04 LTS
Operating System Supported SUSE Linux Enterprise Server 15 SP3
Operating System Supported Red Hat Enterprise Linux 8.2
Operating System Supported Red Hat Enterprise Linux 9.0
Operating System Supported Windows Server 2019
Operating System Supported Windows Server 2022
Operating System Supported Ubuntu 18.04 LTS
Operating System Supported Windows Server 2016
Operating System Supported Red Hat Enterprise Linux 8.3
Operating System Supported Red Hat Enterprise Linux 8.7
Operating System No
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Plug/Connector Type C13/C14
Maximum Power Supply Wattage 750 W
Hot Swappable Power Supply Yes
Power Source Power Supply
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 1.7"
Width 17.3"
Depth 30.4"
Weight (Approximate) 57.98 lb
Miscellaneous
Security Features
  • Chassis Intrusion Switch
  • Power-on Password
  • Administrator's Password
  • Trusted Platform Module (TPM), supporting TPM 2.0
Energy Star Yes
Environmentally Friendly Yes
Energy Efficiency Certification China Energy Conservation Program (CECP)
Energy Efficiency Certification ENERGY STAR 3.0
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
