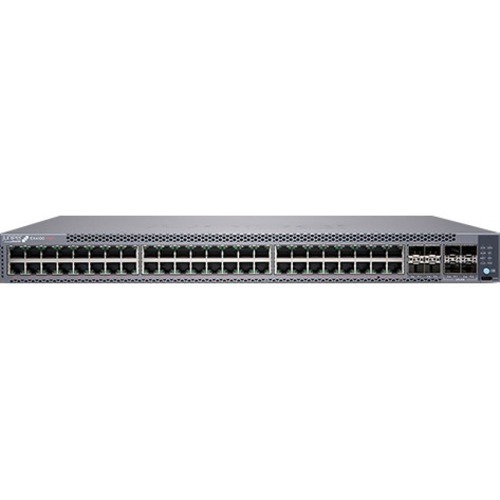

JUNIPER NETWORKS EX4100-48P-CHAS EX4100 48-PORT POE+ SWITCH CHASSIS ONLY. NO FANS OR PSUS

The Juniper Networks® EX4100 line of Ethernet Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4100 switches combine the simplicity of the cloud, the power of Mist AI™ , and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100 line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100 include:

• Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
• Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
• Standards-based microsegmentation using group-based policies (GBPs)
• Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
• IEEE 802.3bt Power over Ethernet Plus (PoE++)
• Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
• Precision Timing Protocol-Transparent Clock
• 10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100 enables multiple deployments, including campus, branch, and data center top-of-rack deployments. As scale requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100 switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100 family of Ethernet switches consists of the following models:

• The EX4100-48MP, which offers 16 x 100 MB/1GbE/2.5GbE and 32 x 10 MB/100MB/1GbE Power over Ethernet (PoE++) access ports, delivering up to 90 W per PoE port with an overall total 1620 W of PoE power budget (using two power supplies)
• The EX4100-24MP, which offers 8 x 100 MB/1GbE/2.5GbE/5GbE/10GbE and 16 x 10 MB/100 MB/1GbE PoE++ access ports, delivering up to 90 W per port with an overall total 1620 W of PoE power budget (using two power supplies)
• The EX4100-24T, which offers 24 x 1GbE non-PoE access ports
• The EX4100-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)
• The EX4100-48T, which offers 48 x 1GbE non PoE-access ports
• The EX4100-48P, which offers 48 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 1440 W of PoE power budget (using two power supplies)

General Information
Manufacturer	Juniper Networks, Inc
Manufacturer Part Number	EX4100-48P-CHAS
Manufacturer Website Address	http://www.juniper.net
Brand Name	Juniper
Product Series	EX4100
Product Name	EX4100 Switch Chassis
Product Type	Switch Chassis
Interfaces/Ports
Total Number of Network Ports	48
Network (RJ-45)	Yes
Port/Expansion Slot Details	48 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.3ax
Networking Standards	IEEE 802.3by
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1ae
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.1ak
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.3bt
Networking Standards	IEEE 802.3ah
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.11ax
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
Input Voltage	120 V AC
Input Voltage	230 V AC
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Wall Mountable
Form Factor	Rack-mountable
Miscellaneous
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime
