NEXT-GEN AMD SOCKET AM5 SUPPORT
AMD Socket AM5 (LGA 1718) is the next-generation socket designed to support next-generation AMD Ryzen™ 7000 desktop processors (Zen 4). AMD Socket AM5 uses the same liquid cooler bracket as Socket AM4. This allows you to upgrade to and enjoy AM5 without buying a new liquid cooler.
POWERED BY MSI
Create and establish the most powerful setup with Powered by MSI products, including PC case, motherboard, liquid cooler, graphics card, and power supply unit.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
LGA 1700 COMPATIBLE
The MAG CORELIQUID V2 Series liquid cooler provides out of box support for LGA 1700.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 240R V2 WHITE's noise level is significantly lower than that of competitor's by 10%
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

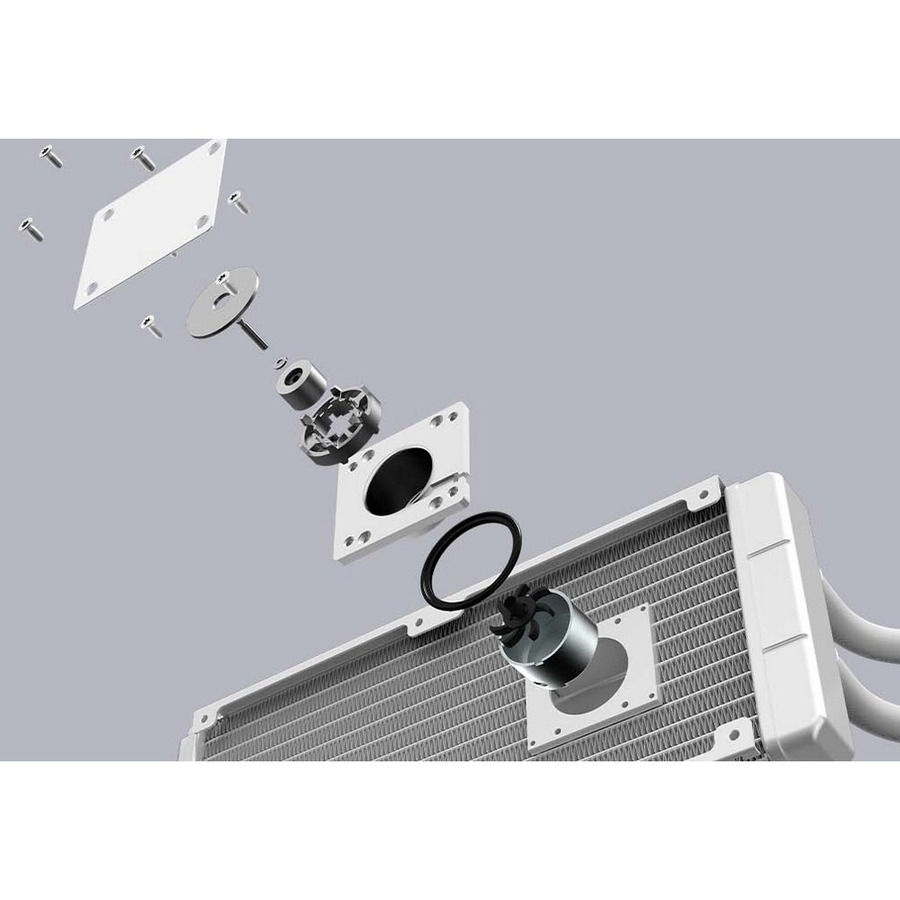

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | CL240RV2WT |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MAG CORELIQUID |
| Product Name | MAG CORELIQUID 240R V2 WHITE |
| Product Type | Cooling Fan/Radiator/Water Block/Pump |
| Fan Information | |
| Number of Fans | 2 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Min) | 500 rpm |
| Fan Speed (Max) | 2000 rpm |
| Minimum Airflow | 21.63 CFM |
| Maximum Airflow | 78.73 CFM |
| Noise Levels (A-Weighted) | 34.3 dB(A) |
| Fan Life | 8.0 Year |
| LED Color | ARGB |
| Maximum Air Pressure | 2.39mmH2O |
| Heatsink Information | |
| Cooler Type | Liquid Cooler |
| Compatible Intel Socket | H LGA-1156 |
| Compatible Intel Socket | H2 LGA-1155 |
| Compatible Intel Socket | LGA 2011-v3 |
| Compatible Intel Socket | B LGA-1366 |
| Compatible Intel Socket | LGA-1200 |
| Compatible Intel Socket | H4 LGA-1151 |
| Compatible Intel Socket | H3 LGA-1150 |
| Compatible Intel Socket | LGA-1700 |
| Compatible Intel Socket | R LGA-2011 |
| Compatible Intel Socket | R4 LGA-2066 |
| Compatible AMD Socket | FM2+ |
| Compatible AMD Socket | AM2+ PGA-940 |
| Compatible AMD Socket | AM4 |
| Compatible AMD Socket | AM5 |
| Compatible AMD Socket | FM1 |
| Compatible AMD Socket | AM3 PGA-941 |
| Compatible AMD Socket | AM2 PGA-940 |
| Compatible AMD Socket | FM2 |
| Compatible AMD Socket | AM3+ |
| Power Description | |
| Rated Current | 150 mA |
| Physical Characteristics | |
| Product Color | White |
| Product Material | Aluminum |
| Material Details | Cold Plate Material : Copper |
| Maximum Fan Diameter | 4.72" |
| Radiator Height | 10.79" |
| Radiator Width | 4.72" |
| Radiator Depth | 1.06" |
| Fan Height | 4.72" |
| Fan Width | 4.72" |
| Fan Depth | 0.98" |
| Water Block Height | 3.17" |
| Water Block Width | 2.63" |
| Water Block Depth | 1.91" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Processor |
