General Information | |
Manufacturer | Hanwha Group |
Manufacturer Part Number | XNDC7083RV |
Manufacturer Website Address | http://www.hanwha.com |
Brand Name | Wisenet |
Product Series | X |
Product Model | XND-C7083RV |

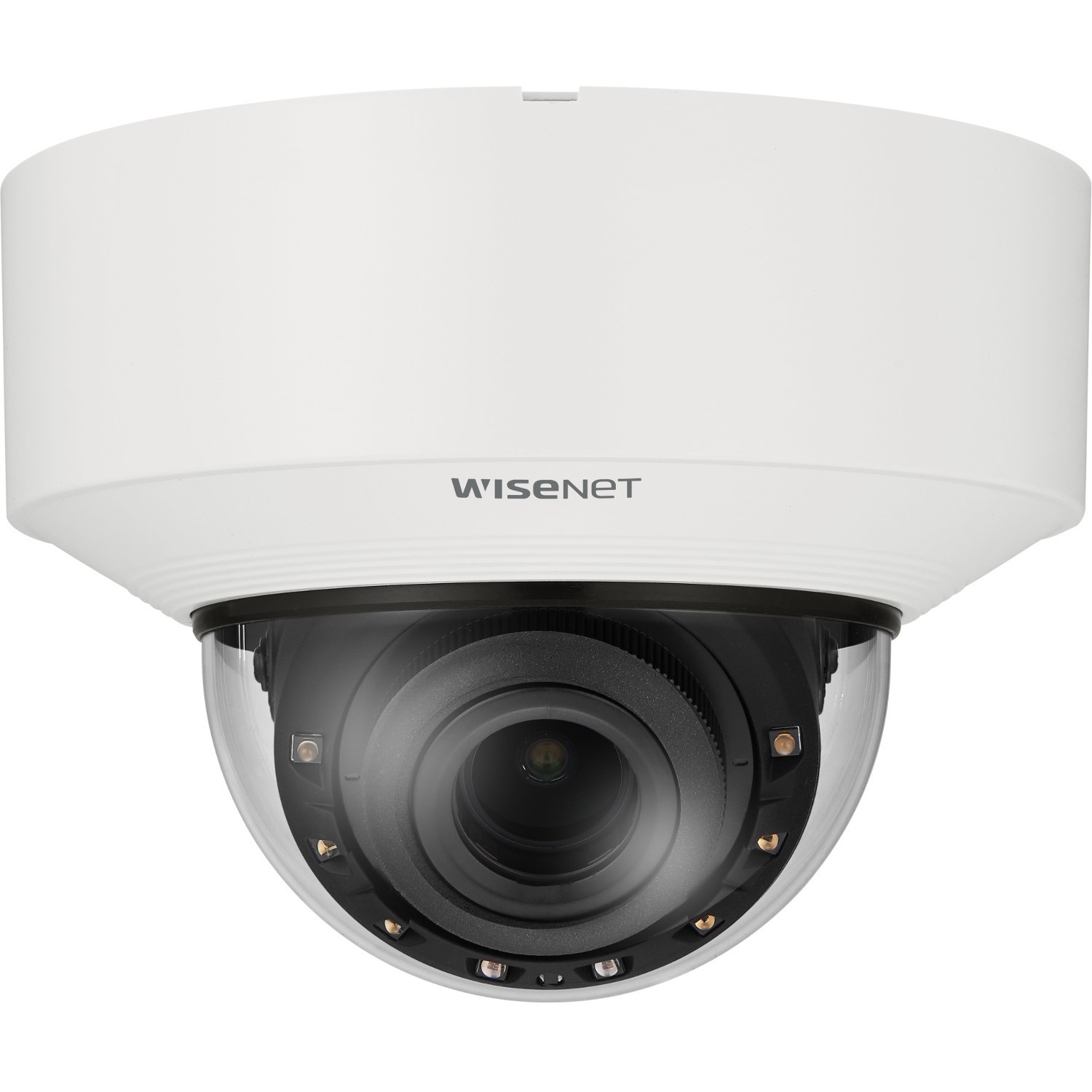

Product Name | 4MP AI IR Dome Camera |
Product Type | Network Camera |
Technical Information | |
HD Recording | Yes |
Night Vision | Yes |
Night Vision Distance | 131.23 ft |
Night Vision Type | Infrared |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Field of View | H: 109.7°(Wide) ~ 30.4°(Tele) V: 60.8°(Wide) ~ 17.8°(Tele) D: 131.3°(Wide) ~ 35.3°(Tele) |
Effective Camera Resolution | 4 Megapixel |
Video | |
Video Formats | H.265 |
Video Formats | H.264 |
Video Formats | H.265M |
Video Formats | Motion JPEG |
Video Formats | H.265H |
Video Formats | H.264M |
Video Formats | H.264H |
Maximum Video Resolution | 2592 x 1520 |
Maximum Frame Rate | 60 fps |
Lens | |
Lens Type | Varifocal |
Minimum Focal Length | 2.80 mm |
Maximum Focal Length | 10 mm |
Lens Included | Yes |
Minimum Aperture | f/3 |
Maximum Aperture | f/1.4 |
Optical Zoom | 3.6x |
Exposure | |
Shortest Shutter Speed | 1/12000 Second |
Longest Shutter Speed | 2 Second |
Network & Communication | |
Connectivity Technology | Wired |
Remote Management | Yes |
Storage | |
Storage Type | Memory Card |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Physical Characteristics | |
Mount Type | Hanging Mount |
Form Factor | Dome |
Color Family | White |
Product Color | White |
Diameter | 6.3" |
Weight (Approximate) | 2.98 lb |
Environmental Conditions | |
Minimum Operating Temperature | 14°F (-10°C) |
Maximum Operating Temperature | 122°F (50°C) |
Maximum Operating Humidity | 95% |
Miscellaneous | |
Features | Privacy Masking |
Features | Motion Detection |
Features | Shock Detection |
Features | Audio Detection |
Features | Digital Noise Reduction |
Features | Day/Night |
Features | SD Card Local Storage |
Features | Back Light Compensation (BLC) |
Features | Gain Control |
Features | Tamper Detection |
Features | Wide Dynamic Range |
Features | Digital Image Stabilization |
Features | Automatic White Balance |
Features | Defog |
Features | Highlight Compensation (HLC) |
Impact Protection Rating | IK08 |
Ingress Protection Rating | IP52 |
