B+B SmartWorx/Advantech IMC-470-MM-US GIGA-MCBASIC-II TX/SX-MM850-SC 856-30601
Mfg Part Number: IMC-470-MM-US , Item #: 4428650

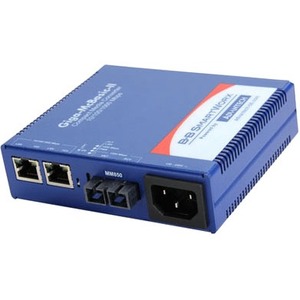

Image may not reflect the actual item.
Price: $466.53
+ Free Shipping
Quantity:
More to Come
Last Updated: May 23, 2025
No Sales Tax except these states
, PO and Wire.
The IMC-450 and 470 series are standalone media converters with an optional internal power security device that makes the connection between copper and fiber cables. It can be installed anywhere a network connection is required. In addition, these media converters feature automatic link restoration. They increase the scalability of a network by providing rate conversion, distance extension, and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connections.
The IMC-450 and 470 support troubleshooting features such as LinkLoss and Fiber Alert which can be enabled/disabled by DIP switches. The diagnostic features allow the network administrator to quickly identify network faults. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port, that is available in an SFP form factor, as well as for fixed-fiber in single-mode and multi-mode. The Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interface.
The IMC-450 and 470 support troubleshooting features such as LinkLoss and Fiber Alert which can be enabled/disabled by DIP switches. The diagnostic features allow the network administrator to quickly identify network faults. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port, that is available in an SFP form factor, as well as for fixed-fiber in single-mode and multi-mode. The Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interface.
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | IMC-470-MM-US |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Line | Giga-McBasic-II |
| Product Series | IMC-470 |
| Product Name | 100Mbps and 10/100/1000Mbps Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0 mil |
| Maximum Distance Supported | 0.55 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-TX |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Form Factor | Standalone |
| Height | 0.8" |
| Width | 4" |
| Depth | 4" |
| Weight (Approximate) | 10.58 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
