SIIG

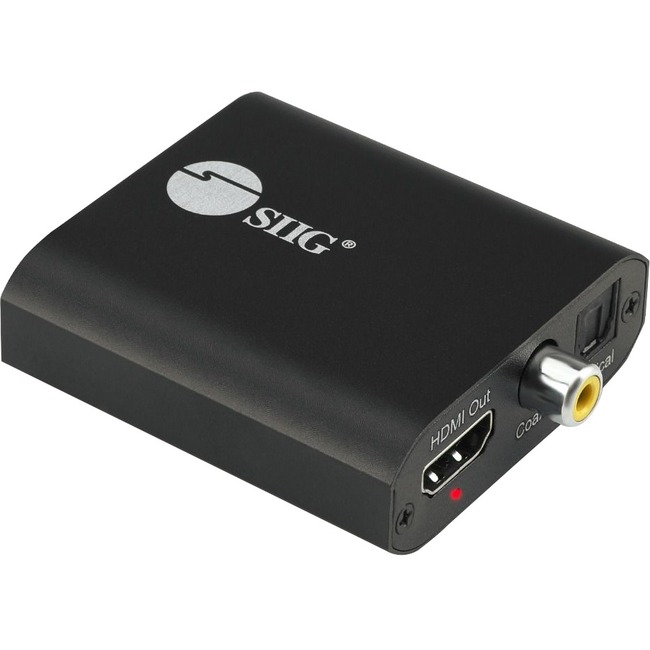

SIIG AC CE-H26Q11-S1 4K HDMI with Audio Extractor Converter Color Box
Mfg Part Number: CE-H26Q11-S1 , Item #: 4306384
Image may not reflect the actual item.
Price: $54.99
+ Free Shipping
Quantity:
In Stock: 536
Last Updated: May 17, 2025
No Sales Tax except these states
, PO and Wire.
Extracts 4K HDMI audio and splits it to analog stereo, Toslink optical digital, and Coaxial S/PDIF outputs
Features
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or
coaxial S/PDIF outputs - Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color
- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
- Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
Main Specification
| General Information | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H26Q11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Name | 4K HDMI with Audio Extractor Converter |
| Product Type | Signal Converter |
| Technical Information | |
| Functions | Audio Extraction |
| Functions | Audio Compression |
| Functions | Signal Conversion |
| Maximum Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Audio Line Out | Yes |
| Physical Characteristics | |
| Form Factor | External |
| Height | 0.8" |
| Width | 2.2" |
| Depth | 2.6" |
| Weight (Approximate) | 0.11 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
