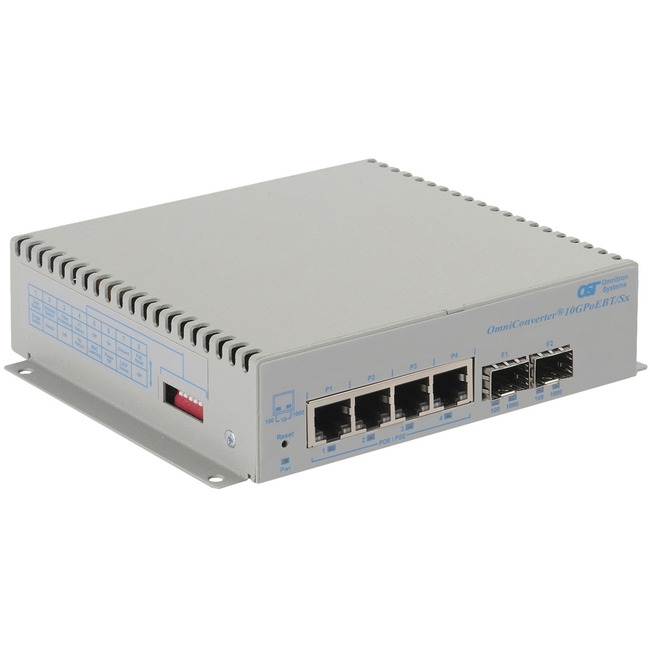

OMNITRON 3062B-0-24-1W OMNICONVERTER 10GPOEBT/SX 100W 2X1G/10G SFP+ TO 4X 10/100/1000T W

The OmniConverter 10GPoEBT/Sx are unmanaged Ethernet switches that feature two 1/10G uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports. The 10GPoEBT/Sx available with 60W or 100W (IEEE 802.3bt) per user port.

The OmniConverter PoE switches are Layer 2 Ethernet switches that forward frames to any port based on their MAC address.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

The switches support Dual Device mode that enables the 10GPoEBT/Sx to operate as two independent and isolated Ethernet switches.

The 10GPoEBT/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the OmniConverter for ease of identification and use.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.

The switches automatically negotiate and deliver the power level required by a Powered Device (PD) partner. Depending on the model of the OmniConverter PoE switch, the switch can deliver up to 60 or 100 Watts of power per user port.

The switches features a Remote PoE Power Reset that can be configured with a DIP-switch. This feature enables the user to remotely power-cycle and reset each PD increasing network reliability, up time and save manpower time and expense by automating the recovery of remote PD equipment.

All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.

General Information
Manufacturer	Omnitron Systems
Manufacturer Part Number	3062B-0-24-1W
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	OmniConverter
Product Series	10GPoEBT/Sx
Product Model	3062B-0-24-1W
Product Name	OmniConverter 10GPoEBT/Sx 3062B-0-24-1W Ethernet Switch
Packaged Quantity	1
Package Type	Retail
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	6
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	2 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	4 x Gigabit Ethernet Hi-PoE
Media & Performance
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Ethernet Technology	10 Gigabit Ethernet
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-LX
Network Technology	1000Base-X
Network Technology	1000Base-LX10
Network Technology	1000Base-BX-D
Network Technology	1000Base-SX
Network Technology	10GBase-ER
Network Technology	1000Base-BX10-U
Network Technology	1000Base-BX
Network Technology	1000Base-LX/SX
Network Technology	10GBase-LRM
Network Technology	1000Base-BX10-D
Network Technology	1000Base-SX/LX
Network Technology	10/100/1000Base-T
Network Technology	1000Base-LX/LH
Network Technology	1000Base-BX-U
Network Technology	10GBase-ZR
Network Technology	1000Base-ZX
Network Technology	10GBase-SR
Network Technology	10GBase-LR
I/O Expansions
Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP+
Shared SFP Slot	No
Number of SFP Slots	2
Network & Communication
Layer Supported	2
Management & Protocols
Manageable	No
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	100 W
Power Source	Power Adapter
Power Consumption	250 W
Plug/Connector Type	Barrel
Physical Characteristics
Form Factor	Rack-mountable
Form Factor	Shelf Mountable
Form Factor	DIN Rail Mountable
Form Factor	Wall Mountable
Height	1.5"
Width	6.3"
Depth	5.2"
Weight (Approximate)	1.60 lb
Miscellaneous
Package Contents	OmniConverter 10GPoEBT/Sx 3062B-0-24-1W Ethernet Switch User Manual AC Adapter
Additional Information	Input Voltage: 3.5A max at 115VAC 2.5A max at 230VAC Operating Temperature Range: -40 to +60 deg C
Certifications & Standards	IEEE 802.3, IEEE 802.3ae IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Safety: UL 60950-1, UL-62368-1, IEC 62368:2014 /A11:2017, IEC 60950-1:2005+A1:2009, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 +A2:2013, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1-14, CE Mark EMC: EN 55032/EN 55024 CE Emissions/Immunity EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal:0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: Signal: 3 V, IEC 61000-4-8 ( Magnetic Field), IEC 61000-4-11 IP Rating: IP20 Protection
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty	5 Year
