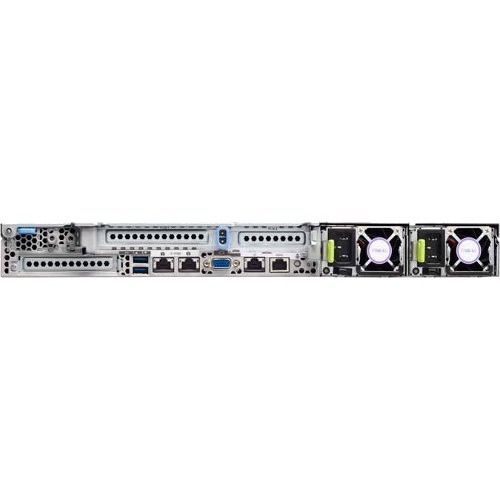

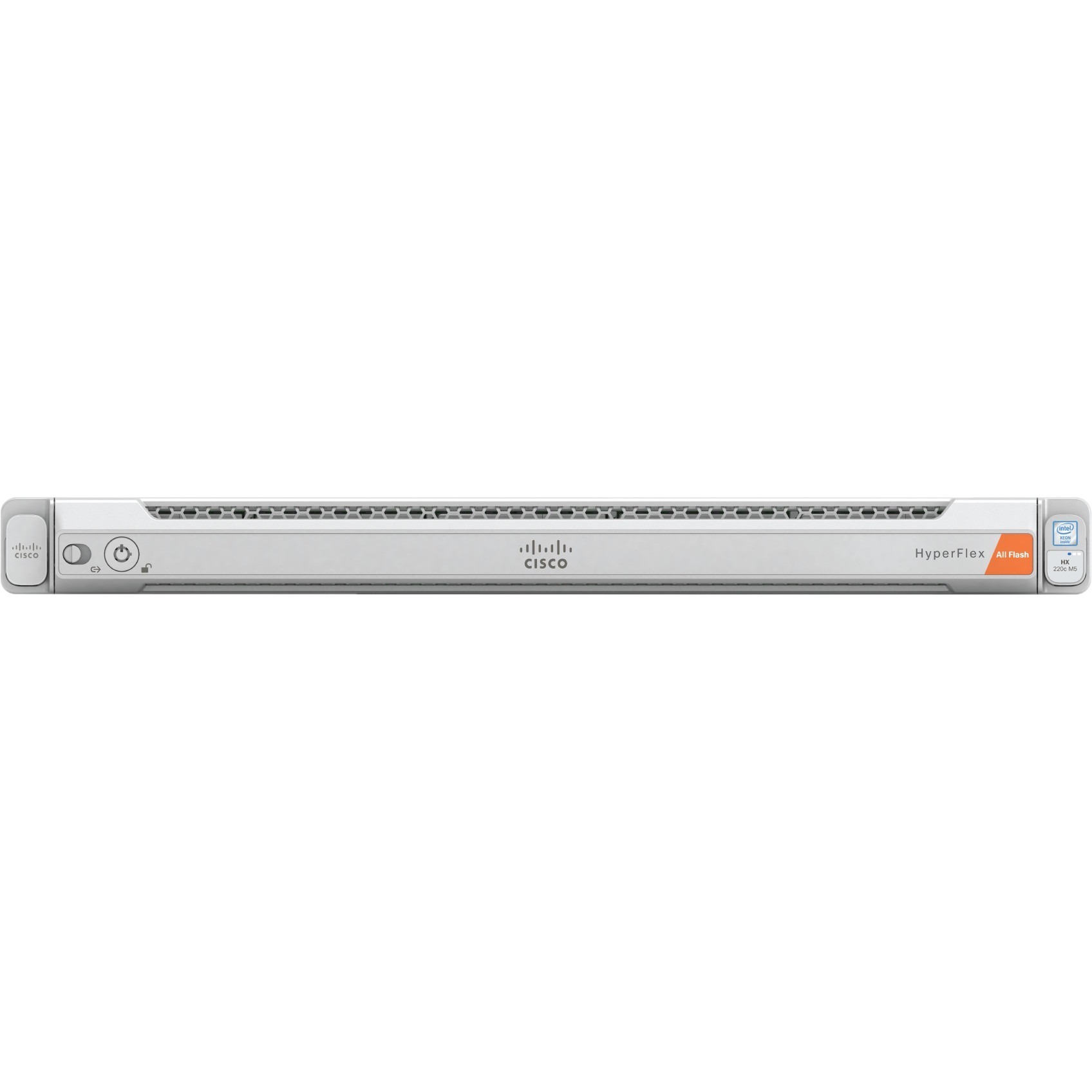

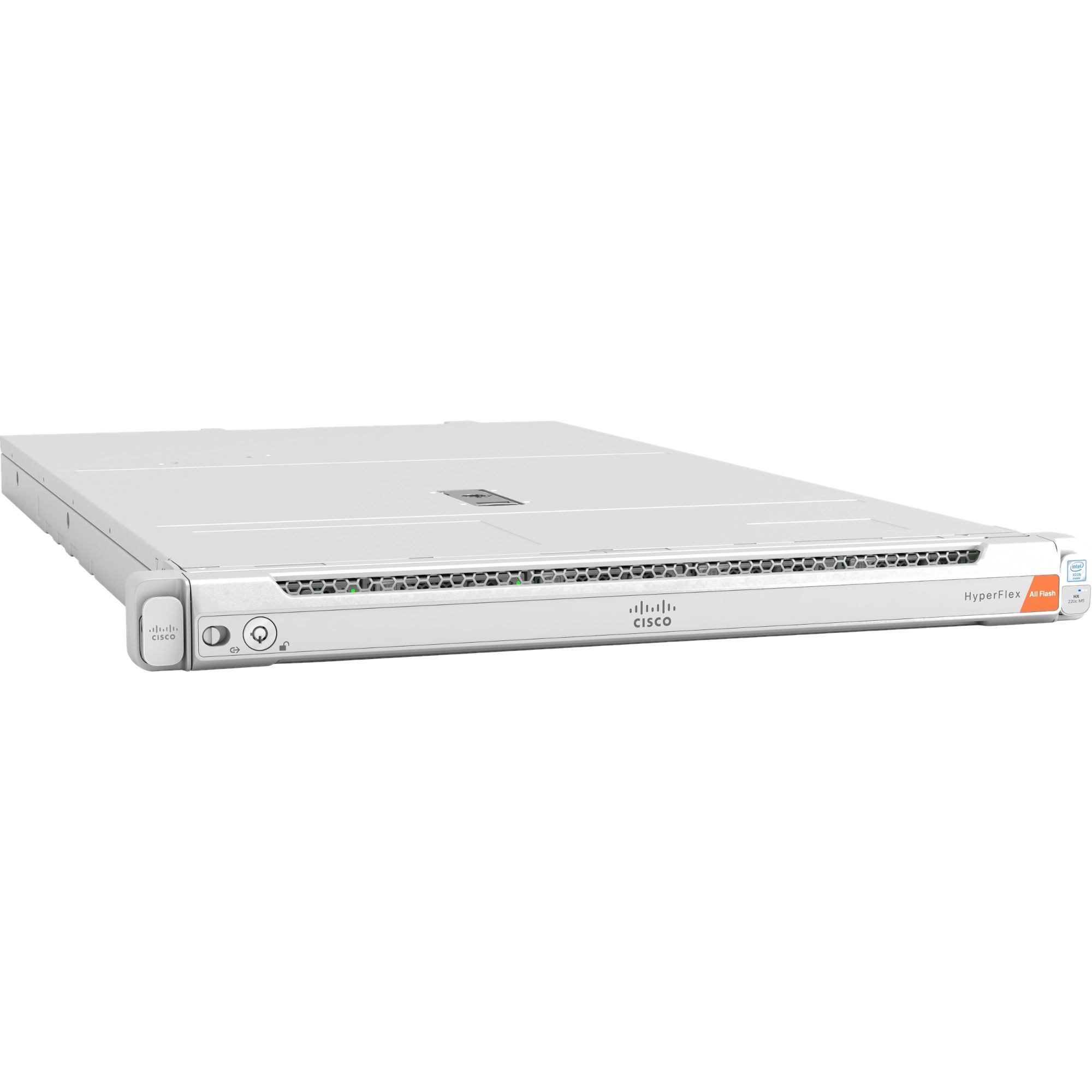

CISCO HXAF-SP-220M5SNC-E SP HXAF220c M5 All NVMe Hyperflex System
Mfg Part Number: HXAF-SP-220M5SNC-E , Item #: 4193225
Image may not reflect the actual item.
Price: $18,775.72
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Dec 13, 2025
No Sales Tax except these states
, PO and Wire.
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
The HXAF220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
The HXAF220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HXAF-SP-220M5SNC-E |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HXAF220c M5 |
| Product Name | HyperFlex HXAF220c M5 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Gold |
| Processor Model | 5220R |
| Processor Speed | 2.20 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Memory | |
| Standard Memory | 256 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Error Checking | ECC |
| Total Number of Memory Slots | 24 |
| Number of Occupied Memory Slots | 8 |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Total Solid State Drive Capacity | 240 GB |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| I/O Expansions | |
| Hot Swappable Bays | Yes |
| Display & Graphics | |
| Graphics Controller Model | Pilot 4 |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 25 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Supported | 2 |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 19" |
| Depth | 31" |
| Weight (Approximate) | 37.50 lb |
