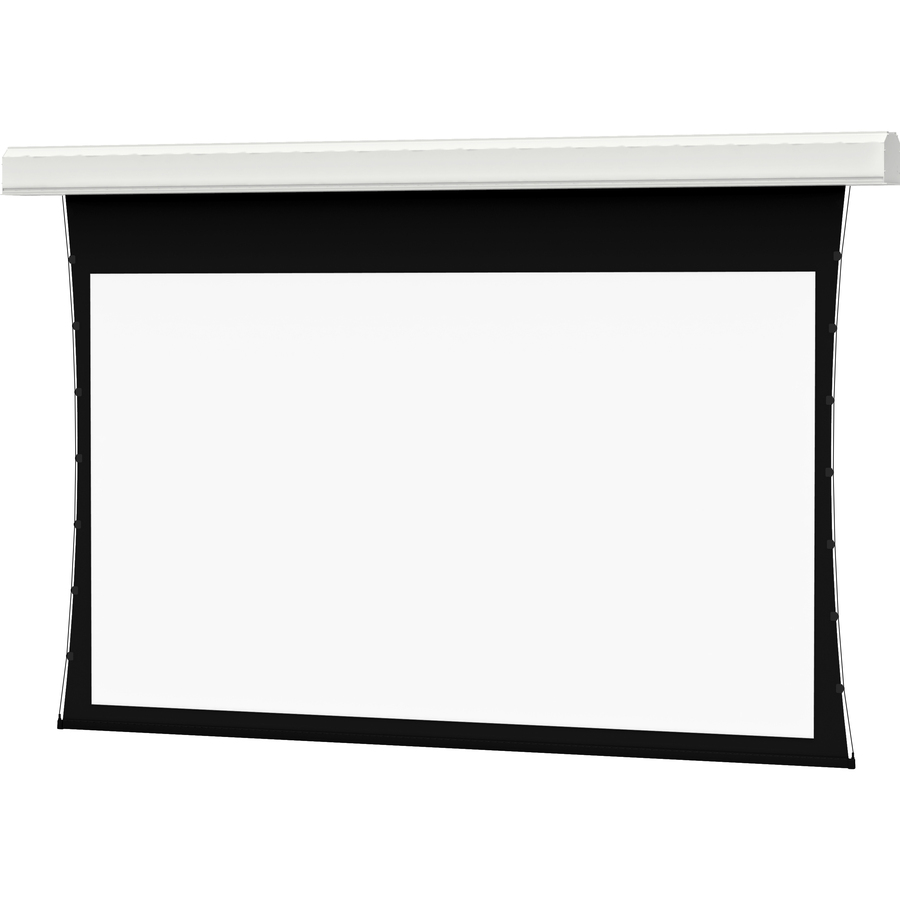

Da-Lite 29892 ADV DLX TNSD 247D PRLX STR 1.0 0

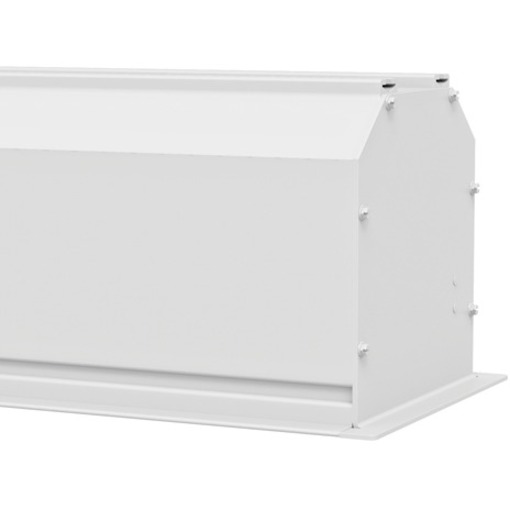

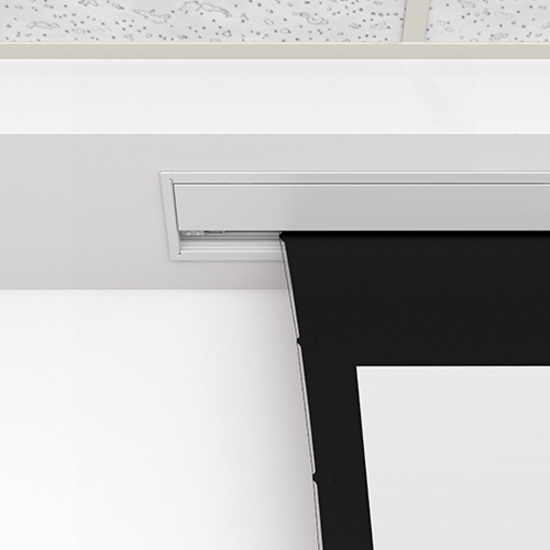

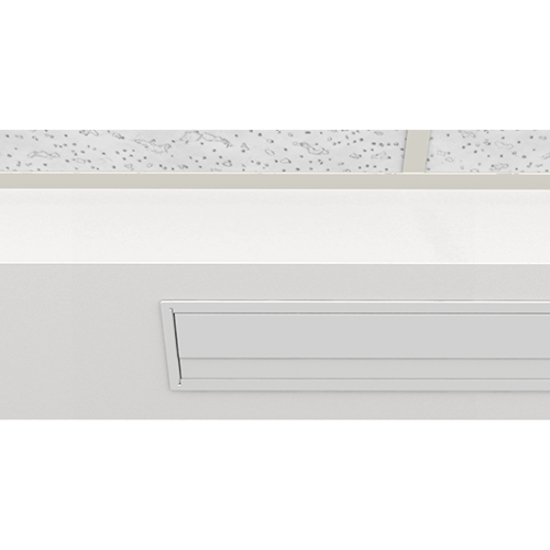

For larger venue installs, the Tensioned Large Advantage® Deluxe Electrol® is designed to eliminate the extra step of finishing the screen with trim. The Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling. Tensioned screens ensure the smoothest surface possible, and all Deluxe screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic. The screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.

General Information
Manufacturer	Legrand Group
Manufacturer Part Number	29892
Manufacturer Website Address	http://www.legrand.us
Brand Name	Da-Lite
Product Line	Tensioned Large Advantage Deluxe Electrol
Product Name	Tensioned Large Advantage Deluxe Electrol Projection Screen
Product Type	Projection Screen
Technical Information
Diagonal Image Size	247"
Screen Height	121"
Screen Width	216"
Screen Fabric	Parallax Stratos 1.0
Aspect Ratio	16:9
Screen Folding Mechanism	Electric
Physical Characteristics
Mount Type	Ceiling Mount
Miscellaneous
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Certification	GREENGUARD Gold
Warranty
Limited Warranty	5 Year
