B+B SmartWorx/Advantech

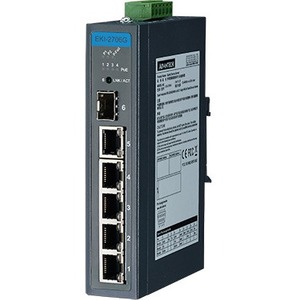

B+B SmartWorx/Advantech EKI-2706G-1GFPI-BE 5GE+1G SFP UNMANAGED IND POE SWITCH WIDE TEMP
Mfg Part Number: EKI-2706G-1GFPI-BE , Item #: 4135402
, PO and Wire.
The EKI-2706 series support 48VDC redundant power input and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The EKI-2706 series support up to 4-port IEEE 802.3 af/at PoE /PoE ports, it is more convenient for users to power up their devices. Each port of EKI-2706 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2706 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | EKI-2706G-1GFPI-BE |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Series | EKI-2706 |
| Product Model | EKI-2706G-1GFPI |
| Product Name | EKI-2706G-1GFPI Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Modular | Yes |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 60 W |
| Power Source | PoE |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 2 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Form Factor | DIN Rail Mountable |
| Height | 5.5" |
| Width | 1.2" |
| Depth | 3.7" |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
