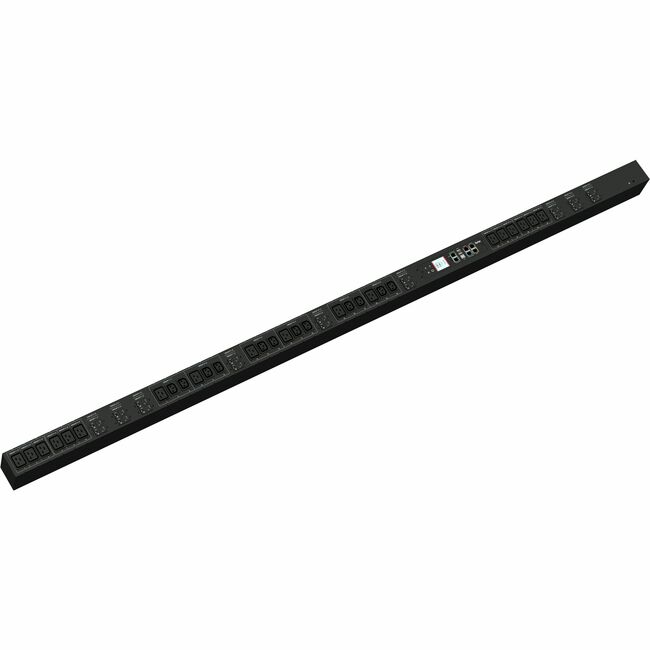

RARITAN PX3-4700YU-V2 3PH 400V 100A 12 C13 18 C19 AC TERM
Mfg Part Number: PX3-4700YU-V2 , Item #: 3809165
Image may not reflect the actual item.
Price: $4,121.07
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 22, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-4700YU-V2 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-4700YU-V2 |
| Product Name | PX3-4700YU-V2 30-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered-by-Outlet |
| Phase | Three Phase |
| Plug/Connector Type | AC Terminal |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 18 x IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C12 |
| Protection Type | Branch Circuit |
| Protection Type | Overload Protection |
| Locking Receptacles | SecureLock |
| Features | LCD Display |
| Features | Onboard Display |
| Load Capacity (VA) | 57.50 W |
| Power Description | |
| Input Voltage | 415 V AC |
| Input Voltage Range | 380 V AC - 415 V AC |
| Output Voltage | 230 V AC |
| Output Voltage Range | 220 V AC - 240 V AC |
| Power Rating (VA) | 57.50 kVA |
| Input Current | 80 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Management | |
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Other |
| Product Color | Black Powder Coat |
| Mount Type | Button Mount |
| Mount Type | Rack-mountable |
| Height | 79.9" |
| Width | 2.8" |
| Depth | 3.5" |
| Weight (Approximate) | 26.46 lb |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
