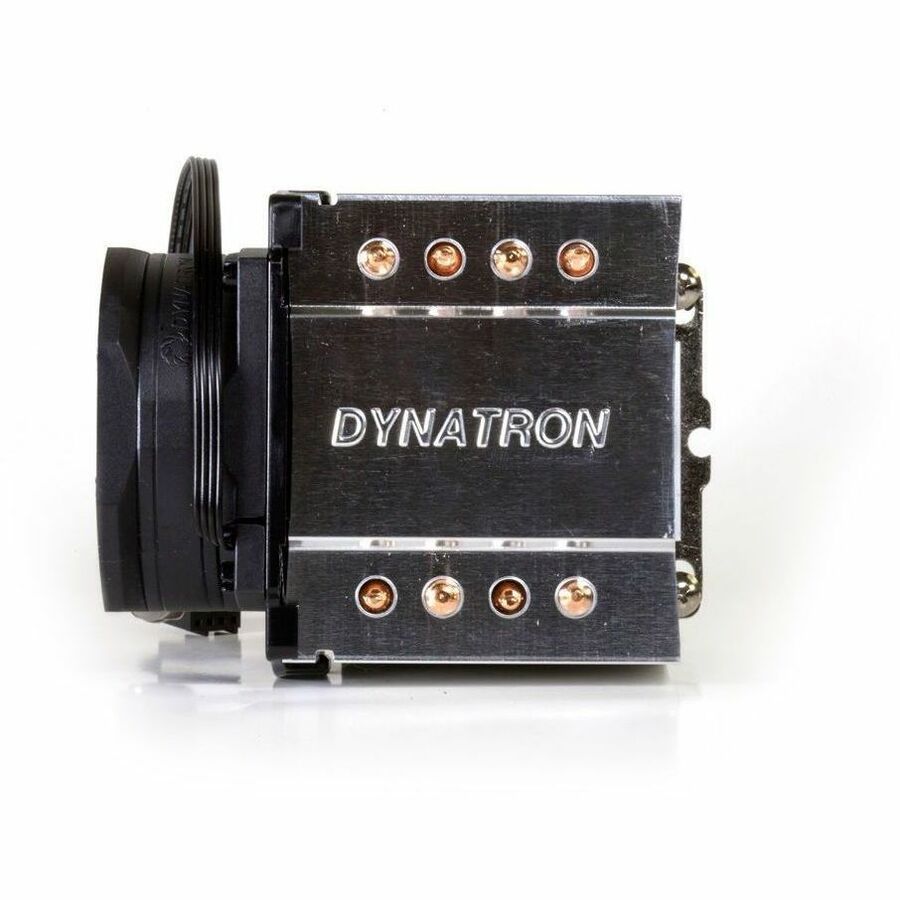

Dynatron A24 Recommend for AMD Processor, Socket AM4. New innovation 60x60x28mm PWM fan, Aluminum fins with heatpipe directly contact CPU up to TDP 105 Watts for 2U Server & Up.

Specifications

• Mfr Part Number: A24
• Feature:

  • ​Supports AMD Socket AM4 CPU

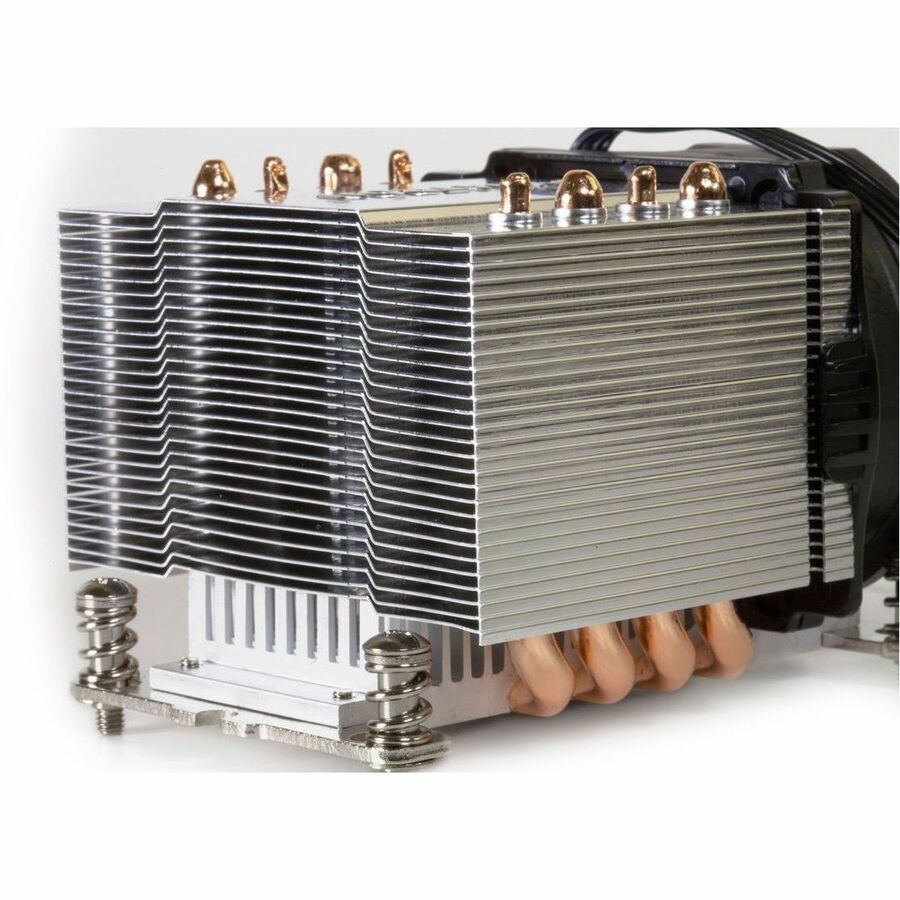

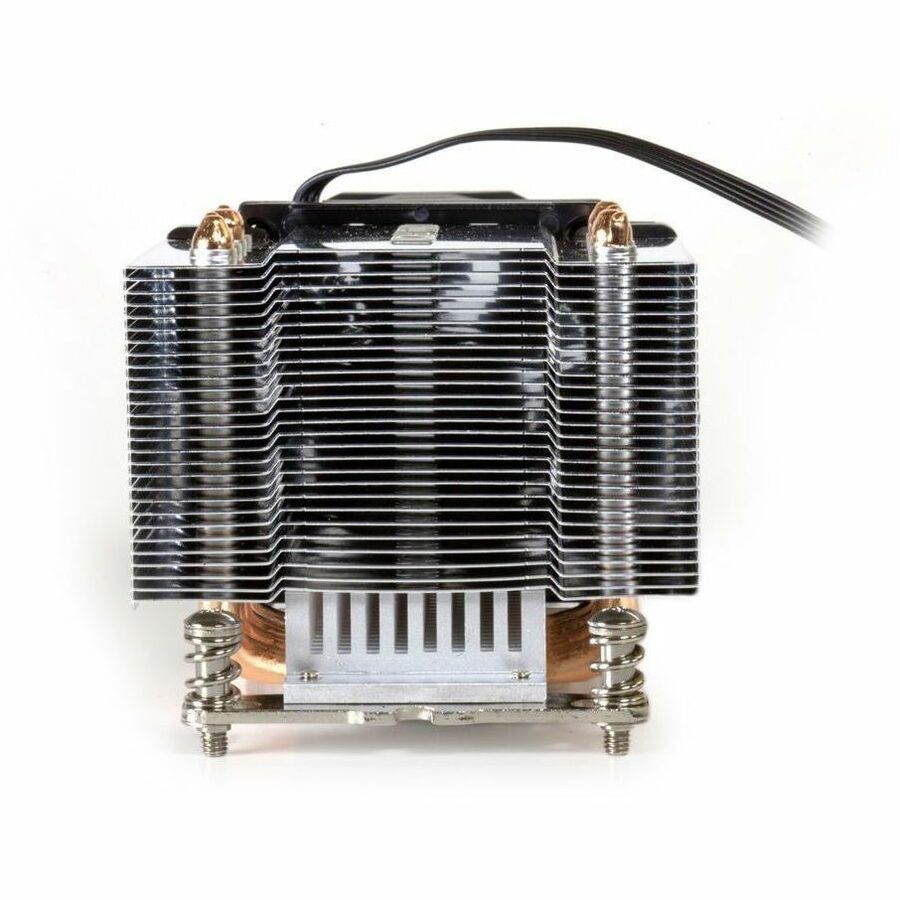

  • Aluminum Stacked Fin with heat Pipes

  • 4-pin PWM Controlled Fan

  • Supports up to TDP 95 Watts

  • Recommended for 2U Server and up
• CPU Support : AMD

• CPU Socket : AM4

• Solution : 2U Server and Up

• Dimensions : 107 x 78 x 67 mm

• Weight : 400 g

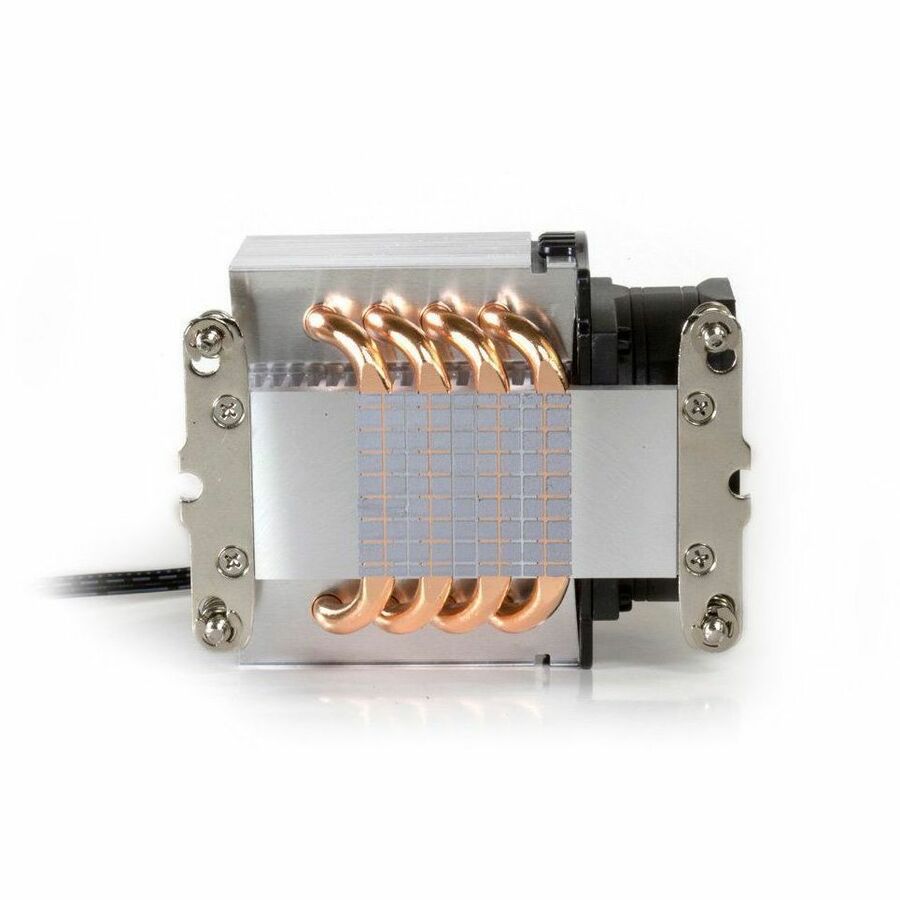

• Material : Aluminum Stacked Fin with Heat Pipes directly contact CPU

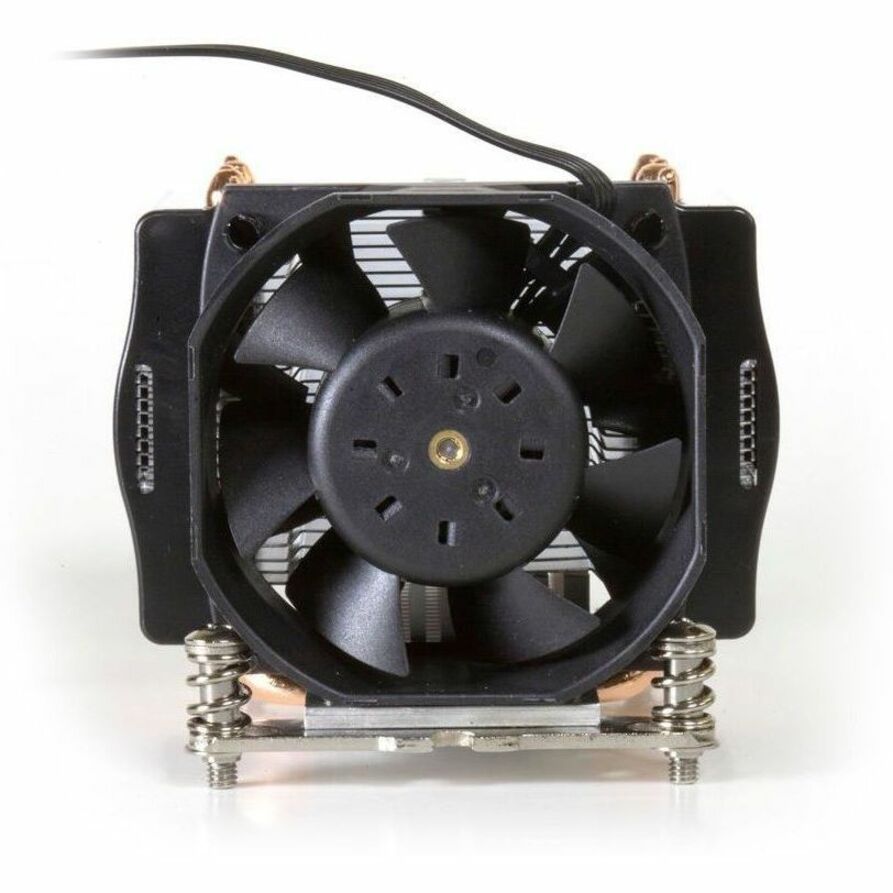

• Fan Dimension : 60 x 60 x 28 mm

• Speed :

  • At Duty Cycle 20%: 1500±10% RPM

  • At Duty Cycle 50%: 3500±10% RPM

  • At Duty Cycle 100%: 7000 RPM

• Bearing : Double-Ball

• Rated Voltage : 12V

• Power :

  • At Duty Cycle 20%: 0.6 W

  • At Duty Cycle 50%: 2.16 W

  • At Duty Cycle 100%: 7.2 W

• AIr Flow :

  • At Duty Cycle 20%: 8.8 CFM

  • At Duty Cycle 50%: 20.3 CFM

  • At Duty Cycle 100%: 40.5 CFM
• Noise Level :

  • At Duty Cycle 20%: 16.0 dBA

  • At Duty Cycle 50%: 32.9 dBA

  • At Duty Cycle 100%: 47.5 dBA

• Air Pressure :

  • At Duty Cycle 20%: 0.7 mm-H2O

  • At Duty Cycle 50%: 3.6 mm-H2O

  • At Duty Cycle 100%: 14.3 mm-H2O
• Lead Wire Pin Out :

  • Pin1- (-)

  • Pin2- (+)

  • Pin3- (Techometer/Signal output)

  • Pin4- (PWM)
