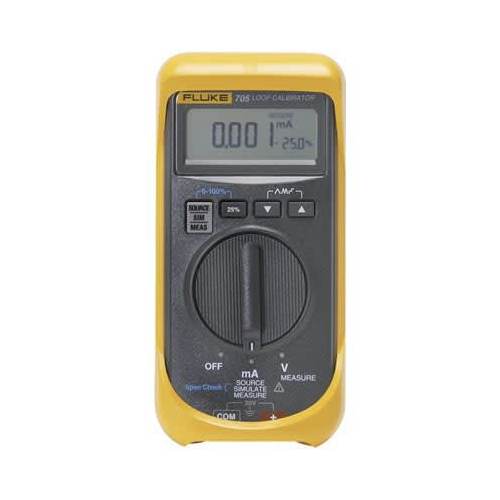

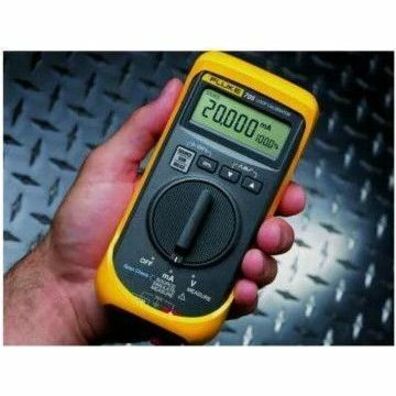

FLUKE-705 Calibrator Loop 0 To 28 VDC 0 To 24 Ma 152 mm CSA Certified

Fluke 705 loop calibrator provides a cost-effective, integrated solution for calibrating milliamp loops

The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:

• mA sourcing, simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure
• 0-28 VDC measurement to check Loop Voltage
• Easy battery exchange without opening the case
• Includes "span check" for fast confirmation of zero and span.
• Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
• Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
• Runs on a single 9 V battery that is easily changed without breaking the calibration seal
• Offers 0 - 20 mA or 4 - 20 mA default start up modes
• Comes with a protective yellow holster with test lead storage and a three year warranty
