I-Star USA BPU-230HD-SILVER FRT COST INCL CONT ISTARUSA 2X5.25 TO 3X3.5 12G RACK SI
Mfg Part Number: BPU-230HD-SILVER , Item #: 3599045
, PO and Wire.
2x 5.25" to 3x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack
- Stylish aluminum color handle and heat-sink body
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Aluminum Design with Conductive Dissipation Grooves
- Power, fan and high temperature LED indicators
- High Performance Transfer Rate up to 12Gb/s
- Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD/SSD
- Equipped with Fan Speed Control Switch
- 14TB Hard Drives Compatible
Product Introduction
Create more space for hard drive with hot-swap capability, BPU-230HD series supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides light weight but strong stability and extra 70mm fan keep hard drive at maximum performance.
High density multi-disk storage backplane that allows multiple 3x3.5" SAS/SATA hard drives to be mounted into 2 standard 5.25". Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD),Security System,SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup
| General Information | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | BPU-230HD-SILVER |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | iStarUSA |
| Product Series | BPU |
| Product Model | BPU-230HD |
| Product Name | BPU-230HD 2x 5.25" to 3x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack |
| Product Type | Drive Enclosure |
| Technical Information | |
| Number of Hard Drives Supported | 3 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 3 |
| Number of Solid State Drive Installed | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of 2.5"/3.5" Bays | 3 |
| Hot Swappable Bays | Yes |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Host Interface | Serial ATA/600 |
| Physical Characteristics | |
| Product Color | Silver |
| Product Color | Black |
| Product Material | Aluminum |
| Cooling Fan | Yes |
| Form Factor | Internal |
| Compatible Drive Bay Width | 5.25" |
| Height | 3.4" |
| Width | 5.8" |
| Depth | 8.2" |
| Weight (Approximate) | 3 lb |
| Miscellaneous | |

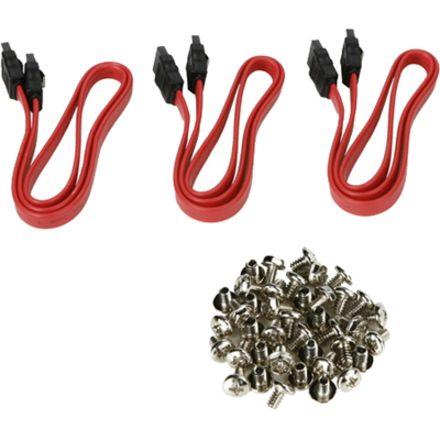

| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
