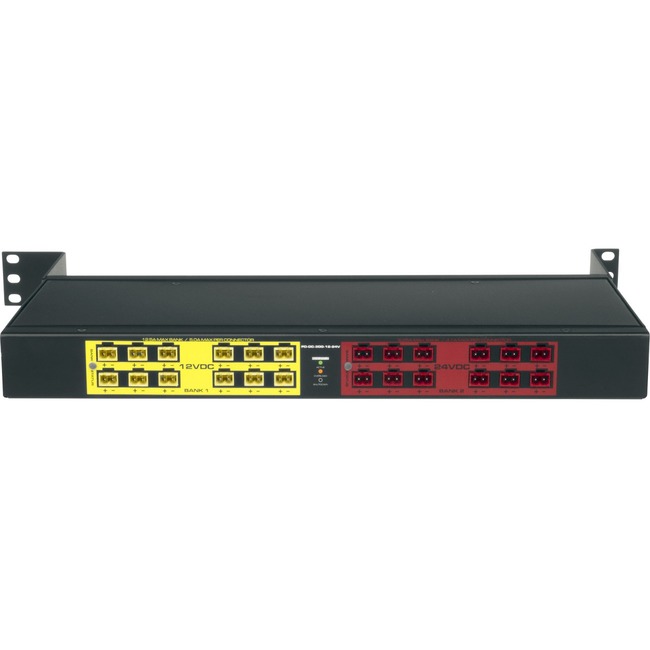

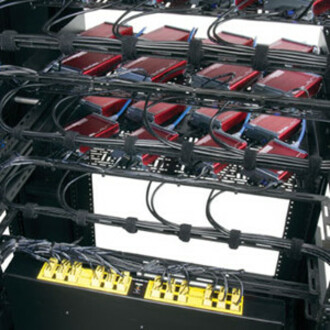

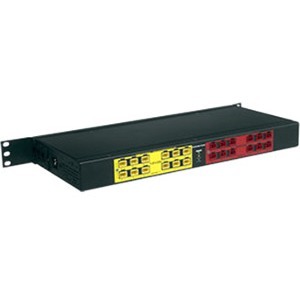

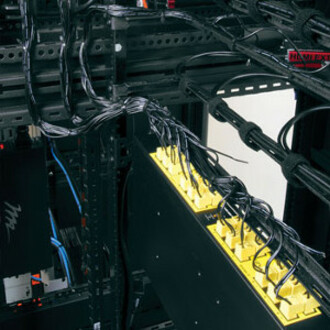

Optimize any installation with the industry-leading power capacity of the fixed voltage, DC Power Distribution line. These solutions not only remove messy, space-consuming, unreliable wall warts and other power clutter from the design, but also provide maximum power to support a multitude of 12V and 24V devices. The 300W unit provides high current capacity to an extensive number of 12V and 24V outputs, maximizing industry standard voltages in a single unit. The multi-mount design can be installed in an available 1RU space or at the back or side of the rack for zero-U mounting, providing ultimate installation flexibility. Promoting enhanced design of system power demands, while still providing a seamless install experience, the 300W DC Power Distribution line is innovatively engineered for multiple applications spanning markets from North America to Europe.
General Information | |
Manufacturer | Legrand Group |
Manufacturer Part Number | PD-DC-300-12-24V |
Manufacturer Website Address | http://www.legrand.us |
Brand Name | Middle Atlantic |
Product Name | 24-Outlets PDU |
Product Type | PDU |
Technical Information | |
Plug/Connector Type | NEMA 5-15P |
Plug/Connector Detail | 1 x NEMA 5-15P |
Receptacle Type | Screw Terminal |
Receptacle Detail | 24 x Screw Terminal |
Protection Type | Surge Protection |
Protection Type | Overload Protection |
Power Description | |
Input Voltage | 120 V AC |
Input Voltage | 230 V AC |
Input Voltage Range | 120 V AC - 230 V AC |
Output Voltage | 12 V DC |
Output Voltage | 24 V DC |
Power Rating (Watt) | 300 W |
Input Current | 12.50 A |
Physical Characteristics | |
Mount Type | Flush-mountable |
Mount Type | Rack-mountable |
Rack Height | 0U/1U |
Height | 1.8" |
Width | 19" |
Depth | 7.3" |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 3 Year |
