HANWHA TECHWIN

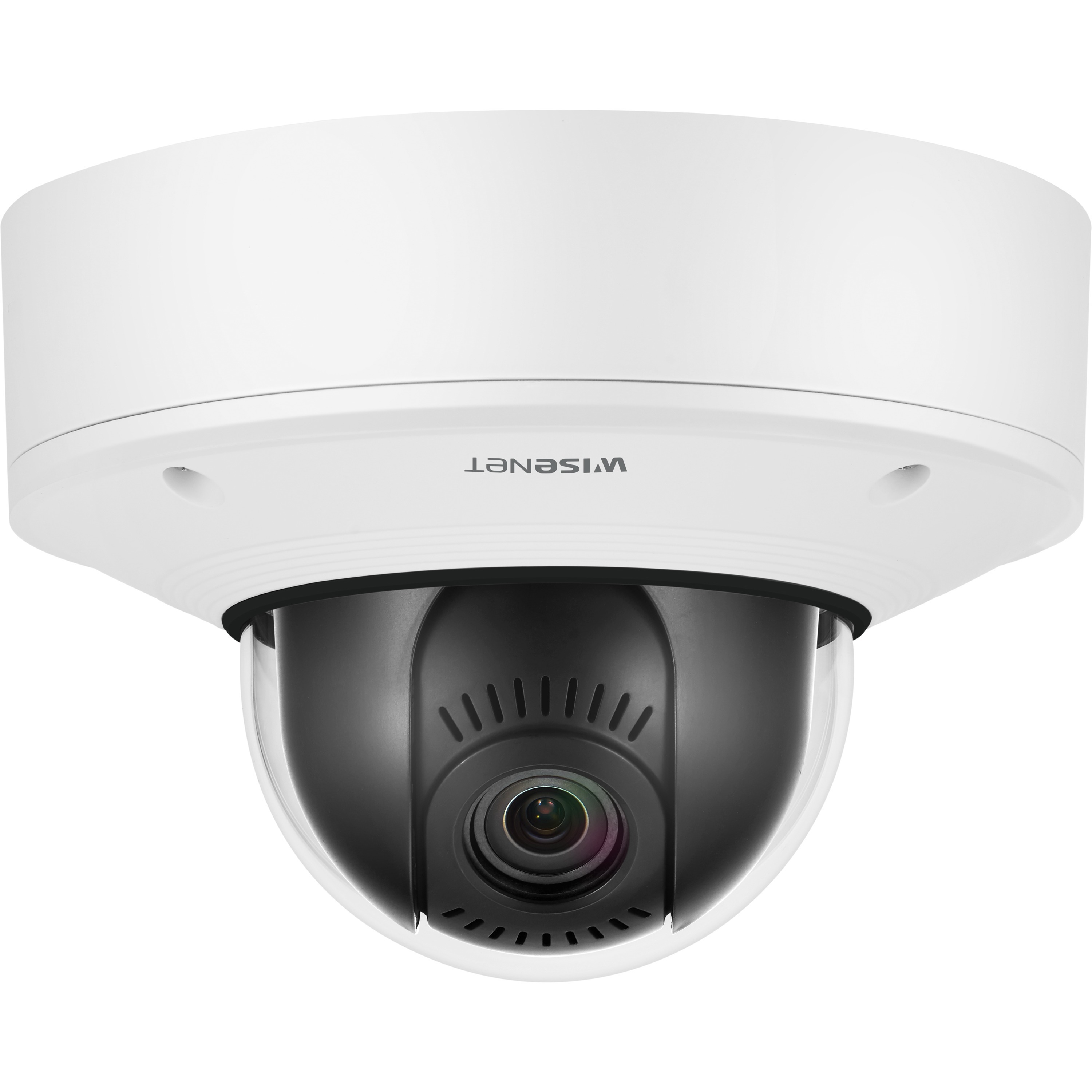

HANWHA TECHWIN XNV-8081Z Wisenet X Plus powered by Wisenet 5 network indoor vandal dome camera
Mfg Part Number: XNV-8081Z , Item #: 3564658
, PO and Wire.
The Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additioanl features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV8081Z |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNV-8081Z |
| Product Name | 5MP Vandal-Resistant Outdoor Network Dome PTRZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Color Supported | Monochrome |
| Field of View | H : 102.5°(Wide)~38.7°(Tele) V : 74.2°(Wide)~29.0°(Tele) D : 135.5°(Wide)~48.6°(Tele) |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 3.60 mm |
| Maximum Focal Length | 9.40 mm |
| Lens Included | Yes |
| Minimum Aperture | f/1.2 |
| Maximum Aperture | f/2.4 |
| Optical Zoom | 2.6x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC |
| Physical Characteristics | |
| Mount Type | Wall Mount |
| Mount Type | Box Mount |
| Mount Type | Roof Mount |
| Mount Type | Parapet Mount |
| Mount Type | Ceiling Mount |
| Mount Type | Pole Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Color Family | White |
| Product Color | White |
| Height | 4.9" |
| Width | 7.1" |
| Diameter | 7.1" |
| Weight (Approximate) | 3.86 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night |
| Features | Defog |
| Features | Wide Dynamic Range |
| Features | Privacy Masking |
| Features | Digital Noise Reduction |
| Features | Audio Compression |
| Features | Gain Control |
| Features | SD Card Local Storage |
| Features | Motion Detection |
| Features | White Balance |
| Indoor/Outdoor | Outdoor |
| Package Contents |
|
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP6K9K |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
Mounting Kits
PARAPET MOUNT ACCESSORY, COMPATIBLE WITH ALL FULL SIZE OUTDOOR PTZS AND ALL CAPS
Back box made to fit SBP-302CM telescopic pendant mount and the extension pipes (SBP-302CM-12 and SBP-302CM-36)
Wall Mount Accessory 2x knock out built-in compatible with all full size outdoor PTZs and all caps Ivory color as well as SBP-300PM pole mount adaptor and SBP-300KM corner mount adaptor
Protective Covers
Black skin cover for outdoor X-Plus series domes XNV-6081xx XNV-8081xx QTY of 3
