ADVANTECH POC-W243LC00D-ACE POC-W243L 23.8 KABY LAKE CELERON 3965U
Mfg Part Number: POC-W243LC00D-ACE , Item #: 3563443
Status: Active
, PO and Wire.

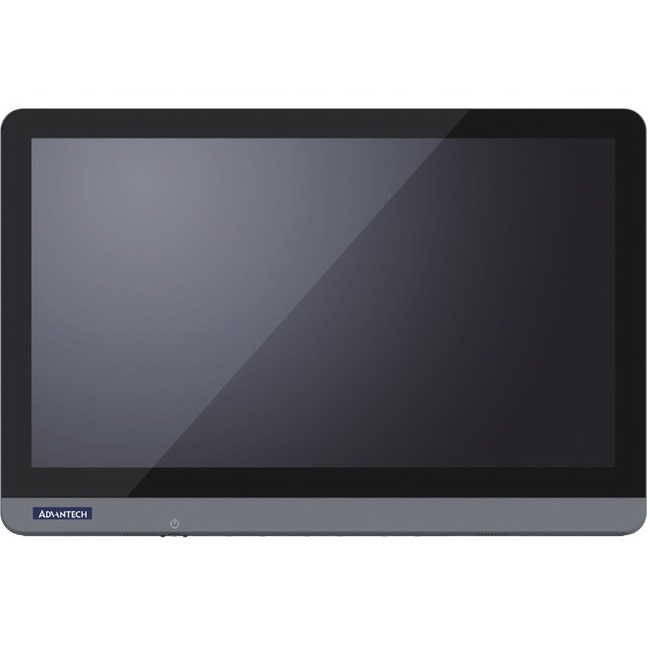

POC-W243L is a 24" Industrial-grade computer with the latest computing capabilities and wide-viewing angles in the slim profile. The system is fanless for quiet operation and energy efficiency. It delivers high-performance with an Intel® Core™ i7/i5 7th generation or Celeron®3965U Dual-Core processor. With IPS (in-place switching) display, customers can experience stunning images from any angle. Even with a 24" display, the entire unit weighs less than 8 kg and has a narrow profile depth of only 7 cm. The point-of-care terminal has rich connectivity profile which supports two USB 3.0& two USB 2.0, and one DP and HDMI. It's also equipped with M.2 slot and one Mini PCIe slots for extension used. This unit is suited to ideal for light applications: nursing care, integrated with lightweight measuring instruments or appliances.
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | POC-W243LC00D-ACE |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | POC-W243L |
| Product Name | 24" Clinical Grade Widescreen Point-of-Care Terminal |
| Product Type | All-in-One Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | 3965U |
| Memory | |
| Standard Memory | 4 GB |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 1 |
| Display & Graphics | |
| Screen Size | 23.8" |
| Screen Mode | Full HD |
| Screen Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports (Rear) | 2 |
| Number of USB 3.0 Ports (Rear) | 2 |
| Number of DisplayPort Outputs (Rear) | 1 |
| DisplayPort (Rear) | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 15.2" |
| Width | 23" |
| Depth | 2.7" |
| Weight (Approximate) | 17.52 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
