MELLANOX MMA1T00-VS TRANS 200GBE UPTO 200GB/S NPI ENGINEERING SAMPLE NCNR
Mfg Part Number: MMA1T00-VS , Item #: 3467478

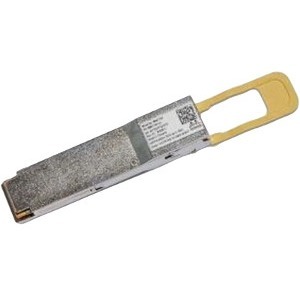

Image may not reflect the actual item.
Price: $1,109.11
+ Free Shipping
Quantity:
In Stock: 27
Last Updated: May 24, 2025
No Sales Tax except these states
, PO and Wire.
Mellanox® MMA1T00-VS transceiver is a 4-channel, pluggable, QSFP56, optical transceiver designed for use in 200GbE Ethernet applications. This module incorporates Mellanox integrated circuit technology in order to provide high performance. The transceiver operates over 4-lane parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is QSFP56 MSA compliant.
The transceiver has a standard SFF-8665 compliant QSFP56 connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO-12 UPC connector. Each channel/fiber operates at signaling rates up to 26.5625 GBd. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
The MMA1T00-VS transceiver has Digital Diagnostic Monitoring functions for supply voltage, temperature, laser bias current, optical transmit and receive levels with associated warning and alarm thresholds.
The MMA1T00-VS transceiver will work with a fiber plant as specified in the QSFP MSA standard.
The transceiver has a standard SFF-8665 compliant QSFP56 connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO-12 UPC connector. Each channel/fiber operates at signaling rates up to 26.5625 GBd. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
The MMA1T00-VS transceiver has Digital Diagnostic Monitoring functions for supply voltage, temperature, laser bias current, optical transmit and receive levels with associated warning and alarm thresholds.
The MMA1T00-VS transceiver will work with a fiber plant as specified in the QSFP MSA standard.
Main Specification
| General Information | |
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MMA1T00-VS |
| Manufacturer Website Address | http://www.nvidia.com |
| Brand Name | Mellanox |
| Product Line | LinkX |
| Product Model | MMA1T00-VS |
| Product Name | 200GbE QSFP56 MMF Transceiver |
| Product Type | QSFP56 |
| Technical Information | |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MPO |
| Interfaces/Ports Details | 1 x MPO 200GBase-SR4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 200 Gigabit Ethernet |
| Network Technology | 200GBase-SR4 |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
