PERLE

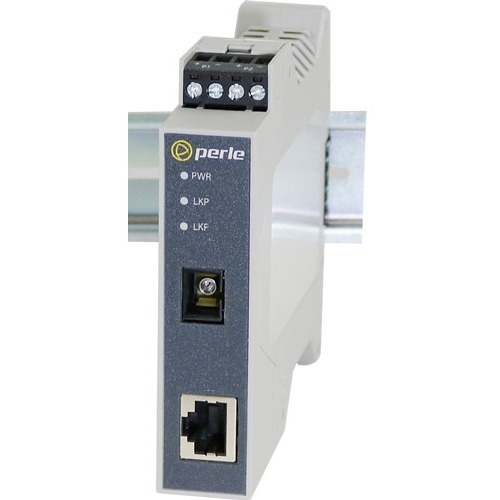

PERLE 05091120 SR-100-SC40U MEDIA CONVERTER 100BASE-TX SINGLE SC 40KM
Mfg Part Number: 05091120 , Item #: 3441477
, PO and Wire.
Perle SR-100 DIN Rail Media Converters transparently connect UTP copper to fiber. These Fast Ethernet Media Converters provide an economical path to:
- extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
- extend the life of non-fiber based equipment by enabling data transmission from 100Base-TX devices over fiber
- extend the distance between two copper-based devices or networks
- protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
Some SR-100 Media Converters are also available with an SFP slot or support for -40C to +75C (-40F to +167F) extended operating temperatures.
Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SR-100 Fast Ethernet Media Converters the smart choice for IT professionals.
| General Information | |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05091120 |
| Manufacturer Website Address | http://www.perle.com |
| Brand Name | Perle |
| Product Series | SR-100 |
| Product Model | SR-100-SC40U |
| Product Name | SR-100-SC40U Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 40 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-BX-U |
| Network Technology | 100Base-BX |
| Network Technology | 100Base-TX |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 0.9" |
| Width | 4.5" |
| Depth | 3.9" |
| Weight (Approximate) | 4.23 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
