RARITAN

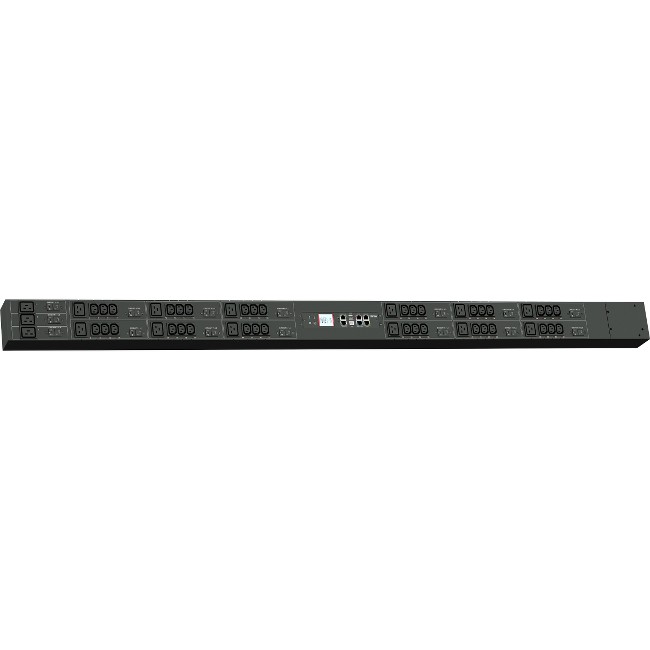

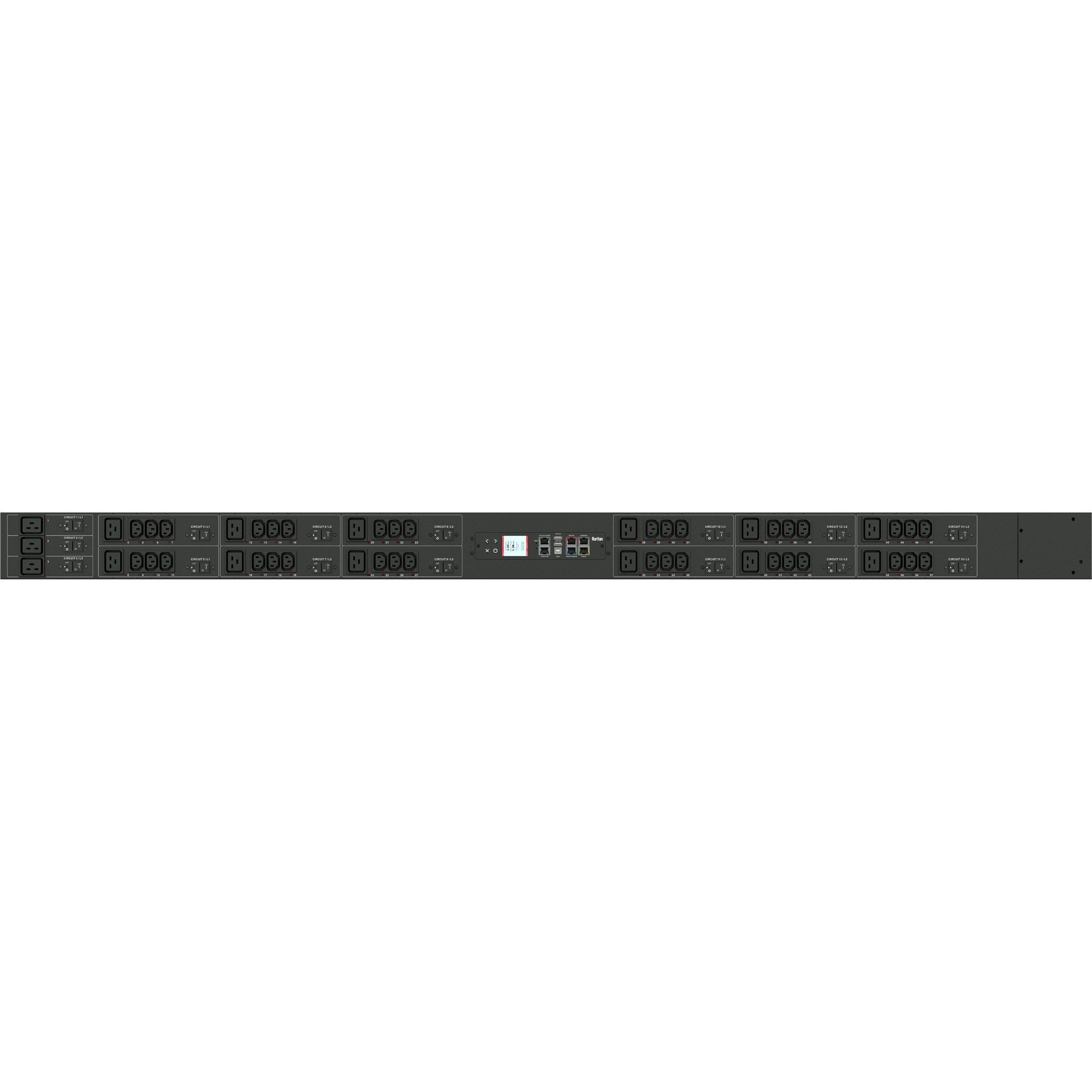

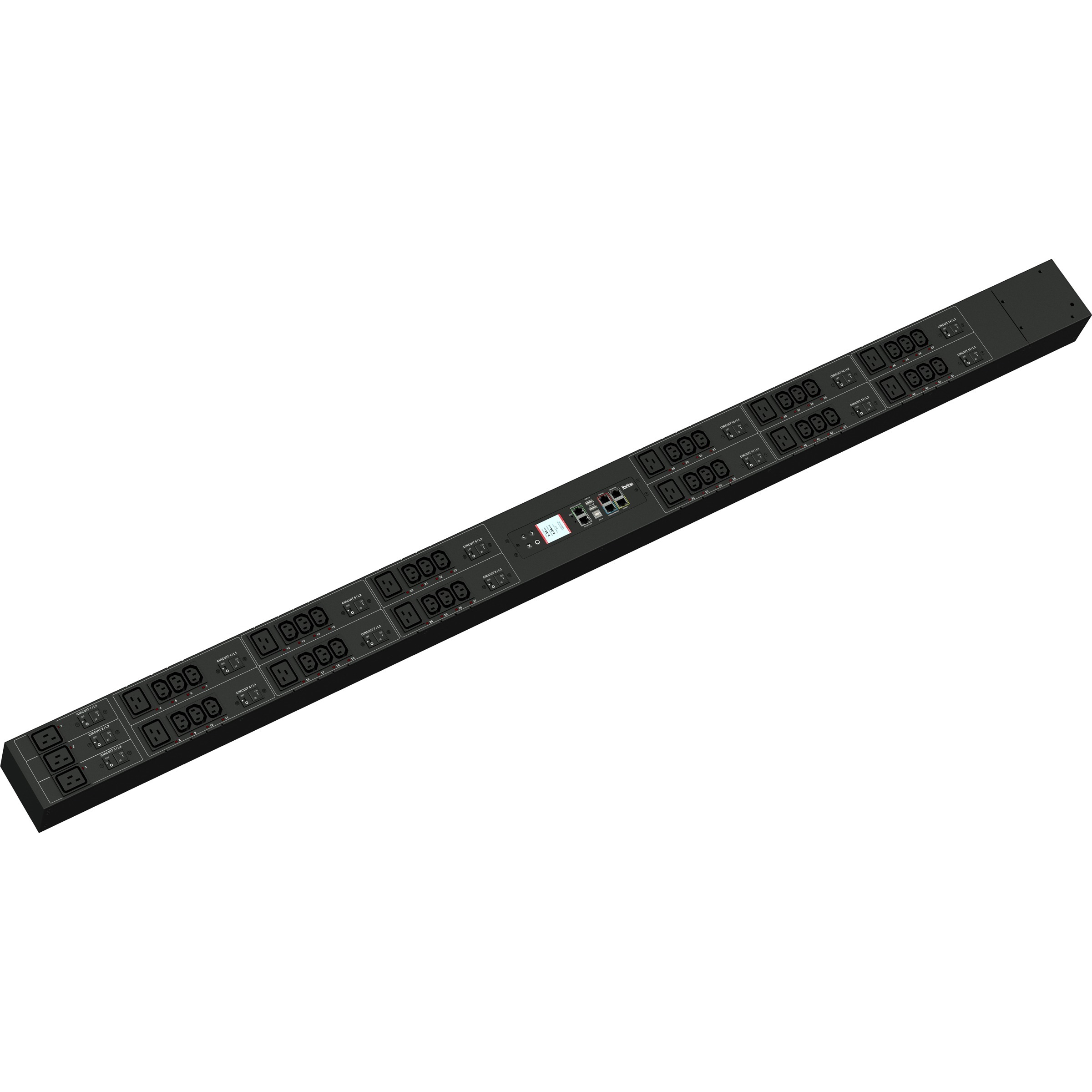

RARITAN PX3-4068YV-V2 3 PH WYE 415V 80A 36XC13 12XC19 TERMINAL 57.5KVA 0U
Mfg Part Number: PX3-4068YV-V2 , Item #: 2959357
, PO and Wire.
SMARTER RACK POWER DISTRIBUTION
Raritan's PX intelligent rack PDU Series offers more than just power distribution-it's a launch pad for real-time remote power monitoring, environmental sensors, and data center infrastructure management. The PX Series offers hundreds of models with options including outlet switching, individual outlet metering, high power, and 400V three-phase power distribution. Have certain off-the-shelf models delivered in only a few days, or have PDUs purpose-built to meet the needs of your unique application. See for yourself why 9 of the top 10 Fortune 500 technology companies trust PX intelligent PDUs.
XERUS™ TECHNOLOGY PLATFORM: RAISING THE BAR
Forming the backbone of all Raritan power products, Xerus comprises an extremely reliable, battle-tested, and ultra-secure hardware and software technology platform that integrates over 30 years of data center management expertise into every PDU. Developed and maintained by our team of technology experts, Xerus provides an open and flexible architecture collecting data, alarming, and communicating to operators and infrastructure software systems. With plenty of power under the hood, Xerus can uniquely deliver new and advanced capabilities to every Raritan PDU deployed-not only today, but far into your data center's future.
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-4068YV-V2 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX |
| Product Name | PX 51-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60309 C19 |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Receptacle Detail | 15 x IEC 60309 C19 |
| Protection Type | Overcurrent Protection |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 415 V AC |
| Output Voltage | 230 V AC |
| Power Rating (VA) | 57.50 kVA |
| Input Current | 80 A |
| Management | |
| Management |
|
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70.1" |
| Width | 4.3" |
| Depth | 3.1" |
| Weight (Approximate) | 21.61 lb |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
