PERLE

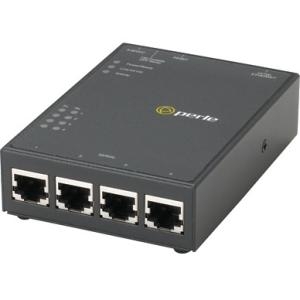

PERLE 04031920 IOLAN STG4 P POE DEVICE SVR 4XRJ45 RS232 POE 10/100/1000
Mfg Part Number: 04031920 , Item #: 2942752
Image may not reflect the actual item.
Price: $1,046.39
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 05, 2025
No Sales Tax except these states
, PO and Wire.
Engineers and Project Managers that require a cost effective power over Ethernet powered 4 port serial RS232-to-Ethernet solution that maintains serial device protocol integrity across Ethernet must consider the IOLAN STS4-P. Having the highest performance processor available along with the Perle's unique TrueSerialTM technology, the IOLAN STS4-P will provide the most authentic serial connections across Ethernet.
Ideal for
- Engineers and Project Managers requiring a high performance serial to Ethernet interface for up to 4 serial RS232 based devices. Connect to serial based applications over Ethernet
- IT Professionals requiring a cost-effective 4 port terminal server or serial console server for out of band management of IT equipment located in smaller data centers or remote sites
- Organizations that need to deploy equipment in locations that are difficult or too costly to have separate AC power installed such as ceilings, walls and kiosks
Why the IOLAN STS4 P Terminal Server is the preferred choice:
- High performance processors for the best throughput available. Ideal for time sensitive applications
- Compact size offers the smallest 4 port serial to Ethernet solution on the market
- Fully compliant with 802.3af PoE compliant power sources ( data or unused Ethernet pins )
- Next Generation IP support (IPv6) for investment protection and network compatibility
- TrueSerial™ packet technology - the most authentic serial connections across Ethernet ensures serial protocol integrity
- Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
- EasyPort Web - Access equipment serial console ports by using your java-enabled Internet browser
- TruePort - Perle's com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
- Clustering - Provides a single view of all out of band console ports. Ideal for large data centers
- FIPS 140-2 - Cryptographic modules meet US Government NIST compliancy
- Dynamic DNS - Easy console management access from anywhere on the Internet
- Intelligent Power cycling of equipment with Perle Remote Power Switches
- Java-free browser access to remote serial console ports via Telnet and SSH
- Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
- Lifetime warranty - best investment protection available
Main Specification
| General Information | |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 04031920 |
| Manufacturer Website Address | http://www.perle.com |
| Brand Name | Perle |
| Product Line | IOLAN |
| Product Series | STS |
| Product Model | STS4P GR |
| Product Name | IOLAN STS4P GR PoE Secure Device Server |
| Product Type | Device Server |
| Processor & Chipset | |
| Processor Speed | 600 MHz |
| Memory | |
| Standard Memory | 512 MB |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 4 |
| Power Description | |
| Input Voltage | 24 V DC |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Form Factor | Wall Mountable |
| Height | 1.1" |
| Width | 4.4" |
| Depth | 3.2" |
| Weight (Approximate) | 12.35 oz |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | Emissions:
Immunity:
Safety:
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
Connector Adapters
Miscellaneous Kits
Mounting Kits
