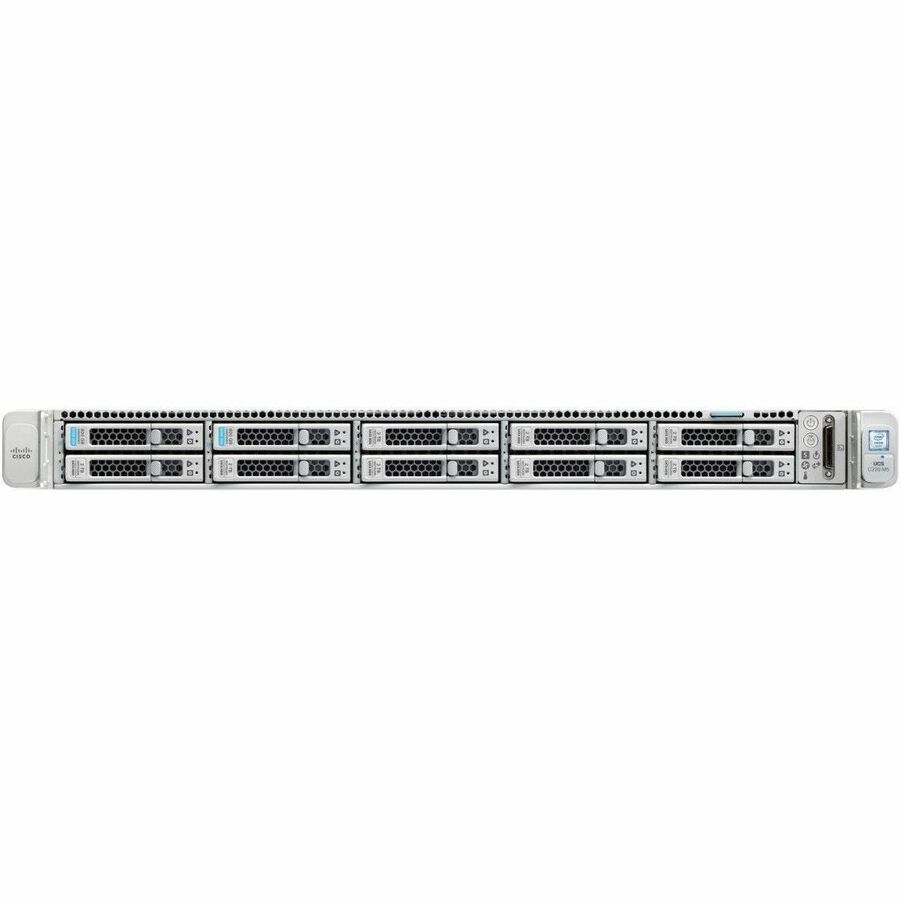

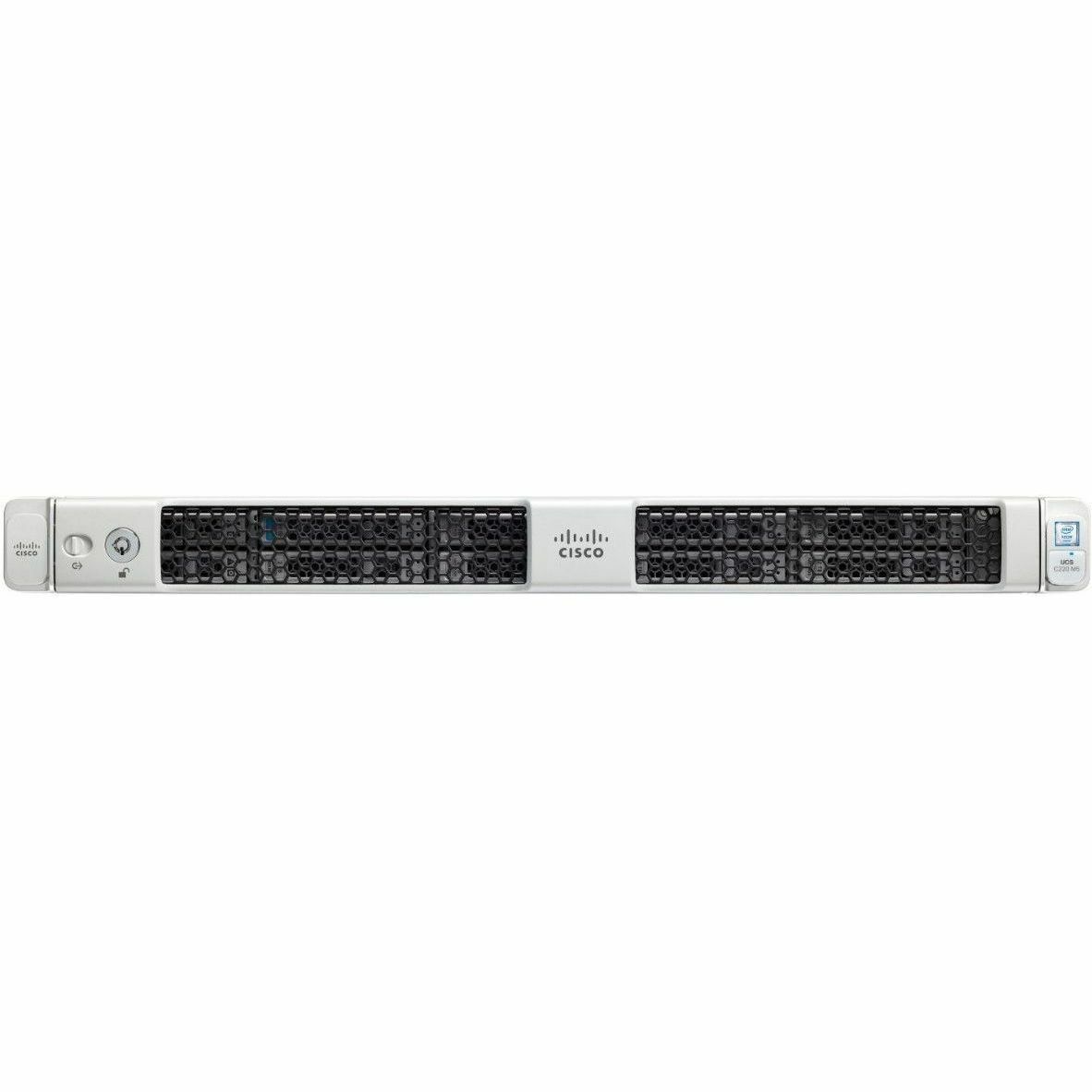

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSSPC220M5A2 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | C220 M5 |
| Product Name | UCS C220 M5 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Gold |
| Processor Generation | 2nd Gen |
| Processor Model | 6132 |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Speed | 2.60 GHz |
| Cache | 19.25 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Standard Memory | 192 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Error Checking | ECC |
| Total Number of Memory Slots | 24 |
| Number of Occupied Memory Slots | 6 |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial ATA |
| Controller Type | 12Gb/s SAS |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Number of Internal 2.5" Bays | 10 |
| Number of SFF Bays | 10 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express x16 (Gen 3.x) Slots | 2 |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Graphics Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | Cisco Integrated Management Controller (CIMC) |
| Operating System | |
| Operating System Supported | Windows Server 2019 Standard |
| Operating System Supported | Windows Server 2022 Datacenter |
| Operating System Supported | Red Hat Enterprise Linux |
| Operating System Supported | Windows Server 2022 Standard |
| Operating System Supported | SuSE Linux Enterprise Server |
| Operating System Supported | Windows Server 2019 Datacenter |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Plug/Connector Type | C13 |
| Hot Swappable Power Supply | Yes |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 19" |
| Depth | 31" |
| Weight (Approximate) | 59.97 lb |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | |
