SUPERMICRO

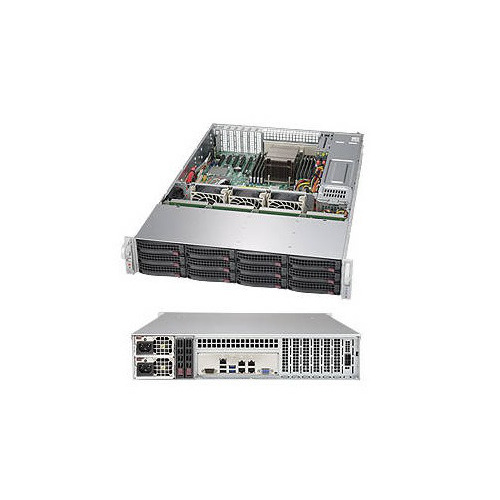

Supermicro SuperStorage Server SSG-6028R-E1CR12L Dual LGA2011 920W 2U Rackmount Server Barebone System (Black)

Mfg Part Number:  SSG-6028R-E1CR12L
Image may not reflect the actual item.
Price: $2,522.70 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Dec 26, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Supermicro Computer, Inc
Manufacturer Part Number SSG-6028R-E1CR12L
Manufacturer Website Address http://www.supermicro.com
Brand Name Supermicro
Product Line SuperStorage
Product Model 6028R-E1CR12L
Product Name SuperStorage 6028R-E1CR12L Barebone System
Product Type Server Barebone System
Processor
Number of Processors Supported 2
Processor Socket Socket R3 LGA-2011
Processor Supported Xeon
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model C612
Memory
Maximum Memory Supported 2 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2400/PC4-19200
Storage
Supported Storage Drive Interfaces PCI Express
Supported Storage Drive Interfaces Serial ATA III
Supported Storage Drive Interfaces SAS-3
Supported Storage Drive Types SSD
Controllers
Controller Type 12Gb/s SAS
Controller Type NVMe
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 10
Display & Graphics
Graphics Controller Model AST2400
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays 12
Number of 3.5" Bays 12
Total Number of Expansion Slots 7
Number of PCI Express x8 Slots 6
Number of PCI Express x16 Slots 1
Interfaces/Ports
Total Number of USB Ports 5
Number of USB 3.0 Ports 2
Number of Serial Ports 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 3
Number of VGA Ports 1
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 920 W
Frequency 60 Hz
Frequency 50 Hz
Physical Characteristics
Color Family Black
Product Color Black
Form Factor Rack-mountable
Rack Height 2U
Height 3.5"
Width 17.2"
Depth 25.6"
Weight (Approximate) 34 lb
Miscellaneous
Package Contents
  • SuperStorage 6028R-E1CR12L Barebone System
  • 1 x Super X10DRH-iT Motherboard
  • 1 x 2U Chassis
  • 1 x 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
  • 4 x MINI SAS HD,12G,INT,50CM,30AWG
  • 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
  • 1 x STD I/O shield for X9 socket R server MB with Gasket.
  • 2 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
  • 2 x 920W 1U Redundant PWS W/ Quiet Mode
  • 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
  • 12 x Black 3.5" HDD tray
  • 1 x LSI 3008 based SAS3 HBA, 12Gb, 8 internal ports, 122HDD, Gen3 x8 Standard Low Profile
  • 1 x 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Supermicro provides a three-year warranty for labor and one-year warranty for parts.
