MIMO MONITORS
MIMO MONITORS 7IN LCD CAP TOUCH 1024X600 700:1 UM-760C-OF USB OPEN FRAME
Mfg Part Number: UM-760C-OF , Item #: 2606622
, PO and Wire.

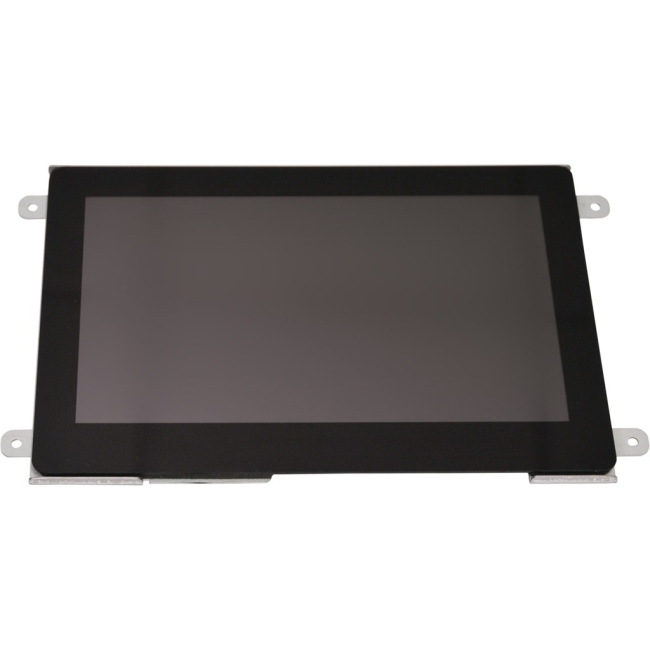

Open Frame 7" USB Capacitive Touch Screen Monitor
The UM-760C-OF/UM-760CH-OF adds Capacitive touch to the 7" line of open frame displays. The UM-760C-OF/UM-760CH-OF is a 7" small capacitive open frame touchscreen monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but now with the responsiveness of a 5 point multi-touch capacitive touchscreen all in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The screen can display in either landscape or portrait orientations. The UM-760C-OF/UM-760CH-OF open frame touchscreen monitor is designed to provide the most cost effective solutions for consumer, retail POS, and hospitality markets.
Available in Single Cable USB Video
Utilizing the same single cable USB display technology as our line of displays, the UM-760C-OF sends video, touch, and power over a single USB connection.
And now available with HDMI
Now optionally available with the ubiquitous HDMI input for video. Previously only available with the convenience of single cable USB video, the UM-760CH-OF from Mimo Monitors now offers HDMI to supplement where USB video is not supported or inconvenient. With the HID compliant touch screen plus HDMI video, the new UM-760CH-OF can be installed to almost any platform without drivers.
Uniquely, this new monitor line still reduces number of cables. While a typical HDMI touch display will require 3 separate cables, the new HDMI touch displays from Mimo Monitors only require 2 cables. This simplifies connection, and makes for a more attractive installation.
| General Information | |
| Manufacturer | Mimo Monitors, Inc |
| Manufacturer Part Number | UM-760C-OF |
| Manufacturer Website Address | http://www.mimomonitors.com |
| Brand Name | Mimo Monitors |
| Product Series | UM-760 |
| Product Model | UM-760C-OF |
| Product Name | 7" Open Frame USB Capacitive Touch Screen Monitor - UM-760C-OF |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 7" |
| Viewable Screen Size | 7" |
| Screen Mode | WSVGA |
| Response Time | 15 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 150° |
| Vertical Viewing Angle | 145° |
| Mount Type | Rear Mount |
| Backlight Technology | LED |
| Video | |
| Maximum Resolution | 1024 x 600 |
| Color Supported | 262,144 Colors |
| Contrast Ratio | 700:1 |
| Native Contrast Ratio | 700:1 |
| Brightness | 250 Nit |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Capacitive |
| Multi-touch Screen | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Height | 4.9" |
| Width | 7.6" |
| Depth | 0.4" |
| Miscellaneous | |
| Country of Origin | South Korea |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
