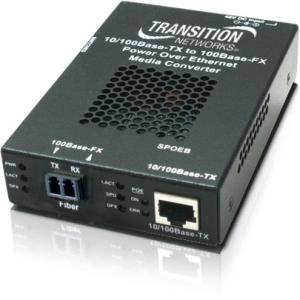

SPOEB1013-105-NA Transition Networks Stand-alone Fast Ethernet PoE Media Converter
Mfg Part Number: SPOEB1013-105-NA , Item #: 2410635
Image may not reflect the actual item.
Price: $344.99
+ Free Shipping
Quantity:
In Stock: 7
Last Updated: Jul 28, 2025
No Sales Tax except these states
, PO and Wire.
SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection.
Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with
-48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input.
This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities.
In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.)
The PoE converter is fully compatible with devices that comply with the IEEE
802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with
-48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input.
This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities.
In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.)
The PoE converter is fully compatible with devices that comply with the IEEE
802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI.
Main Specification
| General Information | |
| Manufacturer | Transition Networks, Inc |
| Manufacturer Part Number | SPOEB1013-105-NA |
| Manufacturer Website Address | http://www.transition.com |
| Brand Name | Transition Networks |
| Product Model | SPOEB10xx-105 |
| Product Name | Stand-alone Fast Ethernet PoE Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 2 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX |
| Network Technology | 10/100Base-TX |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
