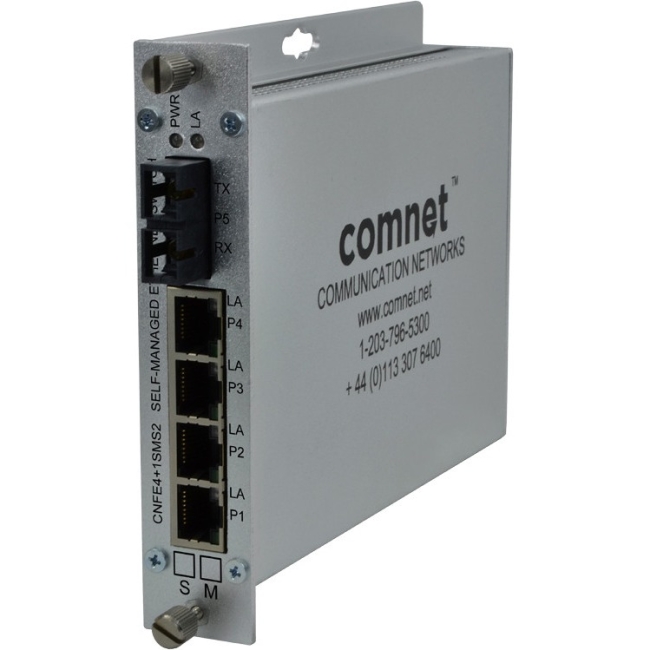

CNFE4+1SMSS2 ComNet 10/100 4TX+1FX Ethernet Self-Managed Switch

The ComNet™ CNFE4+1SMS(M,S)2 is a five-port self-managed Ethernet switch with uplink management functionality. It provides 4 ports operating at 10/100 Mbps and is designed to combine Ethernet data from the four electrical ports into a single optical port and forward that data to the next network device, using two-fiber ST or SC optical connectors. There is no programming required to use this switch. The ComNet CNFE4+1SMS comes pre-programmed, preventing network video flooding with a switch selection that allows the fiber port to be used as an uplink or as an unmanaged switch. It is "Plug-and-Play" easy to use. LED indicators confirm the operating status of this device. The ComNet CNFE4+1SMS may be either wall mounted, rack mounted ("ComFit" packaging) or DIN -rail mounted with the use of the ComNet DINBKT1 adapter.

General Information
Manufacturer	ACRE
Manufacturer Part Number	CNFE4+1SMSS2
Manufacturer Website Address	http://www.acre-co.com
Brand Name	ComNet
Product Model	CNFE4+1SMSS2
Product Name	10/100 4TX+1FX Ethernet Self-Managed Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	5
Token Ring Port	No
LRE Port	No
USB	No
Stack Port	No
Number of Network (RJ-45) Ports	4
Number of ST Ports	1
ST Port Type	Duplex
Port/Expansion Slot Details	5 x Fast Ethernet Network
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Fiber Optic Cable Core/Cladding Specification	9/125 µm
Fiber Mode Supported	Single-mode
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX
Network Technology	10/100Base-FX
Network & Communication
Layer Supported	2
Management & Protocols
Manageable	Yes
Reliability
MTBF	100000 Hour
Power Description
PoE (RJ-45) Port	No
Power Source	Power Supply
Physical Characteristics
Form Factor	Desktop
Form Factor	Wall Mountable
Form Factor	Rail-mountable
Form Factor	Rack-mountable
Height	6.1"
Width	1.1"
Depth	5.3"
Miscellaneous
Package Contents	10/100 4TX+1FX Ethernet Self-Managed Switch DC Plug-in Power Supply
Certifications & Standards	CE C-Tick cUL FCC IEEE 802.3
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime
