KRAMER

KRAMER THE WP-580TXR AND WP-580RXR ARE A HIGH-PERFORMANCE, EXTRA RANGE, HDBASET TECHNOL

Mfg Part Number:  WP-580RXR

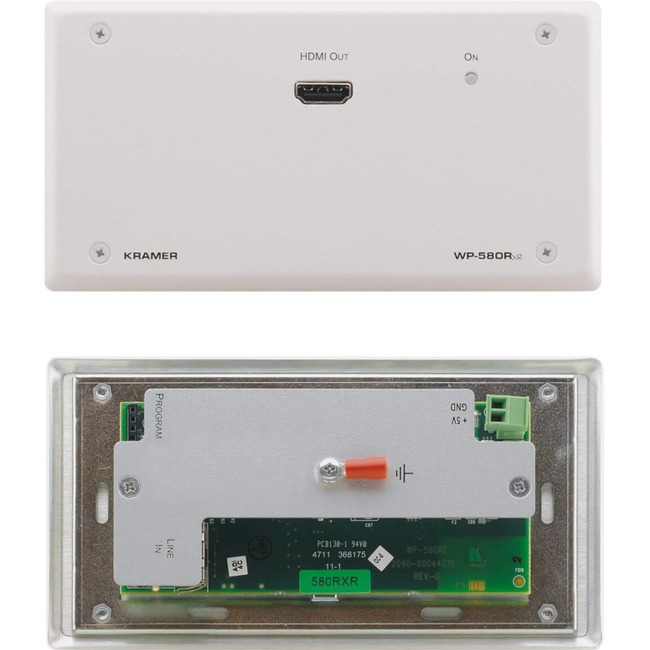

Image may not reflect the actual item.
Price: $365.73 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 05, 2025
No Sales Tax except these states
, PO and Wire.

WP-580Rxr is an extended range, HDBaseT wall plate receiver for 4K@60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. WP-580Rxr receives an HDBaseT twisted pair signal from the WP-580Txr and converts it back into HDMI signals. The WP-580Rxr(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
  • HDTV Compatible.
  • HDCP Compliance.
  • HDBaseT™ Technology.
  • HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • EDID PassThru - Passes EDID signals between the source and display.
  • 2K Support in Normal Mode.
  • System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using recommended Kramer cables
  • Cable - For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/WP-580Rxr.
  • Indicators - Status LEDs for input, output, link and power.

Applications

  • Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
