EMA325-10 Eaton ePDU G3 Managed 38U-C IN: L21-20P 16A 3P OUT: 18xC13:6xC19
Mfg Part Number: EMA325-10 , Item #: 1787773

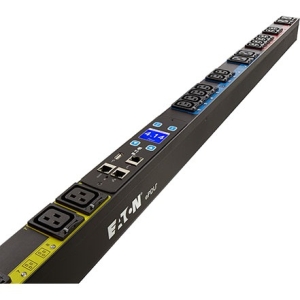

Image may not reflect the actual item.
Price: $2,276.13
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 03, 2025
No Sales Tax except these states
, PO and Wire.
Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
- Outlet switching for on, off and reboot control to reduce management costs
- Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
- LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
- High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
- Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
- IEC outlet grip plug retention secures plugs in place using standard cables
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EMA325-10 |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Eaton |
| Product Line | ePDU |
| Product Name | ePDU 24-Outlet PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA L21-20P |
| Plug/Connector Detail | 1 x NEMA L21-20P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 18 x IEC 60320 C13 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Input Voltage Range | 120 V AC - 208 V AC |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 5760 W |
| Input Current | 16 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Rack Height | 38U |
| Height | 66.5" |
| Width | 2.1" |
| Depth | 2.6" |
| Miscellaneous | |
| Country of Origin | United States |
