Eaton

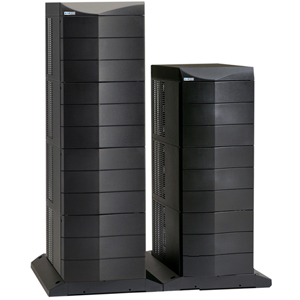

PW6S9K Eaton Powerware PW9170+ 9kVA Scalable 9kVA Tower UPS
Mfg Part Number: PW6S9K , Item #: 166354
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $8,155.95
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Dec 26, 2025
No Sales Tax except these states
, PO and Wire.
With a scaleable, modular and redundant design, the Powerware 9170+ PW6S9K Tower UPS provides advanced backup power and power quality management and offers the highest level of power protection and power quality of any Tower UPS power supply in the 9kVA-9 kVA range.
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PW6S9K |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Eaton |
| Product Name | Powerware PW9170+ 9kVA Scalable 9kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Power Description | |
| Load Capacity (VA) | 9000 VA |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Bypass Switch | Automatic |
| Emergency Power OFF | Yes |
| Interfaces/Ports | |
| Serial Port | Yes |
| Modular Slots | 2 x Communications Slot |
| Battery Information | |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 24 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 33.3" |
| Width | 17" |
| Depth | 26" |
| Weight (Approximate) | 346 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 2 Year |
Reliable on-line, high frequency double conversion power protection that's scalable for midrange IT applications
Features:
Reliability - the Powerware 9170 features N+X redundancy for both power and logic, eliminating the potential system-level single-point-of-failure that competitive models have by having the unit logic reside in the framework.
Scalable-the Powerware 9170 is easily adapted to changing IT environments by simply adding power and/or battery modules.
Redundant-new 24/365 availability needs driven by the new e-business economy have made redundant systems a requirement for nearly all IT installations, regardless of size.
Maximum Availability -true double conversion online design, the proven technology that is used for the most mission-critical applications in the world.
Maximum Efficiency-new Power Saver technology is a user-selectable mode of operation that increases unit operating efficiency to 97%.
Maximum Simplicity-finally a UPS solution that is as easy to install as a PC. Universal components fit in any order without affecting the operation of the system.
Maximum Performance-the Powerware 9170 protects against all nine power problemsEach UPS (PW6S9K) consists of the following parts.
(1) 0650C060AAAAAAAP 6 slot enclosure
(3) ASY-0567 power modules
(6) ASY-0529 battery Modules
(1) ASY-0527 Caster Kit
Features:
Reliability - the Powerware 9170 features N+X redundancy for both power and logic, eliminating the potential system-level single-point-of-failure that competitive models have by having the unit logic reside in the framework.
Scalable-the Powerware 9170 is easily adapted to changing IT environments by simply adding power and/or battery modules.
Redundant-new 24/365 availability needs driven by the new e-business economy have made redundant systems a requirement for nearly all IT installations, regardless of size.
Maximum Availability -true double conversion online design, the proven technology that is used for the most mission-critical applications in the world.
Maximum Efficiency-new Power Saver technology is a user-selectable mode of operation that increases unit operating efficiency to 97%.
Maximum Simplicity-finally a UPS solution that is as easy to install as a PC. Universal components fit in any order without affecting the operation of the system.
Maximum Performance-the Powerware 9170 protects against all nine power problemsEach UPS (PW6S9K) consists of the following parts.
(1) 0650C060AAAAAAAP 6 slot enclosure
(3) ASY-0567 power modules
(6) ASY-0529 battery Modules
(1) ASY-0527 Caster Kit
